Brand Name: | OEM; | Welding Type: | high frequency welding; |
Size: | 250mm,300mm,350mm,400mm,450mm; | Type: | SAW BLADE; |
Advantage: | Imporved efficiency,cutting life and operator safety; | Port: | shanghai,tianjin,ningbo,guangzhou; |
Finishing: | Painted&Polished; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Blade Material: | Diamond Segment &65Mn Steel Body; | Model Number: | Granite B; |
Usage: | Wet; | Packaging Detail: | colour box,double blister,blister card,white box; |
Supply Ability: | 100000 Piece/Pieces per Month; | Place of Origin: | Hebei China; |

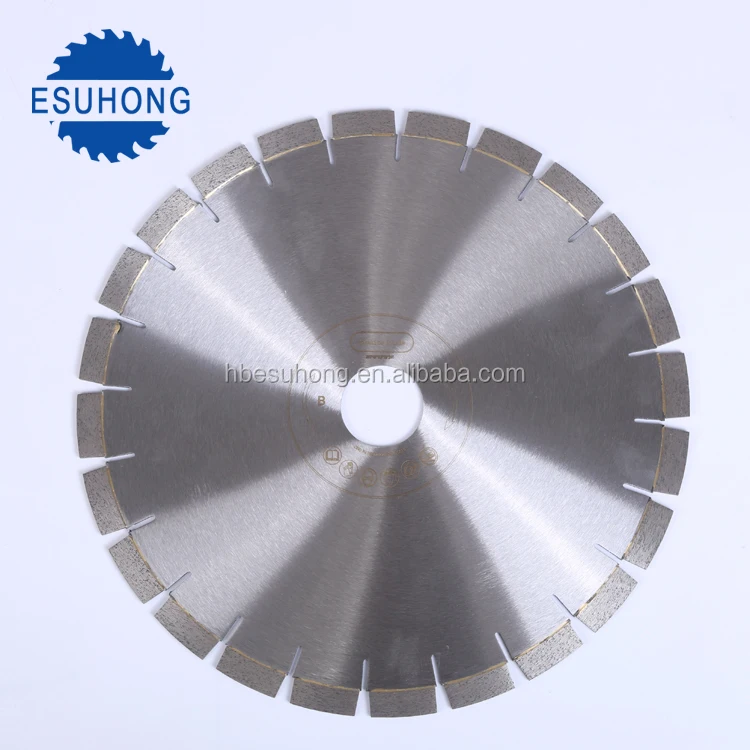

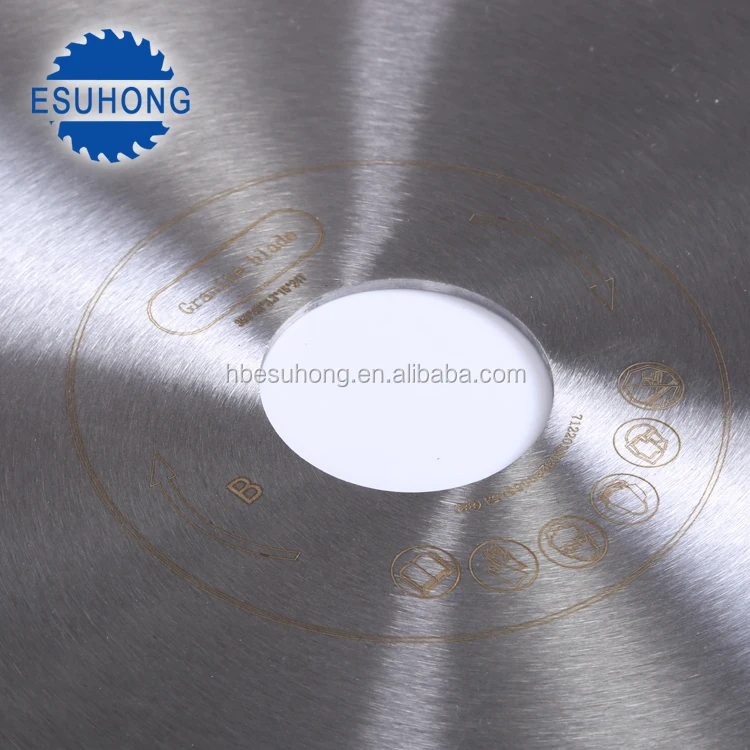

Diamond Saw Blade For Granite Concrete Cutting
Product Attribute
Technology | Welded/ Pressed |
Segment Type | turbo type/ continues rim/ sintered/ other shapes |
Dry or Wet | Wet |
Certificates | ISO, CE, SGS, UKAS, EN13236 |
Advantage | Sharp cutting speed, long life, segments with high strength and feel stable when using. |
Specification
Item No. | Diameter (inch) | Diameter (mm) | Bore (mm) | Segment | Segment | Application |
GAZLB25017 | 10 | 250 | 50/60 | 39*3.2*13 | 17 | Granite |
GAZLB30013 | 12 | 300 | 50/60 | 39*3.2*13 | 21 | |
GAZLB35011 | 14 | 350 | 50/60 | 40*3.3*11 | 24 | |
GAZLB35012 | 14 | 350 | 50/60 | 40*3.2*12 | 24 | |
GAZLB35015 | 14 | 350 | 50/60 | 40*15*3.3 | 24 | |
GAZLB35031 | 14 | 350 | 50/60 | 31*3.3*15 | 30 | |
GAZLB40038 | 16 | 400 | 50/60 | 38*3.8*12 | 28 | |
GAZLB40040 | 16 | 400 | 50/60 | 40*3.8*15 | 28 | |
GAZLB40033 | 16 | 400 | 50/60 | 33*4.0*15 | 32 | |
GAZLB45010 | 18 | 450 | 50/60 | 38*4.4*10 | 34 | |
GAZLB45012 | 18 | 450 | 50/60 | 38*4.4*12 | 34 | |
GAZLB45015 | 18 | 450 | 50/60 | 37*4.4*15 | 34 | |
GAZLB50010 | 20 | 500 | 50/60 | 38*4.4*10 | 36 | |
GAZLB50012 | 20 | 500 | 50/60 | 38*4.4*12 | 36 | |
GAZLB50015 | 20 | 500 | 50/60 | 37*4.4*15 | 36 | |
GAZLB60010 | 24 | 600 | 50/60 | 38*4.9*10 | 42 | |
GAZLB60012 | 24 | 600 | 50/60 | 38*4.9*12 | 42 | |
GAZLB60015 | 24 | 600 | 50/60 | 37*4.9*15 | 42 |
