Woodworking Machinery Semi Auto F500A PVC Edgebander Edge Ba

Product details
Warranty:1 Year;After-sales Service Provided:Online support;
Certification:CE Certificate;Supply Ability:500 Set/Sets per Month;
Brand Name:lonjan;Dimension(L*W*H):2500x800x1500mm;
Condition:New;Voltage:380v or as your request;
Weight:800kg;Port:Qingdao;
Place of Origin:Shandong China (Mainland);Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Power(W):3.75kW;Name:Automatic Edge Banding Machine F550A;
Packaging Detail:stretch film with wooden case or as your request;After-sales Service Provided:Engineers available to service machinery overseas;
Product Description

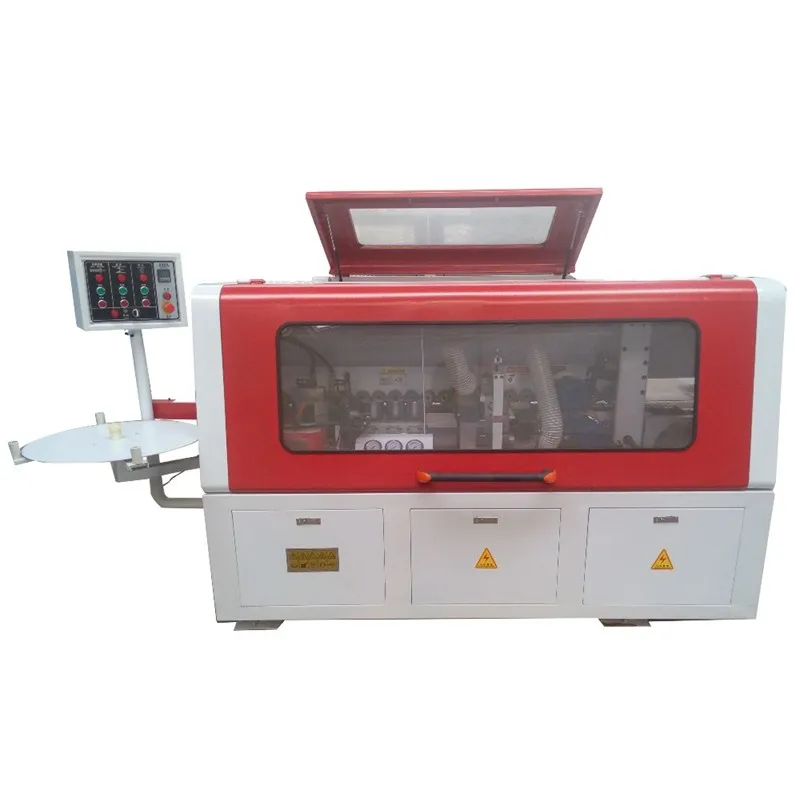

F500A - Professional Semi Automatic Edgebanders from Lonjan

1.Flexible, Easy to operate,

2.energy-saving,enduring;

3.Stable performance;

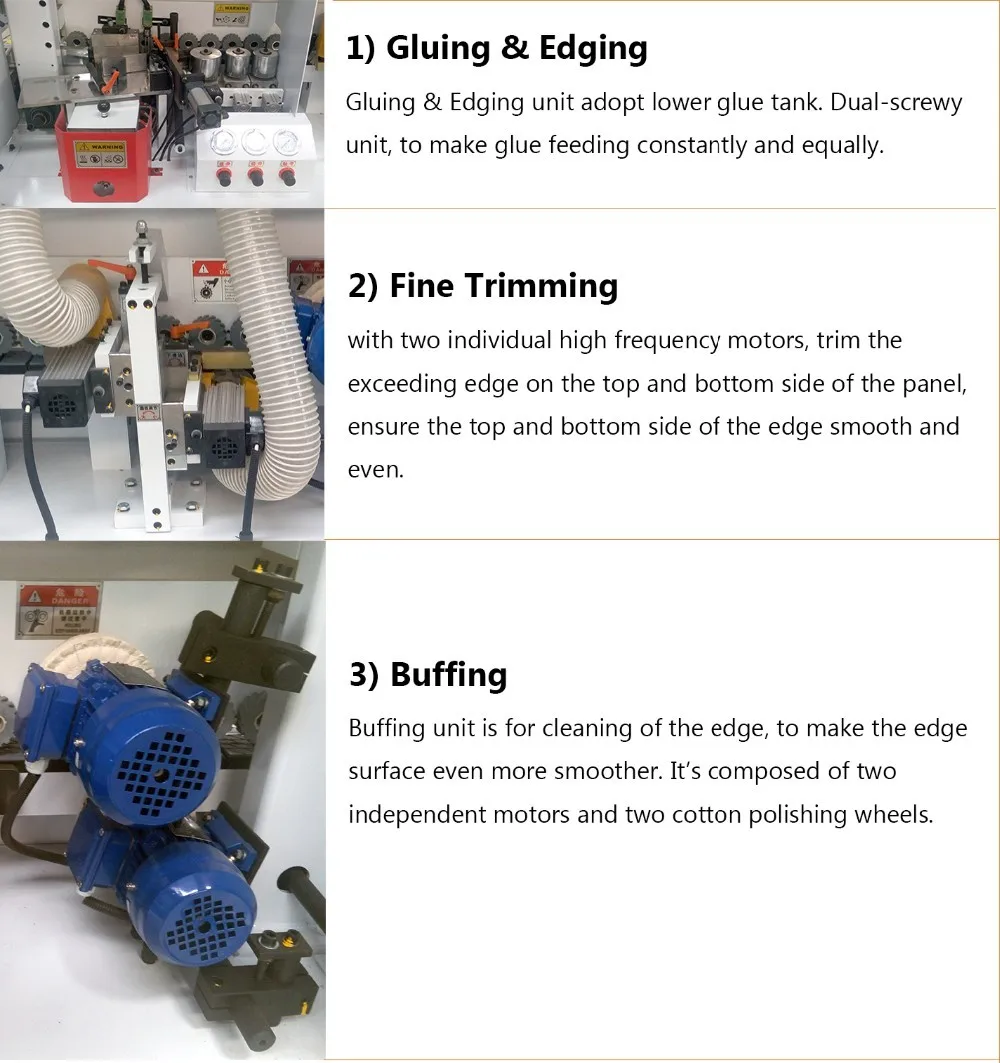

This machine is specially designed and exclusive for foreign market by us,which is multifunction but favourable price.It is used for MDF,wooden board and shaving board.It can complete the processes of feeding workpiece,feeding coiled material,edging,end cutting,fine trimming,scraping and buffing.It can achieve the level as same as foreign machines and the price is favourable.It is especially suitable for the factory producing board .


Model
F500A
F500AQ
Power
3.75kw
3.75kw
Voltage
380v/220v
380v/220v
Working speed
15m/min
15m/min
Board tickness
10-60mm
10-60mm
PVC thickness
0.3-3mm
0.3-3mm
Board width
>=60mm
>=60mm
Working Pressure
0.6-0.8Mpa
0.6-0.8Mpa
Overall size
2500*800*1500mm
2800*800*1600mm
Weight
800kg
900kg

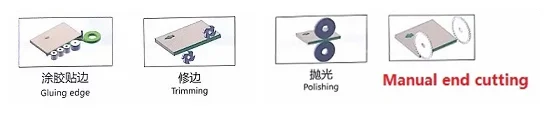

Funcitons
gluing/trimming/buffing
manual end cutting for choice
gluing/trimming/scrapping/buffing
manuel end cutting for choice
