Runshine since 1989 DWC22 diesel wood chipper made in China

Supplier: Weifang Runshine Machinery Co., Ltd
Region: Shandong, China
Contact: Ms mary wang
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Production Capacity:	7-11cbm/h;	start:	electric start;
Port:	Qingdao;	Condition:	New;
Use:	Chipping Wood;	Supply Ability:	1000 Set/Sets per Month;
Packaging Detail:	diesel wood chipper made in China Iron crate with plastic film or Iron crate with plywood;	max chipping diameter:	20cm/8 inch;
Delivery Detail:	Shipped in 20 days after payment;	feeding system:	hydraulic feeding system;
Application:	Cutting Forestry Wood Log Waste;	product name:	diesel wood chipper made in China;
Warranty:	12 Months;	Power Type:	Diesel;
Brand Name:	Runshine;	blades number:	3. two rotary blades,one stationary blade;
Weight:	650kg;	Type:	Wood Chipper;
color:	red,green,orange . optional;	Certification:	CE ISO;
Tow hitch:	2 balls hitch;	Model Number:	DWC-22;
engine:	22HP diesel engine;	Place of Origin:	Shandong China;
After-sales Service Provided:	Engineers available to service machinery overseas;	chips size:	5-15mm;
Payment Terms:	L/C,T/T;	Dimension(LWH):	3100x1750x1800mm;

Product Description

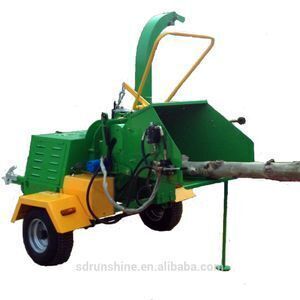

DWC22 diesel Wood Chipper Application

DWC22 diesel wood chipper employ steel disc with rectangular blades mounted upon it and fans upon the other side.

while the disc rotates,powered by PTO shaft or engines,the blades cut the wood into pieces and fans blow the chips out from chute.

SPECIFICATIONS FOR DWC22 DIESEL WOOD CHIPPER MADE IN CHINA
Engine	Engine model	hp/KW	22/16.2.Yanmar or Changchai CY1115 diesel engine
	No. of cylinders		single cylinder ,four stroke,horizontal
	Rated Power	rpm	2200RPM
Engine	Fuel consumption rate	g/kwh	<245
	Engine oil consumption	g/kwh	<1.5
	cooled type		water cooled
	start		electric start
Main performance parameters of diesel wood chipper made in China	chipper capacity	mm	150,max to 200
	chips size	mm	5-15,adjustable
	working efficiency	cbm/h	7-11
	discharge hood height	mm	2000
	feed hopper inner opening	mm	200*220
Flywheel of diesel wood chipper	diameter	mm	640
	weight	kgs	85
	blades number	piece	3.1 stationary blade,2 rotary blades

Main Features of diesel wood chipper made in China

1) DWC22 diesel Wood chipper with 22hp Yanmar diesel engine,electric start

2) 2 balls hitch,360 discharge hood

3)hydraulic feeding system,with free flow valve,easy to control feeding rate

4) horizontal design,easy to put wood in.

5)Mn-65 blades,2 rotary blades.

6)suit for branches and small log,low cost and high efficiency

Certifications

Detailed Images

Diesel Wood chipper Parts

Name: Disc flywheel

Brand: Runshine

Original: China

28mm thickness disc flywheel.with fans and 2 rotary blades

Diesel Wood chipper part

Name: free flow valve
Brand: Runshine
Original: China
Free flow valve could control hydraulic feeding roll rate well,makes roll forward,stop,backward,fast and slow.

according to different wood material and diameter,

choose different roll rate.

Diesel wood chipper Parts

Name:structure
Brand:Runshine
Original: China
strong structure.

Diesel wood chipper Features

Name: diesel engine
Brand: Yanmar
Original: Japan

CY1115 Yanmar diesel engine,Japanese brand and technology,produce in China.

Our Service

Pre-Sales Service

* Inquiry and consulting diesel wood chipper made in China.

* testing diesel wood chipper.

* View our Factory.

After-Sales Service

* Training how to install the diesel wood chipper, training how to use the diesel wood chipper.

* Engineers available to service machinery overseas.

*any problem,our engineers will service in 24 hours

Packing & Delivery

Packaging
Size	1200(L) * 1150 (W) * 1200 (H)mm
Weight	735kgs
Packaging Details	The normal package is Iron crate with plastic film or plywood. 20sets per 20ft container 40 sets per 40ft container
