Best price Eddy Current Separator of metal Recycling machine for steel recycling,eccentric eddy current separator China

Supplier: Shenyang New Densen Casting And Forging Co., Ltd.
Region: Liaoning, China
Contact: Ms Marina Ma
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Capacity:	As required;	Service Life:	8-10 Years;
Certification:	CE ISO;	Single gross weight:	1,000 KG;
Selling Units:	Single item;	Dimension(LWH):	Depends;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;	Package Type:	Wooden case;
Magnetic intensity:	1500~4500Gs;	Package Preview:	https://sc01.alicdn.com/kf/HTB1TkTkbEuF3KVjSZK9762VtXXa9.png_640x640.png;
Type:	Magnetic Separator;	Key Selling Points:	Long Service Life;
Color:	as required;	Single package size:	200X200X100 cm;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Condition:	New;
Brand Name:	DS;	Place of Origin:	Liaoning China;
Product name:	Eccentric eddy current separator in metal recycling;	Condition:	New;
After-sales Service Provided:	Engineers available to service machinery overseas;	Certification:	CE ISO;
Warranty:	12 Months;	Production Capacity:	High;

Eddy Current Separator Recycling Magnet Machine of Good Performance Made in China

Product Description

Basic Description

Description	Eddy Current Separator Recycling Machine
Type	OEM
Application	Metal recycling, waste reduction, raw material etc.
Imported parts	Nord Gear Motor, Sigeling Belt and Schneider Electric parts
Safety Protective Faclities	Emergency Stop and Open-cover Reset Button
After-sales Service Provided	Engineers available to service machinery overseas for 1 year

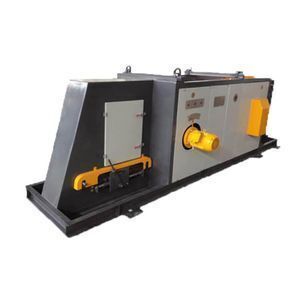

Product show

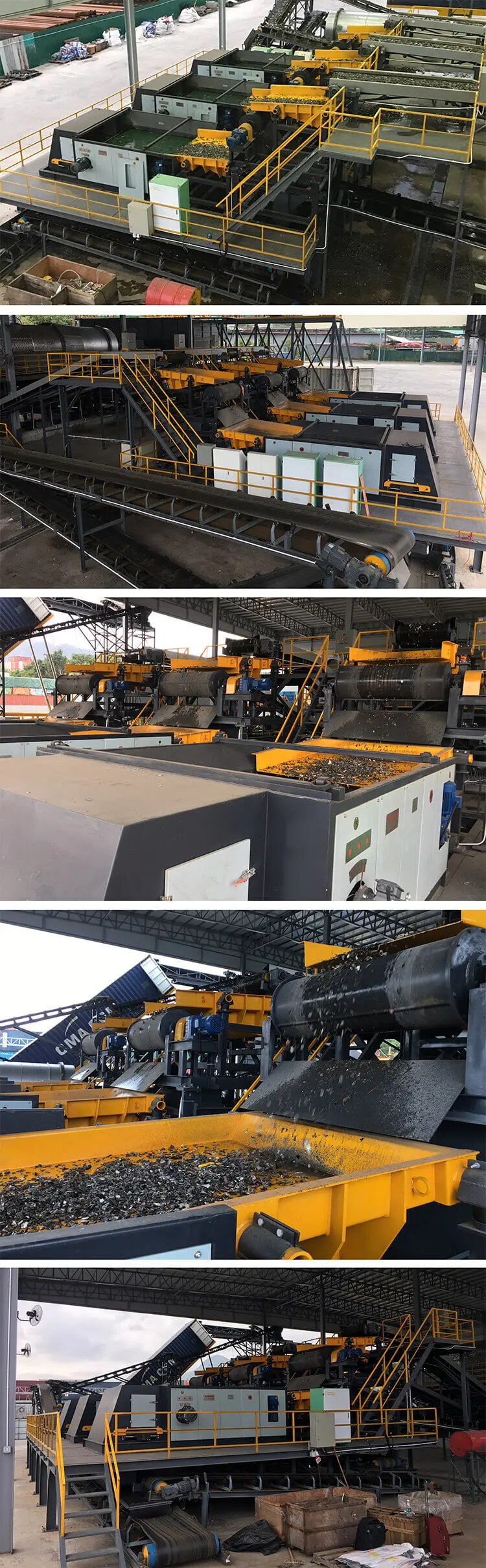

Work scene

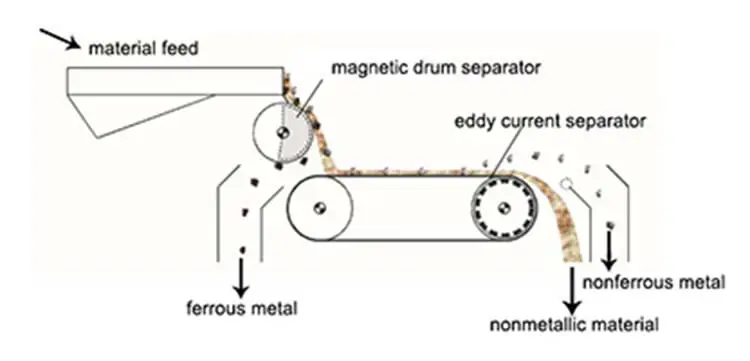

Work principle 1

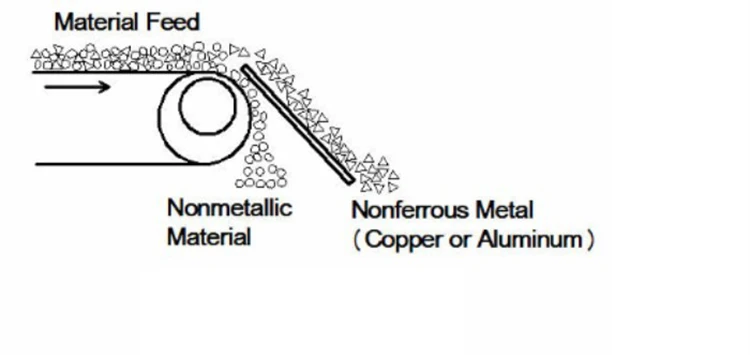

Work principle 2

Specification for your reference

Model	ECS65P	ECS80P	ECS100P	ECS120P	ECS150P	ECS180P
Magnetic roller diameter (mm)	500	500	500	500	500	500
Magnetic Rotor Diameter(mm)	Eccectric:500 Concentric:300
Magnetic roller speed (r/min)	0-3100	0-3100	0-3000	0-3000	0-3000	0-3000
Belt Width (mm)	650	800	1000	1200	1500	1700
Belt Speed (m/s)	0-2	0-2	0-2	0-2	0-2	0-2
Power (kw)	4.0+1.1	4.0+1.5	5.5+1.5	5.5+2.2	5.5+2.2	5.5+3.0
Weight(kg)	2000	2500	2900	3600	3800	3900
CBM(mm)	3670 16501285	3670 20001285	3670 23001285	4160 24001285	4160 26001285	4160 28001285

Magnet series products

Declaration:

Products shown herein are made to the requirements of specific customers and are illustrative of the types of manufacturing capabilities available within Densen group of companies.

Our policy is that none of these products will be sold to 3rd parties without written consent of the customers to whom the tooling, design and specifications belong.

Company Information

Our factory is Located in shanyang ,China, which is a professional enterprise producing magnetic series products. Our factory has been focusing on designing and manufacturing magnetic equipment for 12 years since 2006.We are one of the earliest suppliers of magnetic separator and eddy current separator in Asia. Main products are Eddy current separator, magnetic separator, belt magnetic separator, Drum magnetic separator and Grate magnets.

Our Advantage:
1. We have 13 years of professional production experience, and we are one of the earliest manufacturer of eddy current separator in China.
2. We have a technical engineer team with 10 engineers who have more than 25 years of working experience in eddy current separator.
3. In the list of 98 China National fixed appliances dismantling of the plant, there are 55 factories use our equipment. It can be proved through the website of the China’s Ministry of Commerce.
4. We have provided different solutions for more than 500 users at China and abroad. We have rich experience in equipment’s actual use and Practical experience in case handling, which can fully solve various problems of customers.

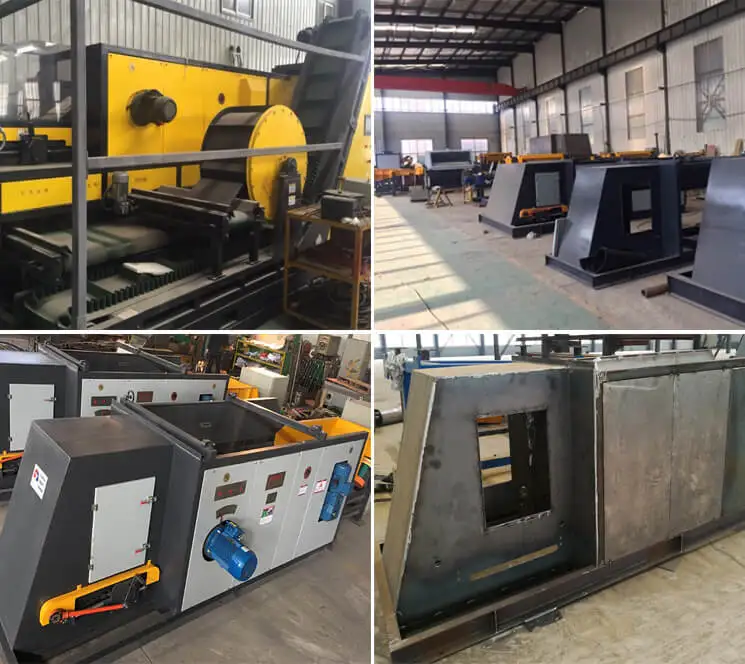

Factory photo:

At the exhibition:

More industry

More our product

More industry

Treatable material

Our Services

1. Before production, we will send the drawing of the product according to your requirements.

2. During the production process, we will regularly send you the production situation and pictures.

3. We will test the equipment before shipment, such as the magnetic intensity test, rotor dynamic balance experiment. And send you the photo and the video.

4. Warranty: 1 year. We will provide non-vulnerable accessories free during the warranty If you have any question, we will provide online video guidance. If online video guidance can not solve the problem, we will send engineers to your site for guidance. (Room and board expenses are negotiated separately.)

With well-equipped professional engineers and strong technical ability, our company has been in this field for 15 years.

1. We cooperate with superior suppliers (Nord &Schneider) to ensure the quality.

2. Tests of materials are freely checked for the required quality of the equipment before packing.

3. Engineers are always available to service for machinery commissioning overseas, which is not only after sales service support, but also technology support .

4."Keep Improving, Pursuing Excellence" would be kept forever.

Our certification:

FAQ

1. Wet type

In order to recommend the most suitable model, please let us know the material`s situation, including the composition , size ,handling capacity and ferrous content.

2.Dry type

In order to recommend the most suitable model, please let us know

1.the material`s situation .including the composition , size ,handling capacity and ferrous content.

2.the material thickness transported on conveyor .

3.The width of conveyor bel

3.Which type should I use for my recycling plant?

In order to recommend the most suitable model, please let us know follow info:

1.material`s situation .including the composition , size ,handling capacity and ferrous content

2.the material thickness transported on conveyor belt.

3.The shape and width of the conveyor belt .

Warranty

We solemnly promise a one-year warranty.
