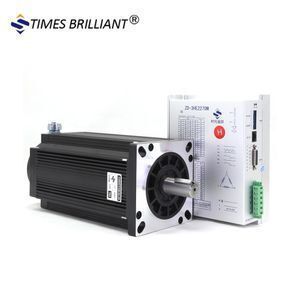

big stepper motor nema 52 130mm 50Nm 6.8A Stepper Motor IN STOCK 130HCY285AL3S cnc motor

Product details
Insulation Strength:1000VAC 50Hz 1mA/Min;Phase:3;
Insulation Grade:B Class;Inductance:21mH;
Type:Permanent Magnet;Brand Name:Times Brilliant;
Power Supply Voltage:110V - 220V;Place of Origin:Beijing China;
Single package size:39X35X32 cm;The Temperature Rise:80K Max;
Environment Temperature:-40 ℃ + 55 ℃;Insulation Resistance:100MΩ;
Selling Units:Single item;Phase:3;
Package Type:polyfoam,cardboard carton;Single gross weight:21 KG;
Resistance:1.1Ω;Model Number:130HCY285AL3S;
Current / Phase:6.8A;Certification:CE;
Adapter Driver:2270M Digital Driver;
Product Description
nema 52 130mm  50Nm 6.8A Stepper Motor 130HCY285AL3S CNC MOTOR
FAST DELIVERY(IN STOCK) !!!

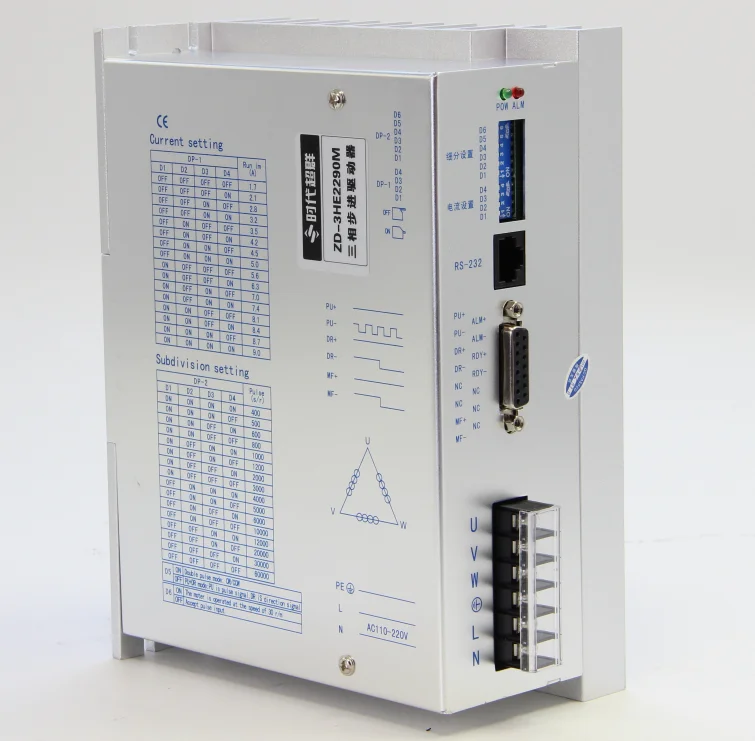

Two kinds of driver for reference:



220v 7A driver



220v 9A driver



Motor details:

Basic Parameters
TypeMixed Stepper
Motor Model130HCY285AL3S
Phase3
The Temperature Rise80K Max
Environment Temperature-40 ℃ + 55 ℃
Insulation GradeB Class
Insulation Resistance100MΩ
Insulation Strength1000VAC 50Hz 1mA/Min
Electrical Parameters
Step Angle1.2°
Torque50Nm
Current6.8A
Power Supply Voltage110-220V
Resistance1.1Ω
Inductance21mH
Adapter Driver2270M Digital Driver
Defects Liability Period2 years
Mechanical Parameters
Length285mm
Spigot100mm
Hole Dist109.6mm
Shaft L52mm
Shaft D19mm/24mm
ShaftCircular shaft
Load Wireconnectors
Wire No.3
Weight18Kg

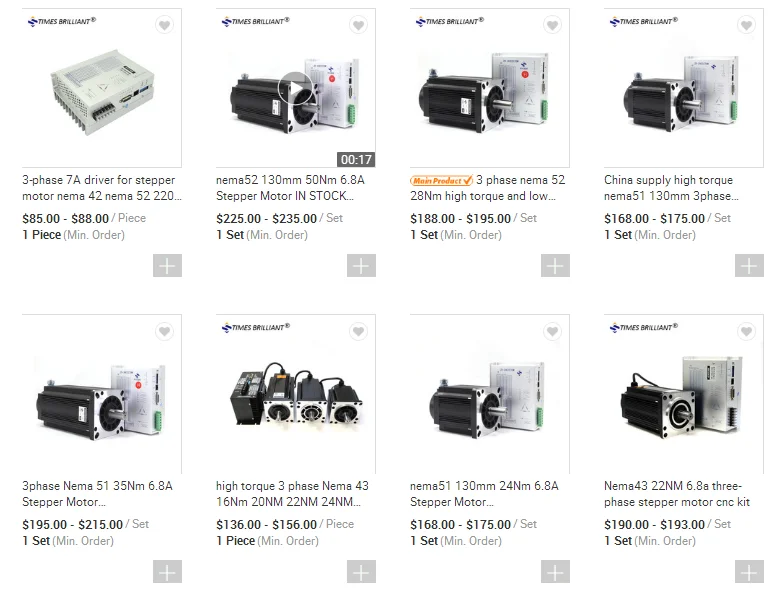

Related Products



TypePhaseStep Angle°

Torque

Nm

Current

A

Voltage

V

Motor

Length

mm

Resistance

Weight

Kg

130HCY180AL3S31.2246.8110-220V DC180mm0.569
130HCY220AL3S31.2286.8110-220V DC220mm0.7612
130HCY250AL3S31.2356.8110-220V DC250mm0.9615
130HCY285AL3S31.2506.8110-220V DC285mm1.118

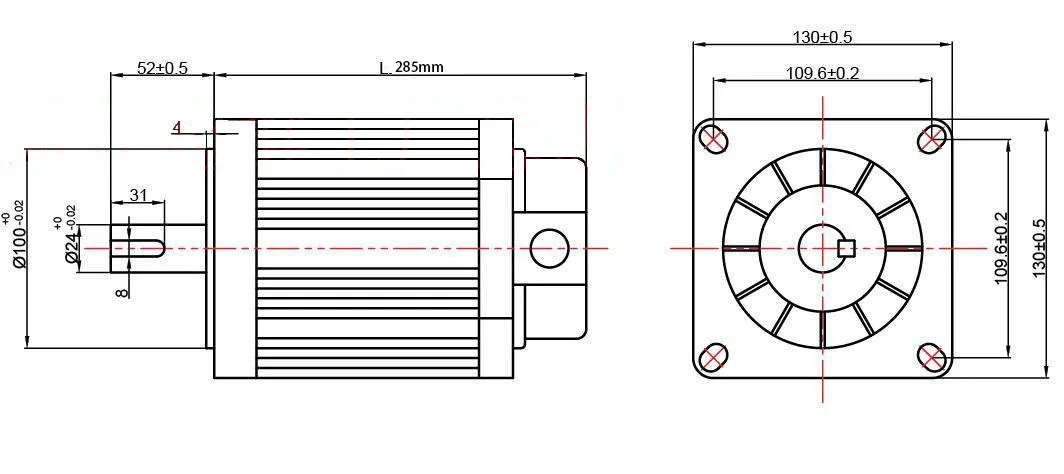

Size



                                                               the Shaft DIA 19mm & 24mm two choices









Writing





 You may like:







Packaging & Shipping
Shippment by air need 3-7days,
by express need 4-15days(FEDEX,DHL,UPS,TNT,ARMEX)
by sea need 15-30days.
