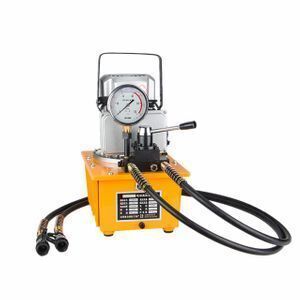

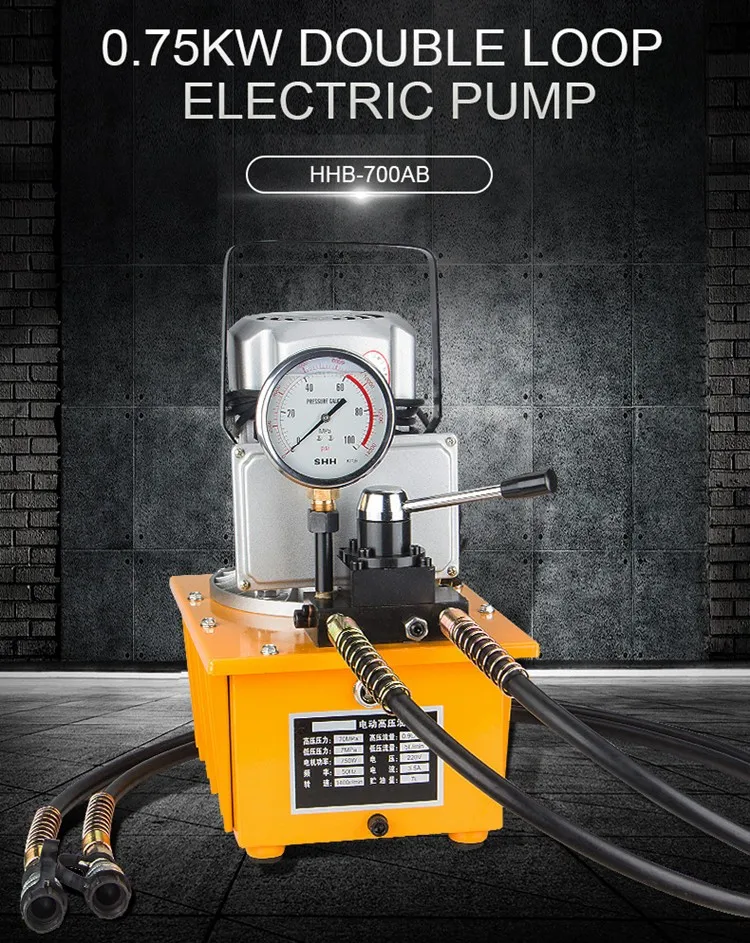

HHB-700AB double acting 700 bar Hydraulic electric Pump

Supplier: Yuhuan Changyou Hydraulic Tools Co., Ltd.
Region: Zhejiang, China
Contact: Mr Lin
Price: $195.00 /set
Min. Order: 1 set

Click here to contact

Product details

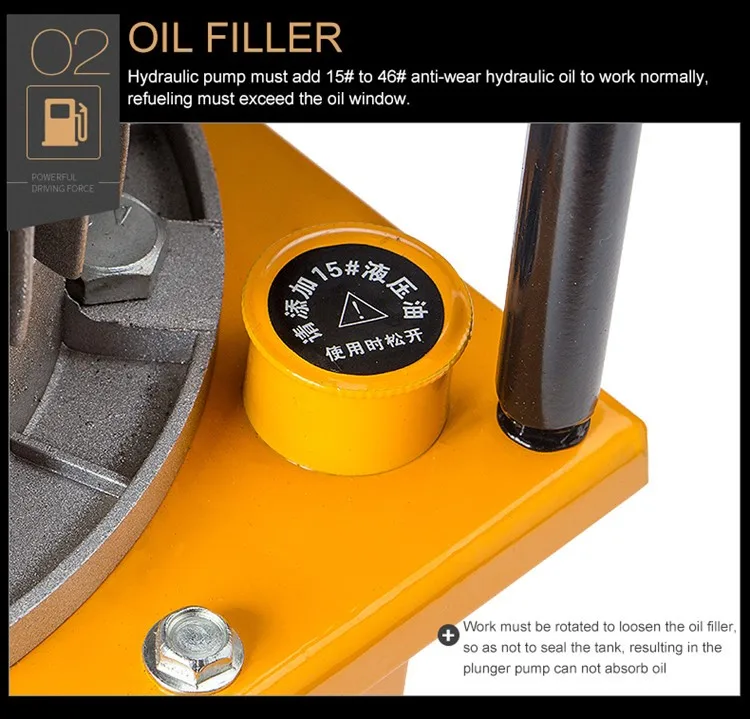

oil:	15#-32# hydraulic oil;	Oil Reserves:	7L;
Package Type:	1 set / wooden case;	Working Voltage:	220V/380V;
Place of Origin:	Zhejiang China (Mainland);	Low Pressure:	7Mpa;
Model Number:	HHB-700AB;	High Pressure:	70Mpa;

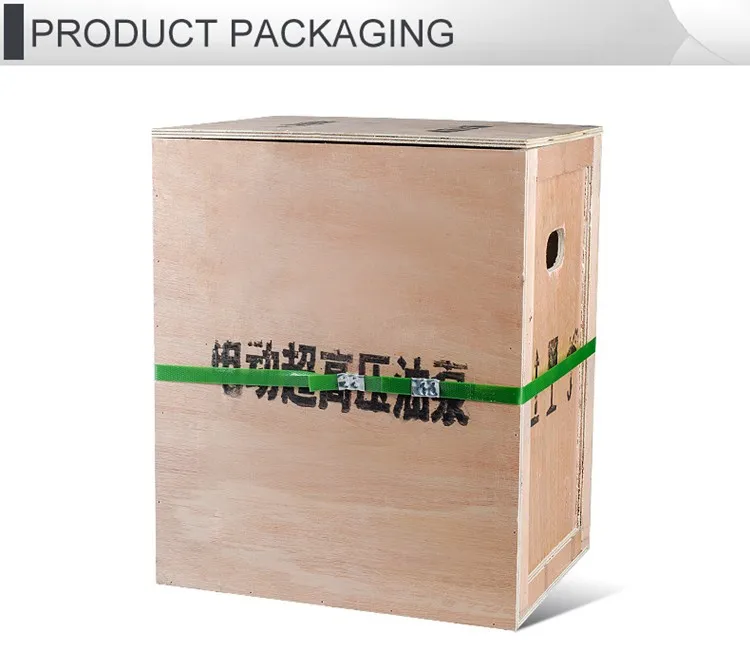

Package:	Wooden case;	Type:	Electric Pump;
Motor Power:	0.75KW;	Single package size:	36.5X27.5X45 cm;
Selling Units:	Single item;	Single gross weight:	29.1 KG;

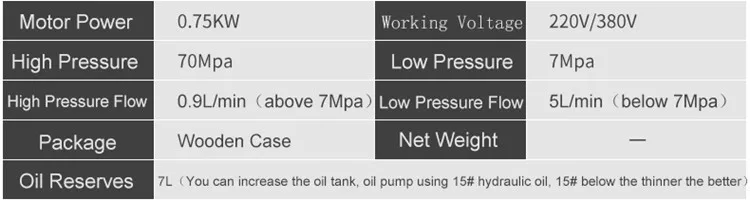

Product Description

Motor Power	0.75KW
Working Voltage	220V/380V
High Pressure	70Mpa
High Pressure Flow	0.9L/min
Low Pressure	7Mpa
Low Pressure Flow	5L/min
Package	wooden case
Oil Reserves	7L

Main Advantage

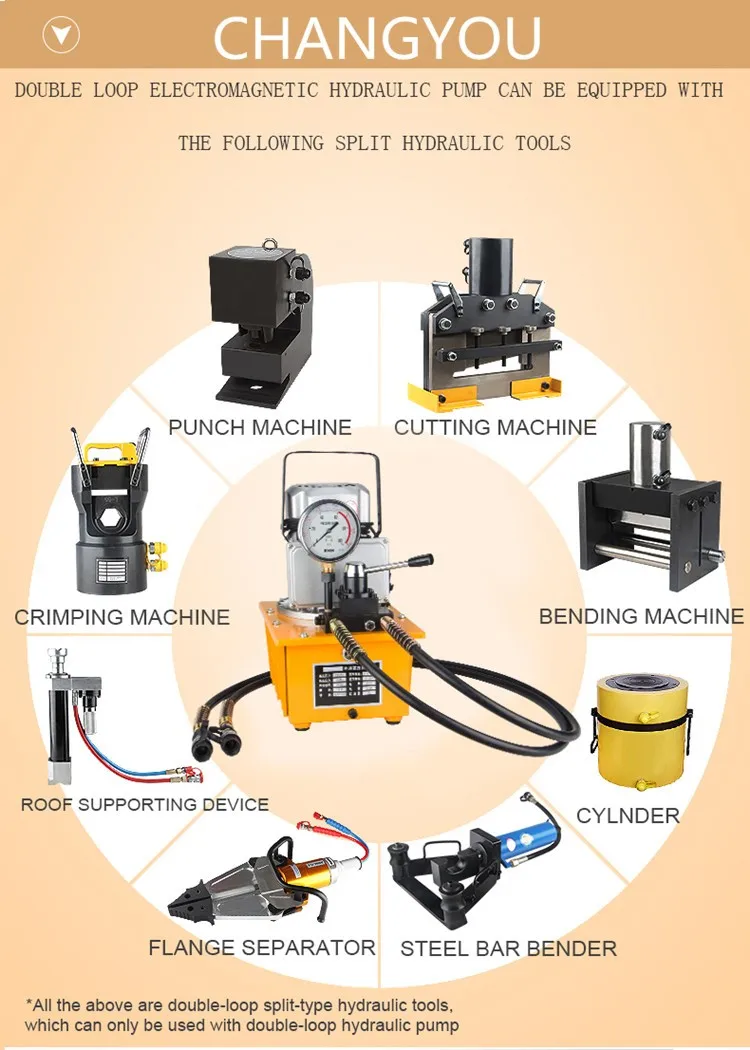

1. It is suitable for hydraulic split pliers, punching, cutting, and bending split hydraulic tools.

2. When leaving the factory, the pressure has been set to 70 Mpa, and the adjustable range is 20-70 Mpa.

3. High pressure tubing can be arbitrarily lengthened.

4. Fuel tank can be increased according to customer requirements.

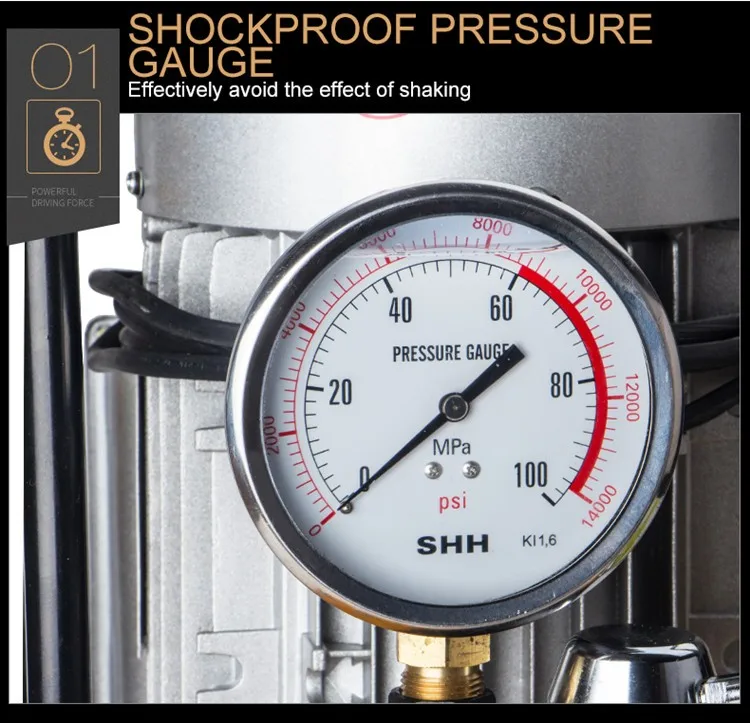

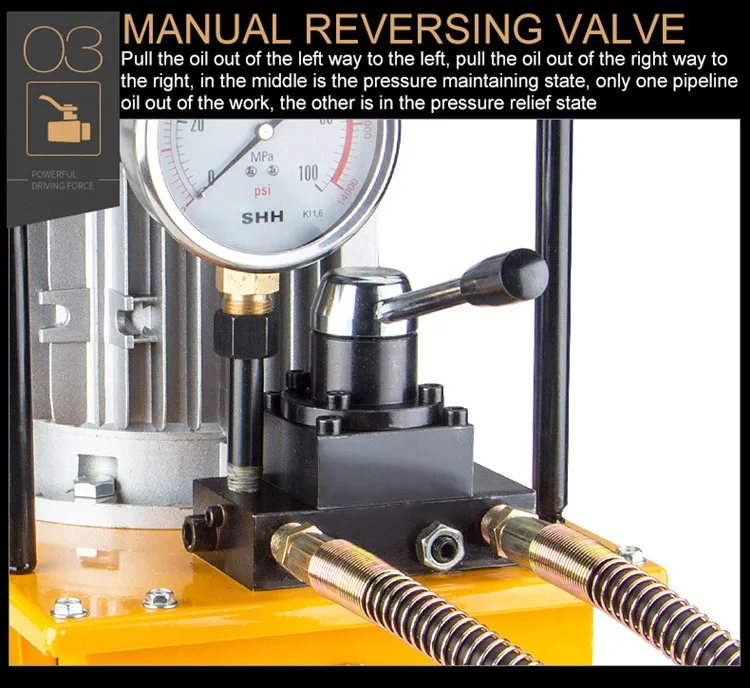

Detailed Images

FAQ

1.What is your payment terms?
1)T/T 2)L/C

2.What is your shipping way ?
Express (DHL,Fedex,TNT),By air ,Or Sea. We will choose one shipping way to suit customers request .

3.How long is your machine warranty?
Warranty of our product is one year,but artificial damage and incorrect use is not included.

4.What is your delivery time ?
It depends on your order. Normally3- 7days for samples, 30-45days for standard, 30-60 days for customized.

5. How do you guarantee your quality ?
Firstly, we do quality test during every process. We produce most components by ourselves, it is started from cutting raw material ,machining roughly in the first step. casting , forging , punching , heat treatment , finish machining , painting , assembling and finally packing , we will spot check for each steps.
Secondly, we will collect all comments on our products from customers in time. And try our best to improving quality all the time.
