Length: | 104.4mm; | Model Number: | YH21APN; |
Material: | stainless steel; | Payment Terms: | L/C,T/T,Western Union; |
Place of Origin: | Jiangsu China; | Brand Name: | YUHUA; |
Size: | 104.4mm; | Color: | black/red/yellow/green; |
Insulator: | pvc; | Port: | shanghai; |
certificate: | ISO9001; | Supply Ability: | 200000 Piece/Pieces per Month; |
Packaging Detail: | 200pcs/carton, carton size 46*36*23; | Connection: | crimp/solder; |

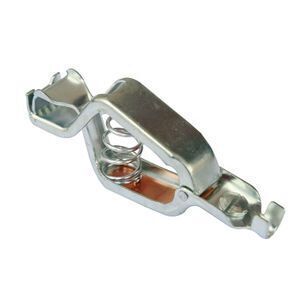

zinc iron spring clamp with factory price
Specification | |
Model number: | YH21APN |
Material: | zinc plated steel |
Rating: | 50A |
Length: | 104.4mm |
Color: | black,red,yellow,green,blue,white |
Additional: | Jaw open 1.06"(27mm) |
MOQ: | 500pcs |
Package: | standard export for outer packing |
Leadtime: | 20 days |
Shipping time: | 5 days after get the payment |
Payment term: | L/C,T/T,WESTEN UNION |
model number | jaw open | material | rating |
YH85 | 0.313"(7.9mm) | zinc plated steel | 5Amps/10Amps |
YH85C | 0.313"(7.9mm) | solid copper | 5Amps/10Amps |
YH45 | 0.31"(7.9mm) | zinc plated | 5Amps/10Amps |
YH45C | 0.31"(7.9mm) | solid copper | 5Amps/10Amps |
YH48 | 0.5"(12.7mm) | zinc plated steel | 10Amps/20Amps |
YH48C | 0.5"(12.7mm) | solid copper | 10Amps/20Amps |
YH50 | 0.5"(12.7mm) | copper | 20Amps |
YH48B2E | 0.5"(12.7mm) | zinc plated steel | 10Amps |
YH51C | 0.5"(12.7mm) | copper | 20Amps |
YH55 | 0.44"(11mm) | zinc plated steel | 10Amps |
YH27 | 0.625"(16mm) | zinc plated steel | 20Amps/40Amps |
YH27C | 0.625"(16mm) | solid copper | 20Amps/40Amps |
YH27CG | 0.625"(16mm) | solid copper | 40Amps |
YH27CGW | 0.625"(16mm) | solid copper | 40Amps |
YH25 | 0.75"(19mm) | zinc plated steel | 40Amps/75Amps |
YH25C | 0.75"(19mm) | solid copper | 40Amps/75Amps |
YH21APN | 1.06"(27mm) | zinc plated steel | 50Amps |
YH21APS | 1.06"(27mm) | zinc plated steel | 50Amps |
YH24APN | 0.75"(19mm) | zinc plated steel | 25Amps |
YH24APS | 0.75"(19mm) | zinc plated steel | 25Amps |
YH21CPN | 1.06"(27mm) | solid copper | 100Amps |
YH24CPS | 1.06"(27mm) | solid copper | 100Amps |
YH33C | 1.81"(46mm) | solid copper with copper lug | 300Amps |
YH11APN | 1.625"(41.3mm)unmarked | zinc plated steel | 100Amps/200Amps |
YH11APS | 1.625"(41.3mm)unmarked | zinc plated steel | 100Amps/200Amps |
YH11CPN | 1.625"(41.3mm)marked positive | solid copper | 100Amps/200Amps |
YH11CPS | 1.625"(41.3mm)marked positive | solid copper | 100Amps/200Amps |
For more information click here to consult us for a free sample.
