2.5" & 3" PNEUMATIC RIVET "C" SQUEEZER (GS-0131B)

Product details
REACH:3" (76.2MM);RAW MATERIAL:ALUMINUM CASTING & ALLOY STEEL SK-5;
Payment Terms:L/C,T/T,Western Union,PAYPAL;CAPACITY:ALUM: 1/8 (3.17MM) , STEEL: 3/32 (2.38MM);
Place of Origin:Taiwan, China;Supply Ability:300 Piece/Pieces per Month;
MAX FORCE:3000 LBS;Port:TAIWAN;
Packaging Detail:PACKING: 1 PC/INNER BOX, 6 PCS/ 18.70KGS/ 21.4KGS/ 1.20CUFT/CTN.;STROKE AT MAX POWER:1/16" (1.59 MM);

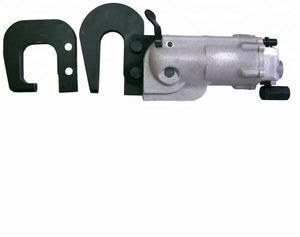

GS-0131B   2.5” & 3” PNEUMATIC RIVET “C” SQUEEZER

DESCRIPTION

* RIVET CAPACITY:

1. ALUM: Ø1/8 (3.17MM)

2. STEEL: Ø3/32 (2.38MM)

* STANDARD YOKE DIMENSIONS:

1. REACH: 3” (76.2MM)

2. GAP: 1-1/16 (17.45)

* MAX FORCE: (AT 90 PSI (6.21 BAR) AIR PRESSURE): 3000 LBS (13.35KN)

* SET HOLDER:

1. MAX TRAVEL: 9/16” (14.29MM)

2. STROKE AT MAX POWER: 1/16” (1.59 MM)

* OVERALL LENGTH: 10-1/4” (260.35 MM)

* NET WEIGHT: 4-1/2 LBS (2.04 KGS)

* RAW MATERIAL:

 1. MAIN BODY: ALUMINUM CASTING

 2. YOKE: ALLOY STEEL SK-5

* PACKING: 1 PC/INNER BOX, 6 PCS/ 18.70KGS/ 21.4KGS/ 1.20CUFT/CTN.
