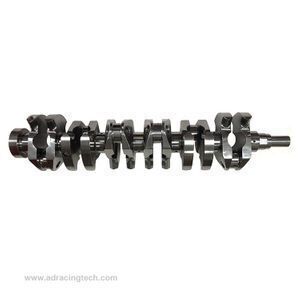

Adracing Super finishing 4340 Billet Crankshaft Stroke 90mm For Nissan RB30 Crankshaft

Supplier: Adracing Technology (Chengdu) Limited
Region: Sichuan, China
Contact: Ms Anna Chen
Price: $1650.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Material:	4340(40CrNiMoA) Billet Steel;	Payment Terms:	L/C,D/P,T/T,Paypal;
Type:	Billet Crankshaft;	Application:	For Nissan RB30 Crankshaft;
Place of Origin:	Sichuan China;	Heat Treatment:	Ionitriding;
Port:	Any Port In China;	Superfinishing:	Available;
Logo Printing:	Available;	Car Model:	For Nissan RB30;
Brand Name:	Adracing;	Size:	Standard or Customized;
Balance Weight:	1g.cm;	Packaging Detail:	Neutral packing or as customer's requests;
Certification:	ISO9001:2000;	LightWeight:	Available;
Engine Code:	For Nissan RB30 Engine;	Supply Ability:	10000 Piece/Pieces per Month;
Warranty:	1 Year;	The Journal Nitride Hardness Depth:	≤0.3mm;
Custom Design:	Available;

Adracing Super finishing 4340 Billet Crankshaft Stroke 90mm For Nissan RB30 Crankshaft

For Nissan RB30 Crankshaft Specifications

Brand:Adracing
Application(s)	For Nissan RB30 Crankshaft
Engine(s)	RB30
Material	Billet 4340 Steel
Stoker	90mm
Main Journal Diameter	55mm
Rod Journal Diameter	50mm

Technical Features

- Full CNC Machining

- Multi-step heat treatment process

- Knife-edged counterweights

- Gun drilled crank pin and counterweights to reduce weight and rotating mass

- Micro-polishing for longer bearing life

- Heating treatment:HRC34-38

- Peening treatment will be done after balance weight

- magnetic flaw detecting will be done according to standard JB/76729-93

Difference between Forged steel crankshaft and billet crankshaft:

- Forged steel crankshaft need to machine balance hole to keep good balance result

- Billet Crankshaft can get good balance by different design on counterweight. and Surface on counterweight will be more beautiful

Custom Service

- Our main business is to supply customized service

- we supply customized service based on your sample or drawing

- Price can be estimated if you can send Stroke--rod journal--rod journal width--main journal--main journal width--total length--fan plate bore--width between fan plate bore and photo

Delivery Time

- If the goods are in stock,the delivery time is 1-3 days

- If the goods are not in stock,the delivery time is 80-90 days
