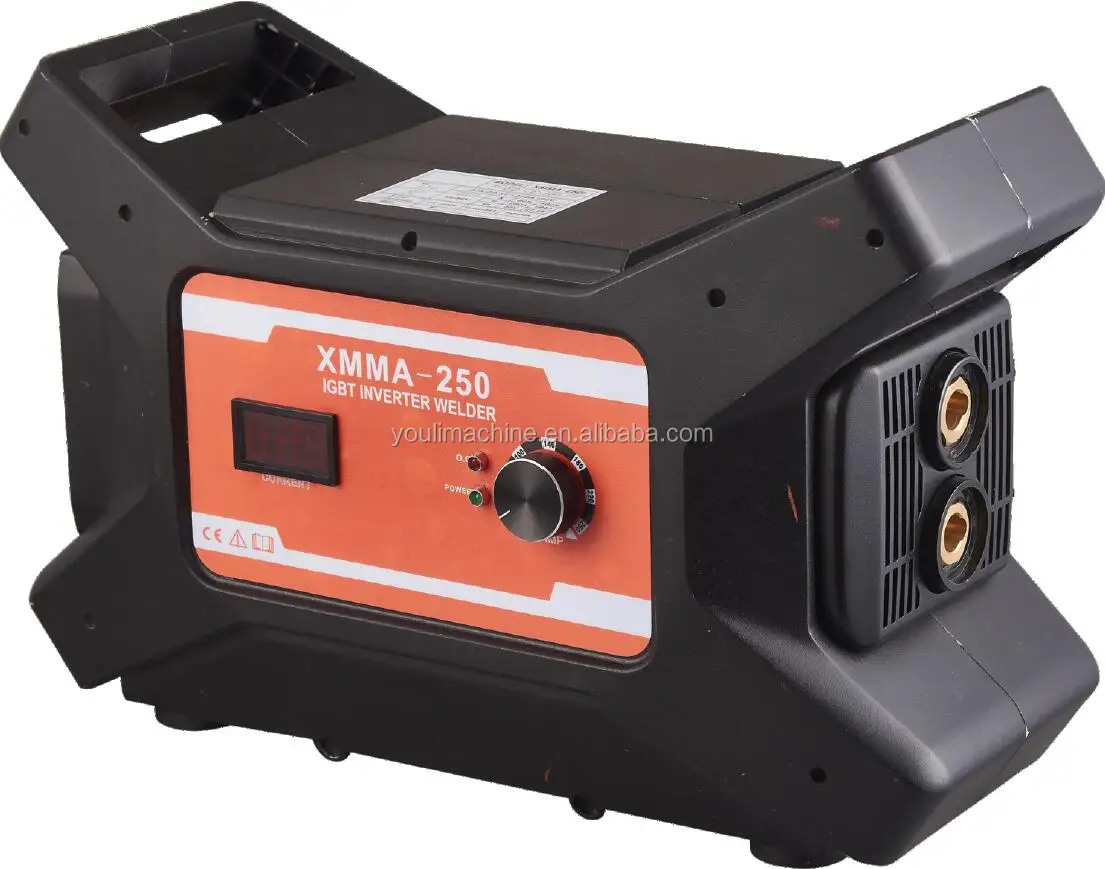

INVERER MMA WELDING EQUIPMENT 200A ARC WELDERS

Supplier: Youli Electric And Machine Co., Ltd.
Region: Zhejiang, China
Contact: Mr JACK FANG
Price: $40.00 / >=30 pieces
Min. Order: 30 pieces

Click here to contact

Product details

After-sales Service Provided:	No overseas service provided;	Brand Name:	YOULI;
Arc Current:	20-200A;	Warranty:	1 Year;
Voltage:	230V;	Port:	NINGBO;
Max. Load Power Capacity:	8.3KVA;	Color:	Red,green,Blue,Yellow...;
After-sales Service Provided:	Online support,Free spare parts;	Supply Ability:	100000 Piece/Pieces per Year;
Rated Input Voltage:	230V;	Power(W):	8.3KVA;
Packaging Detail:	CARTONS;	Pulse Frequency:	50/60 HZ;
Place of Origin:	Zhejiang China;	Usage:	for welding;
Rated Output Voltage:	28V;	Motor Type:	inverter MMA;
Rated Duty Cycle:	60%;	Dimensions:	401826CM;
Rated Duty Cycle @40°C:	60%;	Payment Terms:	L/C,T/T;
Pilot Arc Current:	/;	Welding Current/Voltage Range:	20-200A;
Rated Output Current:	20-200A;	Certification:	CE/ISO9001/CCC/ROHS;
Condition:	New;

FEATURES:

*Inverter IGBT technique makes the welder more strong,with compact size but much high duty cycle

*Inverter technique makes the welder runs in high utilization rate of power

*Low open circuit loss and has good welding quality

*suitable for MMA welding of low carbon steel and low alloy steel with all konds of welding rod

OTHER MODELS LIST

MODEL	MAINS VOLTAGE (V)	FREQUENCY (HZ)	NO-LOAD VOLTAGE (V)	RATED INPUT CAPACITY (KVA)	INSULATION CLASS	OUTPUT CURRENT (A)	RATED DUTY CYCLE (%)	DIMENSIONS (CM)	WEIGHT (KG)
XMMA-160I	220	50/60	56	6.0	F	20-160	60	*401826*	4.1
XMMA-180I	220	50/60	56	7.0	F	20-180	60	*401826*	4.1
XMMA-200I	220	50/60	56	8.3	F	20-200	60	*401826*	4.2
XMMA-250I	220	50/60	56	9.5	F	20-250	60	*401826*	4.2

Quarlity & Inspection

· Cooperated with good reputation suppliers.

· 100% check spare parts quality which produced from matching suppliers.

· QC checking each step from spare parts to production on the full of line.

Package

· Standard exported carton or color carton.

· Violin-style color carton or Blow molding package are available.

· We will use standard exported package if no special requirments, but it is available to provide colour package according to your design or we make design for you using your brand basing on the quantity more than 300pcs.

Payments Term

· Irrevocable and Confirmed L/C at sight

· T/T

Main Markets:

· Europe

· South America

· Southeast Asia

·Middle East

Certifications

· CE.RoHS,CCC.ISO9001

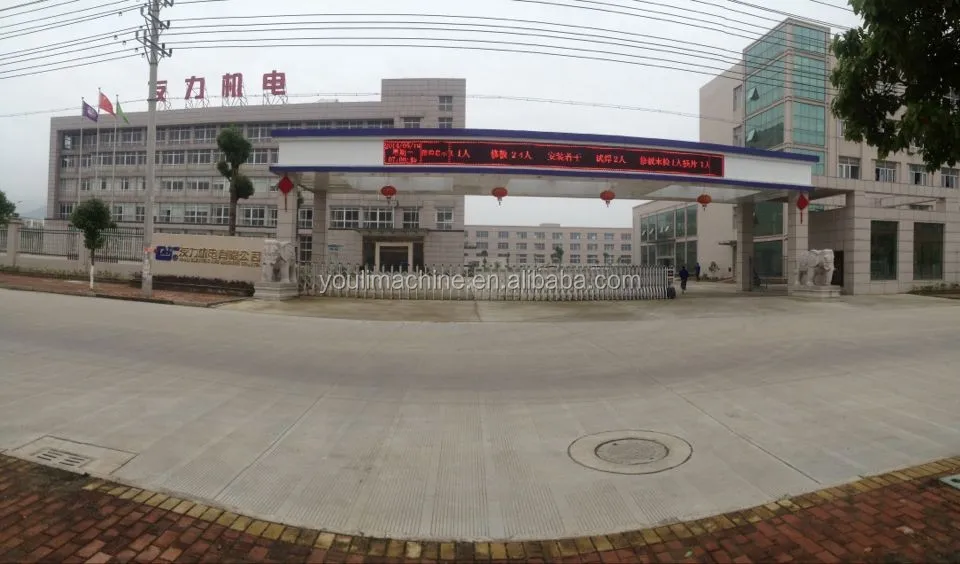

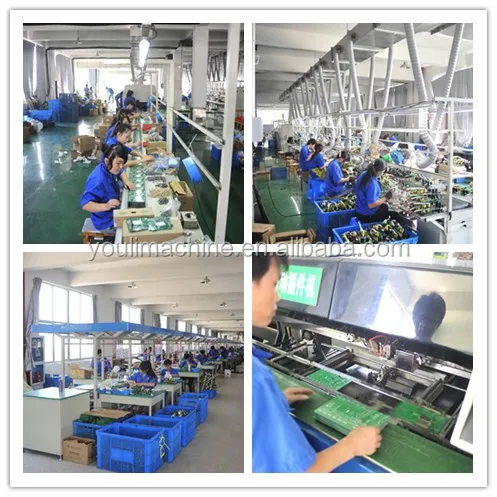

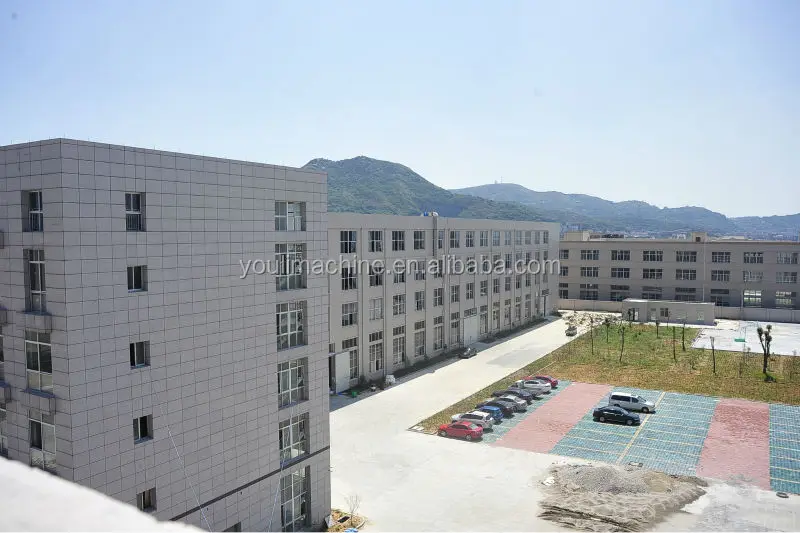

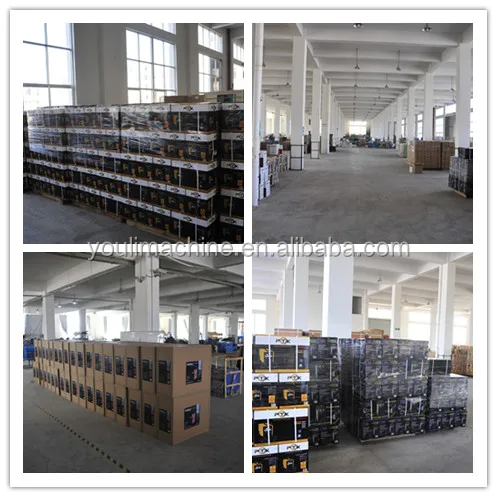

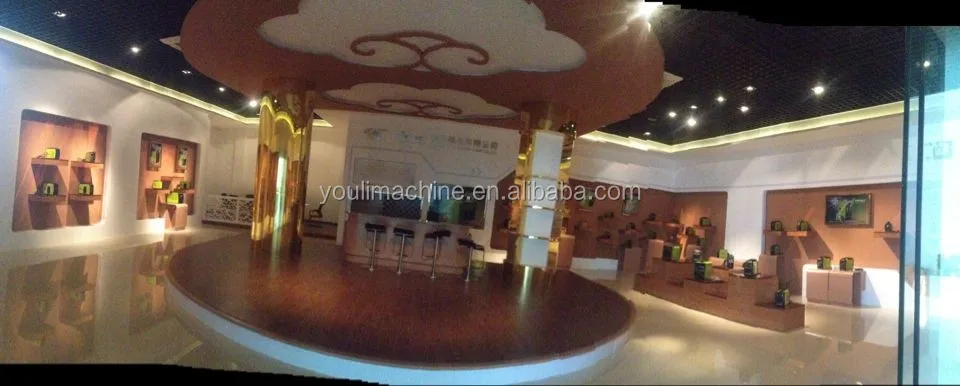

Our factory and sample room
