Packaging Detail: | Securely packaged in cardboard with buffering material; | Model: | 500 series; |
Port: | Yokohama Port, Narita; | Place of Origin: | Japan; |
Brand Name: | Mitutoyo; | Payment Terms: | L/C,PayPal; |
Supply Ability: | 500 Piece/Pieces per Year; | Model Number: | US-M500-37; |

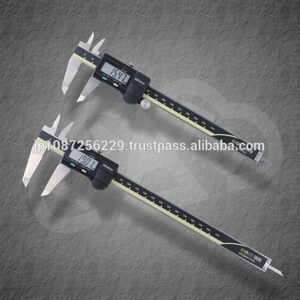

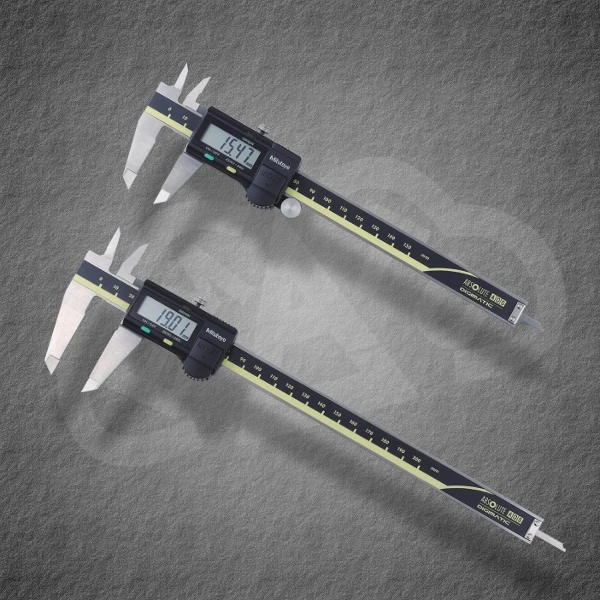

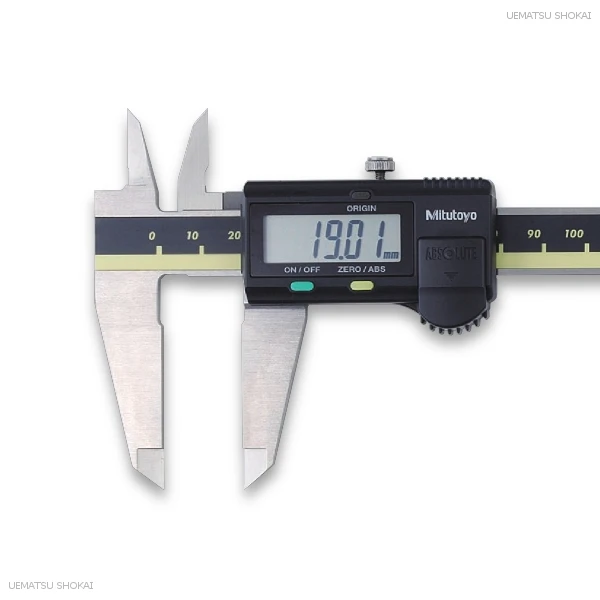

Mitutoyo Digital Vernier Caliper made in Japan
ABSOLUTE Digimatic Caliper
500 Series - with exclusive ABSOLUTE Encoder Technology
New ergonomic design with fnger rest.
- Usable in workshop conditions exposed to coolant, water, dust oil.

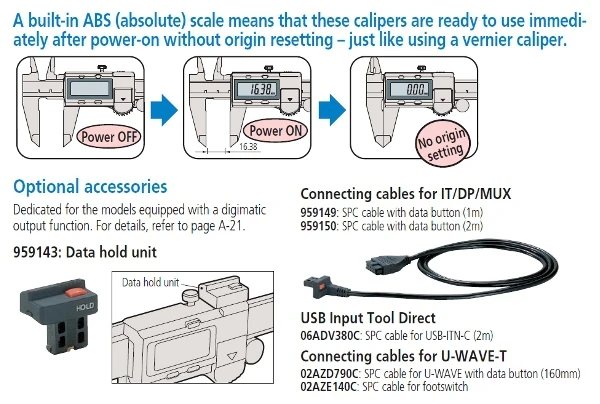

- ABS bottun alow the display to be Zero-Set at any slider position.
- Also allows return to the absolute (ABS) mode and display of the true position from the origin (usually jaws closed point).
- Smooth and comfortable slider movement
- 18,000 hours battery life
- Allows step measurement
- Carbide-tipped jaw
- Optimal for rough finished parts, castings, grinding stones, etc
- Allows output mesurement data into PC
Large and clear LCD readout.
Accuracy : ±0.02mm (≤200mm), ±0.03mm (≤300mm)
(excluding quantizing error)
Resolution : 0.01mm or .0005"/0.01mm
Repeatability: 0.01mm
Display : LCD
Scale type* : ABSOLUTE electromagnetic induction linear encoder
Max. response speed: Unlimited
Battery : SR44(1 pc), 938882
for initial operational checks (standard accessory)
Battery life : Approx. 3.5 years under normal use (18,000 hours for continuous use)
****************************************************************************************************************************
Other Products

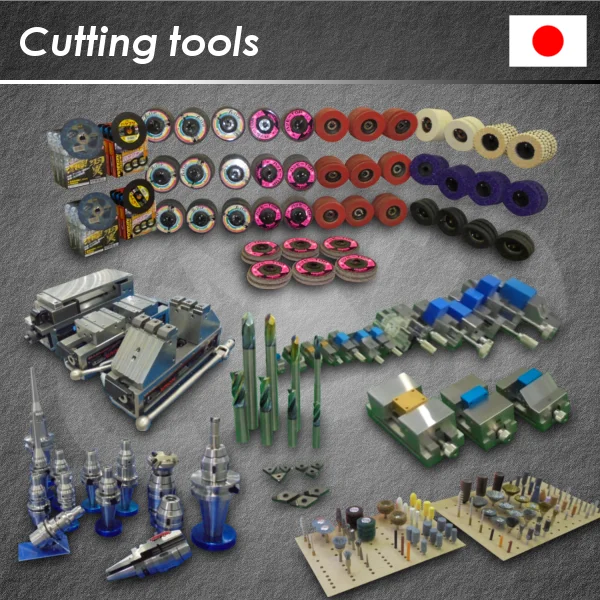

Other products we handle: cutting tools
Other products we handle: measurement tools
Other products we handle: bearings
Other products we handle: conduction equipment
Uematsu Shokai's Staff
Ayane Akimoto Noeru Suzuki
UEMATSU SHOKAI CO., LTD. was established in 1950 as a machine tool trading company.
Centered at the head office in "Sendai , Japan", we have built a 12 hub network that encompasses the Tohoku area.
We currently are in business with 800 client companies and approximately 1000 suppliers. Beginning with machine tools such as lathes, we supply Tools/Motors such as Drill and Micrometer, Industrial equipments/Bearing such as Pneumatics, Hydraulics, and Transmissions such as Chain. Recently, because of especially high demand, we are offering a wide selection of Environmental machines.
We always strive to provide speedy and courteous service.
Through our promotion of technology and information exchange to transcend divisions in regions and business categories, we aim to actively support manufacturing industries.
Looking ahead, as a trading company of Craftsmanship network, we will continue to endeavor and take on all challenges.

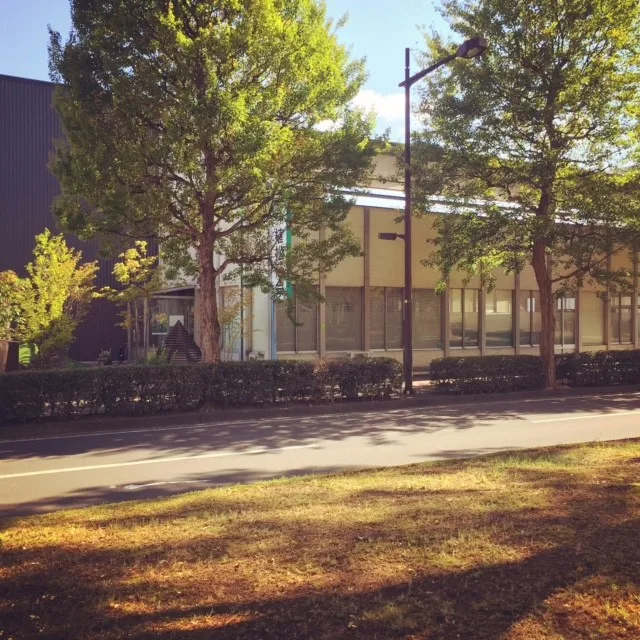

Office view
