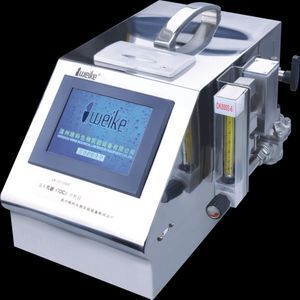

portable online and offline TOC analyzer for pharmaceutical industry

Supplier: HM Machinery Manufacture Co., Ltd.
Region: Shanghai, China
Contact: Mr. Peter Feng
Price: $6074.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	ShangHai;	Detection limit:	0.001-1.5mg/l;
Power:	220V;	Response Time:	Within 10 Minutes;
Model Number:	1000S;	Place of Origin:	Shanghai China;
Brand Name:	WK;	Packaging Detail:	In carton;
Application:	Liquid Sample;	Payment Terms:	L/C,T/T,Western Union;
Supply Ability:	20 Set/Sets per Quarter;

Product Description

Working Principle

The organic matter in the sample is oxidized into carbon dioxide under the effect of ultraviolet and titanium dioxide.Determination of carbon dioxide by Electrical Conductivity Detection Technology,Total carbon and conductivity of samples after oxidation of Oxidation Reactor by Electrical Conductivity Sensor determination of Total inorganic carbon in samples without oxidation of oxidative reactors by Rate Sensors,Get the total organic carbon in the sample.(TOC=TC-TIC).

• Rapid, precise, accurate and reliable element determination.

• Three-level-password authentication prevents misoperating.

• Detection can be either online or offline.

• Automatic tubing cleaning.

• Low maintenance through smart design.

• Compact and hand-carry design frees work space and is easy to carry.

• High performance CPU.

• User friendly touch screen with 640 x 480 dot matrix colour.

• With a RS232 interface and a printer interface.

• UV light and pump tubing can be replaced externally.

Product Information
Size (L x W x H)	40 x 25 x 23cm
Components	• Online detection device • Three-way diverter • Oxidation reactor • Delay tube • Conductivity sensor • Peristaltic pump • Micro processing controller and electronic circuit board • Output of an excuse
Key Applications	• Drug production enterprise • Medical device manufactures • Electronic industry • Purified water • Water for injection • Deionized water detection

Technical Information
Power Supply	220V ± 22V / 50Hz ± 1Hz
Rated Power	95W
Detection Limit	0.001 mg /L
Error	± 5%
Repeatability	≤ 3%
Detection Range	0.001 mg / L ~ 4.000 mg / L
Analysis of Time	4 minutes
Response Time	≤ 10 minutes
Sample Flow Rate	0.5 ml / minute
Sample Temperature	1°C ~ 95°C
Environment Temperature	10°C ~ 40°C (± 5°C/d)
Humidity	≤ 85% RH
