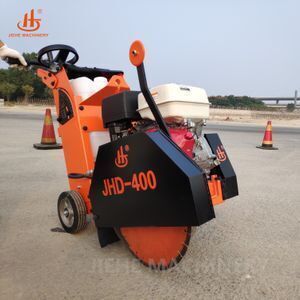

16" Concrete Cutter / Concrete Saw Cutting Machine - Gasoline Honda

Product details
Brand Name:JIEHE;appplication:asphalt and concrete cutting;
Cooling system:water spray;Weight:112kgs(247Ibs);
Applicable Industries:Construction works ;After-sales Service Provided:Engineers available to service machinery overseas;
Power Source:Honda GX390;Warranty:1 Year;
Single package size:94X61X109 cm;Product name:16" Concrete Cutter / Concrete Saw Cutting Machine - Gasoline Honda;
Single gross weight:112 KG;Cutting depth:4/5/6/9 inches;
Selling Units:Single item;Engine:Honda GX390;
Colour:Yellow ,Orange,Black,White;water tank capacity:25L(5.5us gal);
Package Type:The shipping cost offered base on by sea , if you need to by air or by express please contact supplier Fumigation-free,strong enough for ocean shipping, plywood cases or steel frame with carton cover Shipping dimensions(mm):930*700*1240 30 sets 1 container;Certification:CE;
Place of Origin:Jiangsu China;Voltage:380V;
Running Speed:150m/h(492ft/h);Dimension(L*W*H):1220*600*1000mm(48*24*39inches);
Saw size:300/350/400/450/500mm(12/14/16/18/20 inches);Running Speed:150m/h;
UNIQUE SELLING POINT:Easy Maintenance;Package Preview:https://sc02.alicdn.com/kf/HTB1LjkgV7PoK1RjSZKbq6x1IXXaX.jpg_640x640.jpg,https://sc01.alicdn.com/kf/Had9538346ec148ca8b834523fbb9d627p.jpg_640x640.jpg;
Rotary Speed:3600;Feature:Emergency Shut OFF;
Condition:New;Cutting Depth:0-175mm(0-0.7in);
Power(W):13HP;



16" Concrete Cutter / Concrete Saw Cutting Machine - Gasoline Honda

Product Description

Compact,versatile Jiehe concrete floor saw is ideal for cutting to lay pipe,expansion joints in concrete floors and cutting channels for laying cable.

JIEHE has variety Walk Behind Saws and Self-propelled Saws.We provide from 0 to 400mm(16'') Cutting depth to meet your different job site requirements.









Features+Benefits

  • 13HP Honda GX390 engine makes high effiency
  • Many power options to fit your application(Honda,Kohler,Siemens,Diesel)
  • Shockproof handle design for the comfortable long lasting operation, improve cutting performance.
  • All saws are bulit with durable saw shaft,spcial processing,good quality bearing assemblies
  • The blades can be replaced in three minutes
  • Water tank available for dust suppression
  • Left or right side sawing

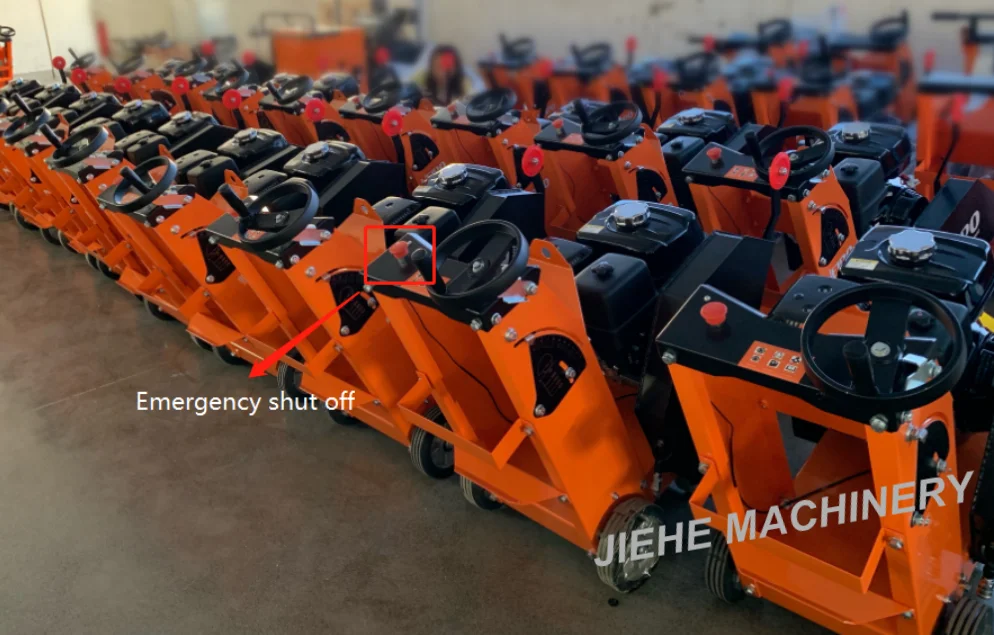

  • With emergency Shut off
  • 0-175mm adjusting cutting depth
  • Four-wheel algnment to achieve straight cutting
  • Accepts 12in.,14in.,16in.,18in. and 20in.blades
  • Adjust the handle to meet your comfortable height
  • Lifting hook standard on all models
  • Blade not included

Product Detail



Technical Specification

Model

         JHD-400

JHD-400D

JHD-400K

 JHD-400E

Engine

13 HP Honda

 GX390

CHANGCHAI 186F DIESEL

KOHLER CH440

5.5KW Siemens

MOTOR

Cutting depth(mm)

125-150

125-150

125-150

125-150

Rotating speed(R/min)

3600

3600

3600

3600

Blade diameter(mm)

400-500

400-500

400-500

400-500

Overall dimension(L*W*H)(mm)

1220*600*1000

1220*600*1000

1220*600*1000

1220*600*1000

Shipping Size(L*W*H)(mm)

1230*610*1010

1230*610*1010

1230*610*1010

1230*610*1010

Operating weight(kg)

112

123

112

126

Shipping weight(kg)

130

138

130

141



Our Saw Blade



Packaging & Shipping

Applications:

  JHD-400 can used in various working sites,such as pavement ,driveways,bridges,gardens and indoor.Concrete saw with deep cutting depths and superior accuracy.

We have provided customized products for constructions of the Hong Kong-Zhuhai-Macao Bridge, including scarifying machines to ensure flatness of bridge joints as well as custom-made dust-free cutting machines to avoid secondary pollution to construction sites. They have tremendously saved construction time and perfectly coordinated with progress of the project.





Warranty

Manufacturer's Warranty :12months parts

Certification



Related Products





T/T 30% deposit,the balance against the copy of B/L Or L/C at sight.



 Work shop

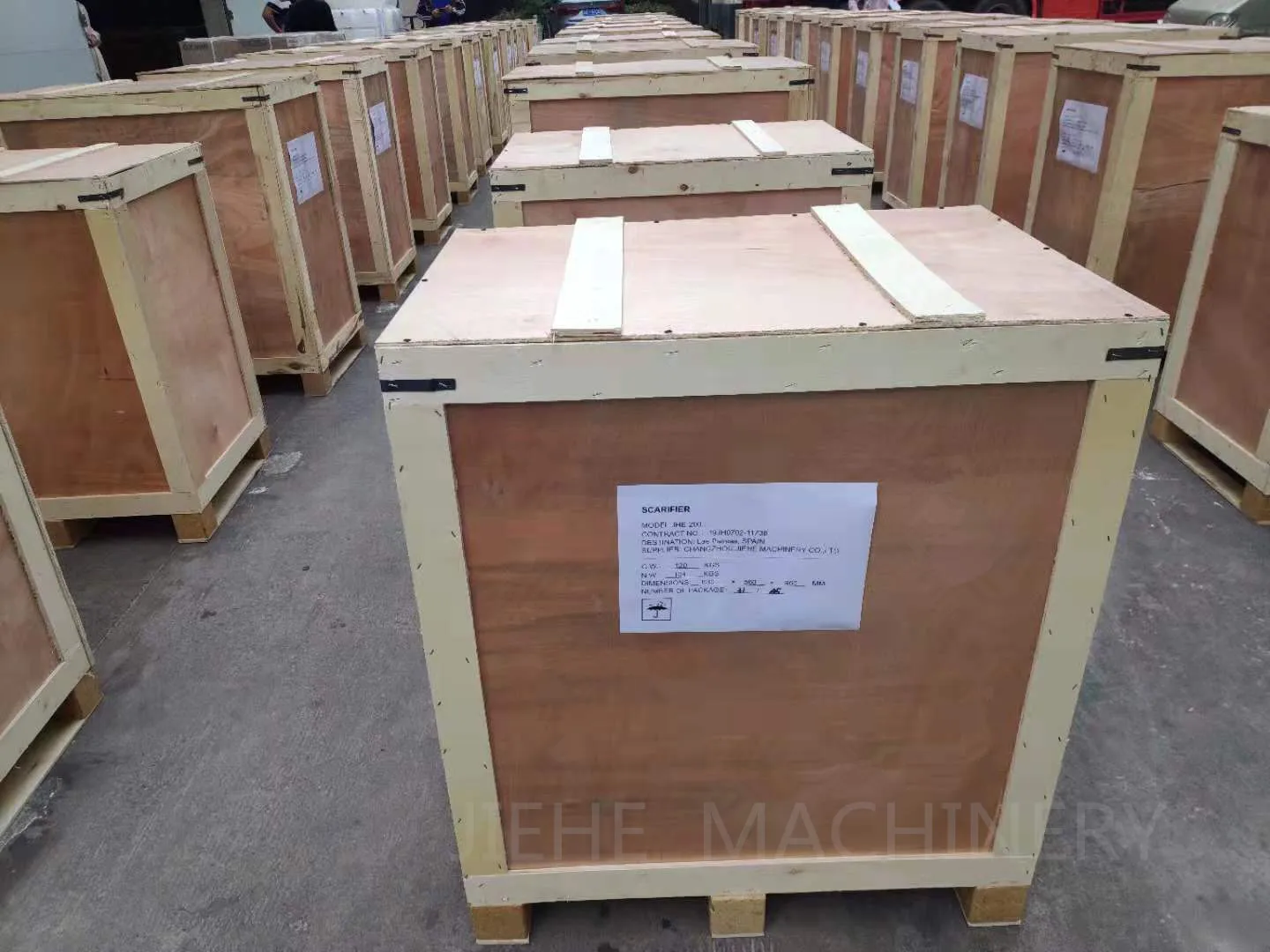

Packaging

Our packaging is iron frame and wooden generally.If customer have other requests, we will try to accommodate.

JHD-400 packaging dimensions(mm) is: 1230*610*1010

30 sets 1 container normally.
