CNC Milling Machine VMC1060 Cnc Vertical Machining Center VM

Product details
Product name:3-axis Vertical Cnc Machining Center;Dimension(L*W*H):3340*2800*2700;
Delivery Detail:15 days;Brand Name:PULUTE;
Condition:New;Warranty:12 Months;
Port:qingdao;Power(W):11/15kw;
The spindle taper hole:BT40;X/Y/Z max. Rapid traverse:20/20/15;
The spindle maximum speed:8000;Payment Terms:T/T;
Certification:CE;Voltage:380V;
Controlling Mode:Cnc Control;Model Number:VMC1060;
Supply Ability:10 Set/Sets per Month;X/Y/Z axis travel:1000*600*600;
Machine Type:Vertical Machine Centers;Place of Origin:Shandong China (Mainland);
X/Y/Z max.feed speed:10000;After-sales Service Provided:Overseas third-party support available;
Weight:7000kg;The workbench T slot:5-18*120;
Type:Vertical;Table size:1300*600;
Product Description

 CNC Milling Machine VMC1060 Cnc Vertical Machining Center VMC1060




Specification

Unit

VMC1060

Table size

mm

1300*600

Table maximum load

kg

800

X/Y/Z axis travel

mm

1000*600*600

Distance between spindle center and column guide surface

mm

600

Distance between spindle end face and worktable surface

mm

180-780

X/Y/Z max.feed speed

mm/min

10000

X/Y/Z max. Rapid traverse

m/min

20/20/15

The spindle maximum speed

r/min

8000

The spindle taper hole

Type

BT40

Spindle motor

Kw

11/15

X/Y/Z axis servo motor

Kw

2.5/2.5/2.5

X/Y/Z motor connection



Direct

X/Y/Z guide rail form



Slide

The workbench T slot

Mm

5-18*120

Repeat positioning accuracy

Mm

±0.004

Tool magazine



Carousel/Disc type

Tool capacity





16Hats/24disk

Maximum tool weight

Kg

8

Maximum tool length

Mm

250/350

Electric capacity

Kva

16

Machine size (L*W*H)

Mm

3340*2800*2700

Net. Weight(about)

Kg

7000

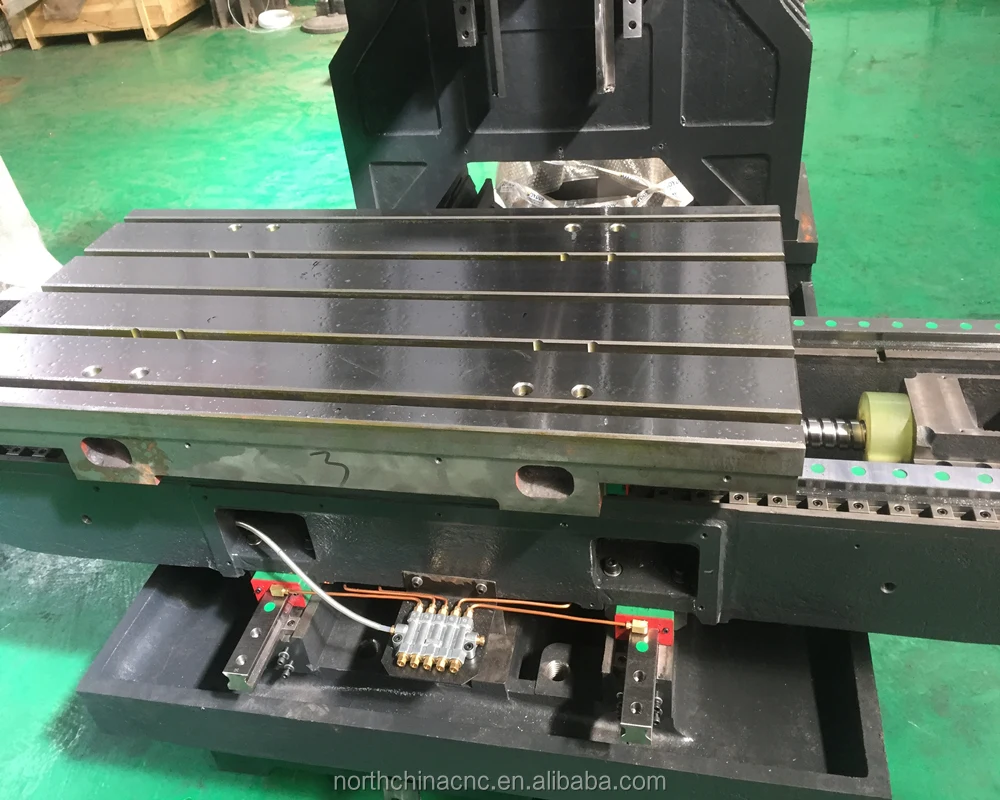

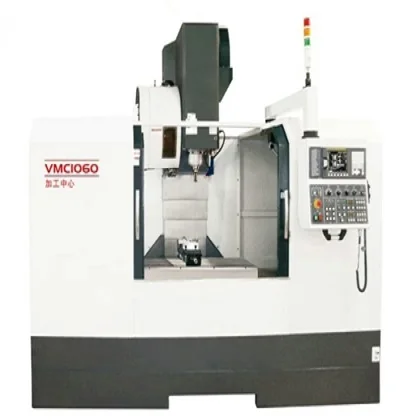

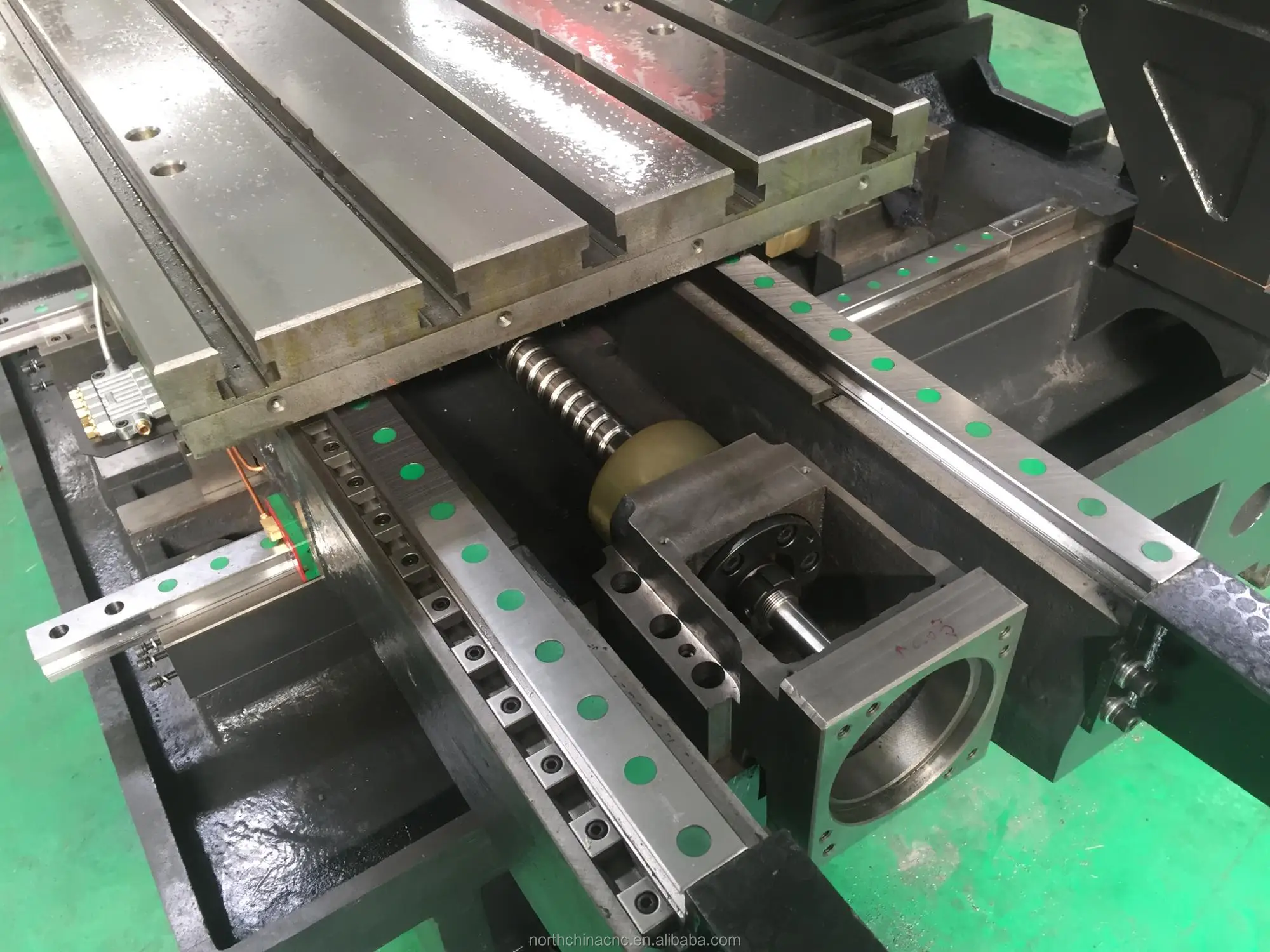

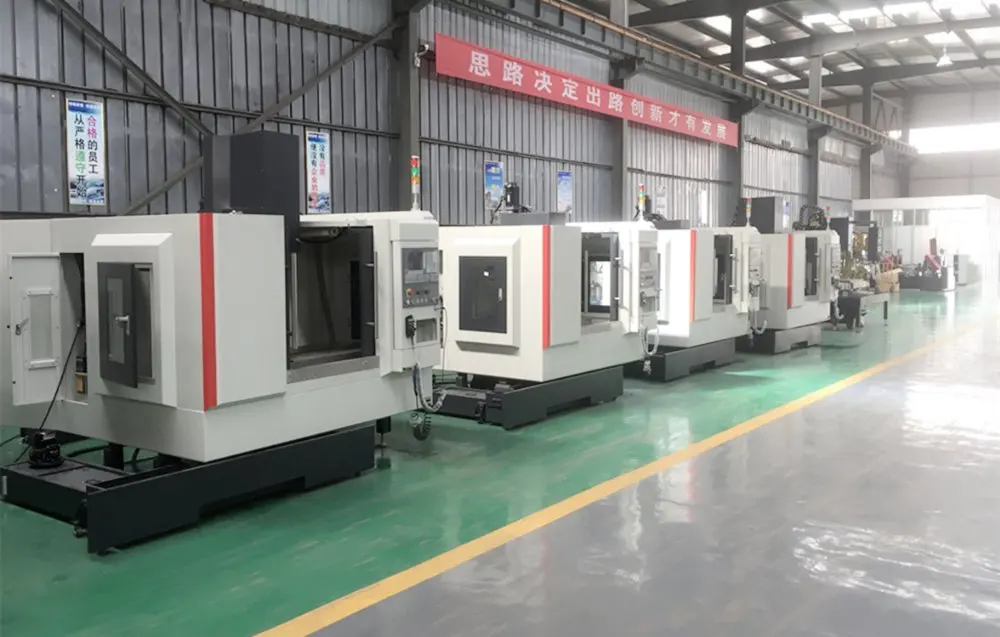

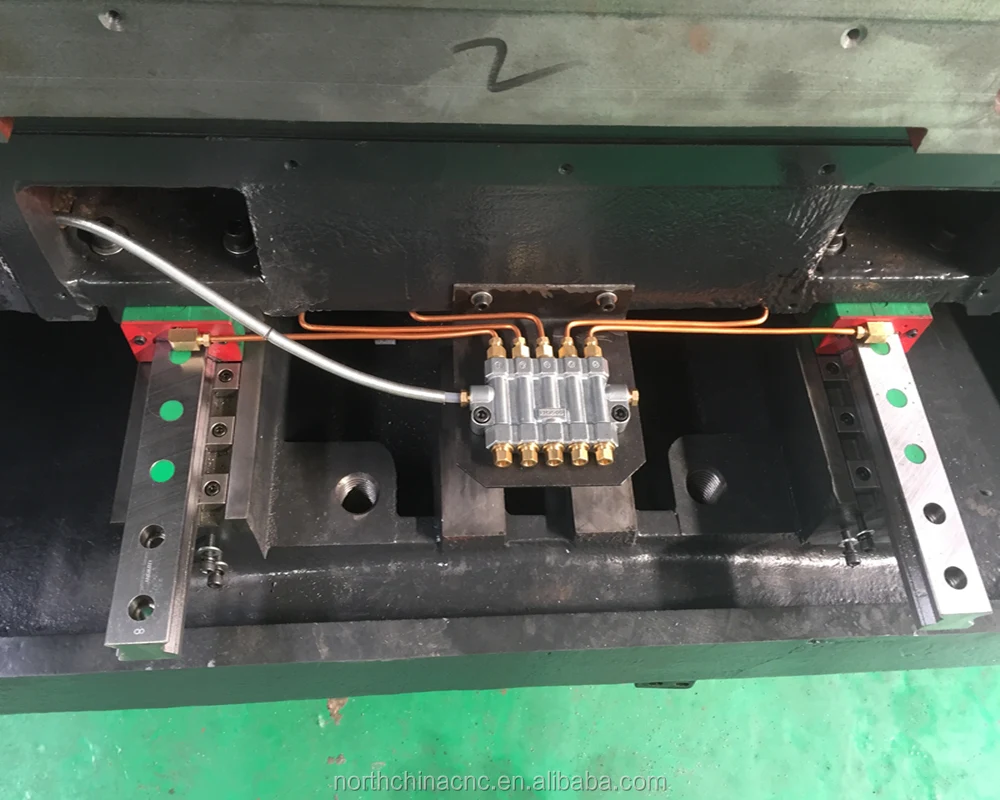

1.jpgIMG_0656_IMG_0662_IMG_0666_IMG_0663
Packaging & Shipping

Packaging Details     export standard package

Delivery Time          15days
Company Information

       Tengzhou North China CNC Machine Tool Co. Ltd. is a company dedicated to extreme metal cutting machine development, design, manufacturing, sales and one of the import and export rights, under the jurisdiction of the milling and drilling division division, turning division, sawing machine division, forging machine division, metal forming machine tool division. The metal cutting machine tool includes two categories: one is the CNC machine tools, including CNC lathe, CNC milling and boring machine, vertical machining center, horizontal machining center, CNC drilling machine, high-speed copying machine, laser cutting machine, the quality of centering and all kinds of CNC machine tools and CNC turret, the other is the general machine tools, including ordinary lathe, radial drilling machine, vertical drilling, drilling and milling machine, metal band sawing machine, grinding machine, hydraulic machine, horizontal boring machine, automatic lathe, and a variety of common plane accessories, a total of more than 100 species, more than 100 kinds of specifications. The market covers the whole country and exports more than 30 countries and regions.

       Since the founding of the company, the company holds the "achievements of employees, development enterprises, service customers, return social" enterprise values, to create a well-known brand in the industry. The main products of the company have entered the core manufacturing fields of automobile manufacturing, national defense and military industry, aerospace, rail transportation, hardware mould and other key industries. In recent years, the company has begun to undertake domestic and foreign mechanical engineering and domestic and international bidding projects. Has to include the China Railway Group, Chinese oil, CNOOC, treatment group, BMW brilliance, FAW Group, BYD automobile, industry group, Shaanxi, Hebei iron and Steel Group and other business services.

        Dedication, team, innovation "is the cultural spirit of the company." to create a famous brand in China and to build a first-class enterprise "is the goal of the company's unremitting pursuit.
