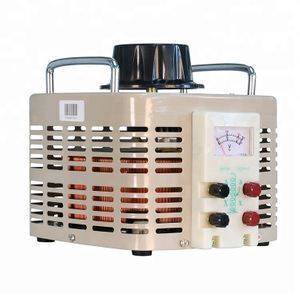

TDGC2 10KVA 40 Amp Ac Variac 230V Transformer

Supplier: Yueqing Yomin Electric Co., Ltd
Region: Zhejiang, China
Contact: Ms Ms Linda
Price: $146.16 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Package Type:	Cartons or wooden cases with built-in plastic foam;
Selling Units:	Single item;	Type:	TDGC2-10;
Current Type:	AC;	Connection method:	auto-coupling;
Applicable frequency:	50/60Hz;	Package Preview:	https://sc02.alicdn.com/kf/HTB1j0VYmQomBKNjSZFqq6xtqVXaY.jpg_640x640.jpg;
Model Number:	TDGC2-10;	Voltage Setting:	Manual Control;
Quality Assurance:	18Months;	Single package size:	37X31X50 cm;
Brand Name:	YOMIN;	Input voltage:	220V/230V/240;
Output Current:	40A;	Voltage change rate:	±1%;
Single gross weight:	34.5 KG;	Capacity:	10KVA;
Usage:	voltage regulator;	Phase:	Single Phase;
Output voltage:	0~250V AC;

TDGC2 10KVA 40 Amp Ac Variac 230V Transformer

Pressure regulator can be widely used in industry (such as chemical industry, metallurgy, instrumentation, electromechanical manufacturing, light industry, etc.), scientific experiments, public equipment, household appliances, in order to achieve pressure regulation, temperature control, speed regulation, dimming and power For control purposes, it is an ideal AC voltage regulator. Mainly used for motor testing, transformer testing. Electric furnace temperature control, rectifier equipment, generator excitation, etc., are widely used in machinery manufacturing, chemical, textile, communications, military and other industries. The regulator regulates the output voltage steplessly, smoothly and continuously under load conditions.

type	Max output capacity (KVA)	Rated input voltage(V)	Rated output voltage (V)	Max. output current(A)	Overall size (W * D * L)(mm)	PCS/ CTN	Package size /set (WDL)	Net weight (kg)	Gross weight
TDGC2-0.2	0.2	220V	0-250V	0.8	11x13x12	12	49x28x30	2.2kg	28kg
TDGC2-0.5	0.5			2	13x15x14	6	52x20x34	3.2kg	20kg
TDGC2-1	1			4	17.5x20x17	4	43x25x50	5.5kg	24.5kg
TDGC2-2	2			8	17.5x20x19	4	43x25x50	7.2g	31kg
TDGC2-3	3			12	20x23x20	2	49x29x27	10kg	20.5kg
TDGC2-5	5			20	24x27x26	1	33x27x32	15kg	16.2kg
TDGC2-7	7			30	24x27x26	1	37x28x31	15.5kg	19.5kg
TDGC2-10	10			40	24x27x42	1	37x31x50	30kg	34.5kg
TDGC2-15	15			60	24x32x58	1	37x31x64	46.5kg	52kg
TDGC2-20	20			80	24x32x58	1	37x31x64	50kg	58kg
TDGC2-30	30			120	24x32x62	1	37x31x68	56kg	65kg
TSGC2-1.5	1.5	380V	0-430V	2	33x37x30	1	35x40x36	15kg	18kg
TSGC2-3	3			4	34x4x42	1	42x42x48	36kg	38kg
TSGC2-6	6			8	34x4x58	1	42x42x64	80kg	83kg
TSGC2-9	9			12	34x4x58	1	42x42x64	86kg	88kg
TSGC2-15	15			20	34x42x75	1	42x43x80	105kg	108kg
TSGC2-20	20			27	34x42x75	1	42x43x80	110kg	115kg
TSGC2-30	30			40	34x45x114	1	42x46x125	115kg	122kg
