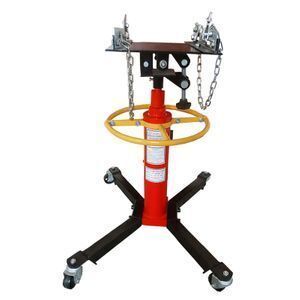

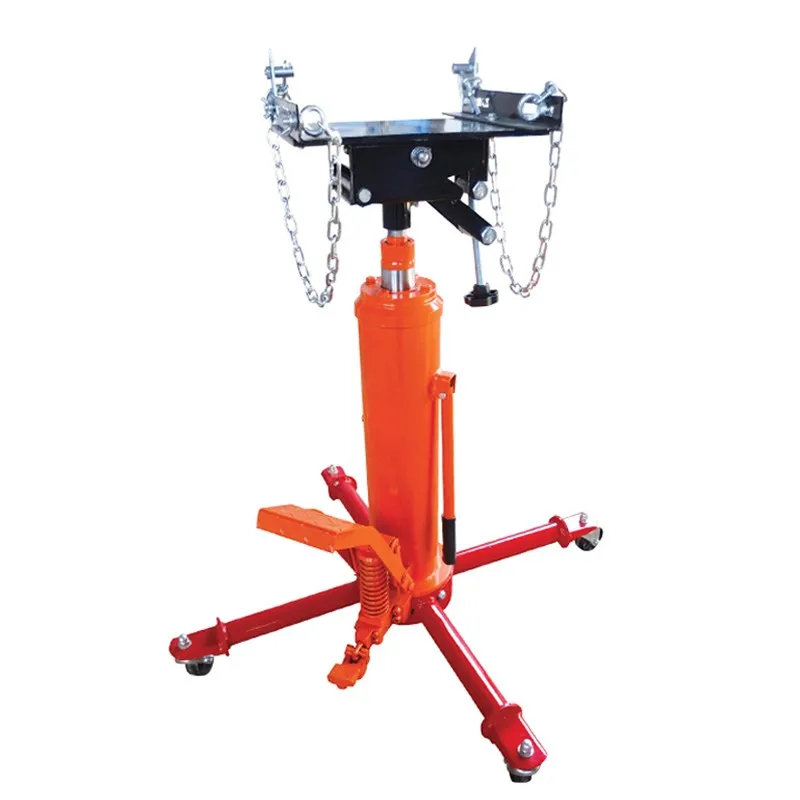

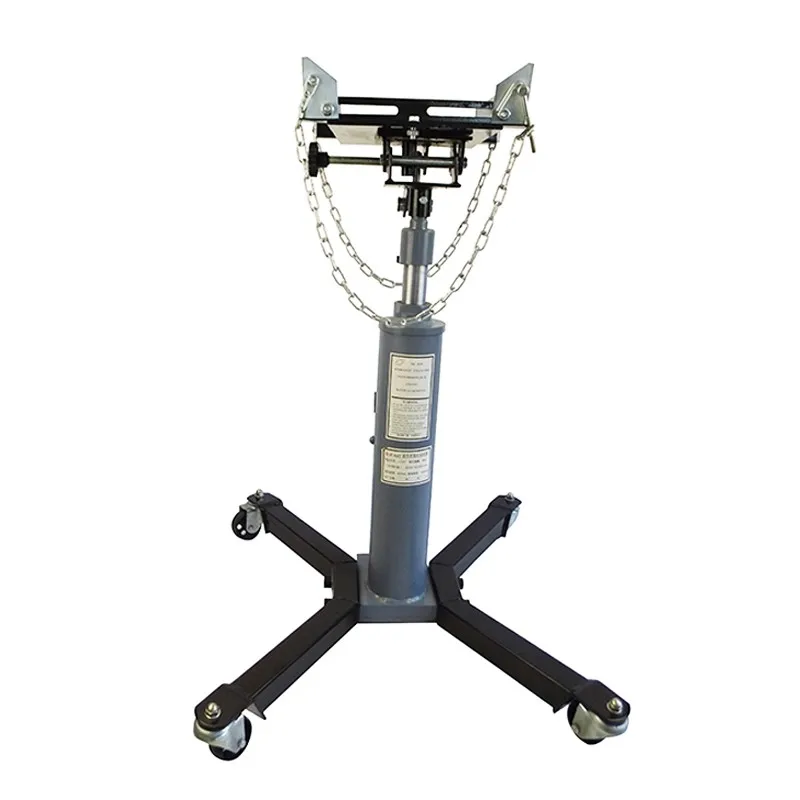

0.5T high Lift Hydraulic Telescopic Transmission Jack

Features

* Heavy duty solid alloy steel construction
* 4-legs swivel casters for easy movement
* Release valve is spring loaded to automatically halt lowering action when let go
* 360° Swivel casters for maneuverability
* Wide Base for stability and balance
* Many designs for your choice

Five Reason For Choosing This Product:

1) Easy to Move: The jack is equipped with four 360° swivel wheels, which is convenient to move it to anywhere.
2) Lifting Range: The telescopic two-stage hydraulic ram enables the jack to rise 830mm - 1800mm .

3) Large Load Capacity: The maximum load of this jack is 1100LB (0.5 TON), can lift more heavy object.
4) Easy to Operation: The jack is equipped with the pedal and release valve, all you need to do is step on the pedal to lift the jack and remove the release valve make the jack down.
5) Safety Performance: The jack includes long safety chain, and release valve is spring loaded to automatically halt lowering action when let go, ensure the safety of the jacks in use.

Regulating valve

The adjustment valve uses a precision screw and a nut with a ball bearing to flexibly adjust the angle of the head tray.

Tray and chain

High quality pallets, adjustable, hook-type design for great applicability.

Single plunger

High quality single plunger, strong pressure resistance, saving effort when pedaling

Pull ring and oil cylinder

Auxiliary pull ring design, easy to push and pull during operation, convenient and durable;

The oil cylinder is an overall high-quality cylinder, saving labor and lifting speed.

Four-legged chassis and Universal wheel

The four-legged chassis is more stable, and the four metal universal wheels are more convenient to rotate 360°

Application

transmission jack are used for loading and transporting components such as gearboxes, engine front and rear axles.

Fault: pressure relief or not rising

Treatment method: first check if the pressure reducing valve is closed,if still depressurized or not rising after closing,then check the reverse side of the spring base loosen the hexagon socket head bolt to remove the spring and steel ball ,then use a suction rod to check if there is iron filings inside.Finally, the steel balls and springs are installed in turn.

warning

1. Be sure not exceed the rated capacity 1660LB
2.Be to load firmly on center of the transmission jack. If not, adjust the handle to close it.
3. After putting the load on it. Used safety chain
4. When lifting load, need work it, must use the safety stand.
5. There must be enough oil in the cylinder so that the cylinder can operate regularly.
6. When removal the transmission jack, the saddle unit must be at the lowest position
7. Keep the removal parts to avoid rusted.
