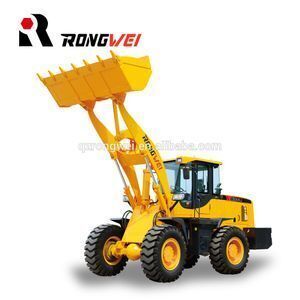

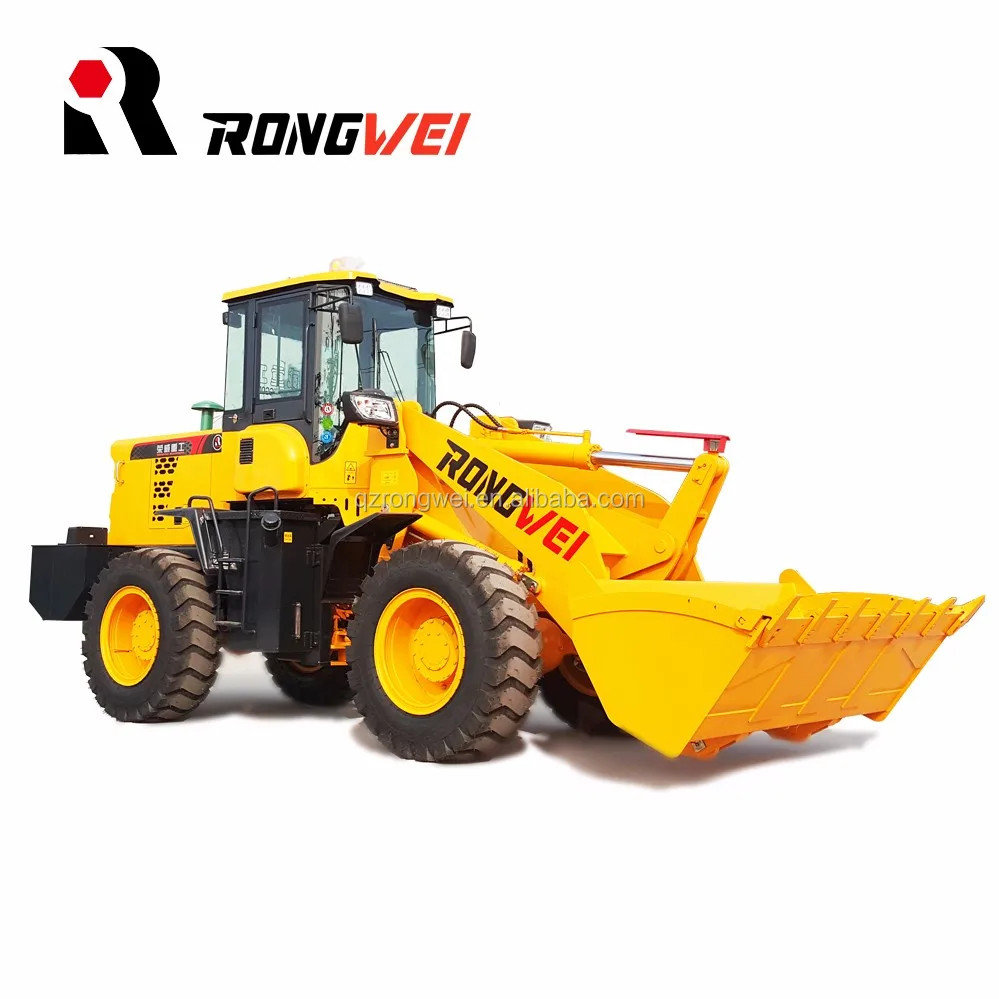

Construction Machinery High Quality zl30 Chinese 3 ton Wheel Loader

Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,trade assurance;Place of Origin:Shandong China;
Moving Type:Wheel Loader;Port:Qingdao;
Certification:SGS/CE;Dimension(Long * Breadth * High):6950*2400*3050mm;
Condition:New;Weight:9600Kg;
Tyre:17.5-25;Brand Name:Rongwei;
Type:Front Loader;torque converter:YJ315;
Color:Customized;Application:Building;
bucket capacity:1.8m3;Product name:ZL939E wheel loader;
Engine:Weichai DEUTZ;Delivery Detail:with in 15 working days after confirming the deposit;
Packaging Detail:Nude in container with triangle wood & 10mm wire one set loading in 40HC container;Power:92KW;
Supply Ability:100 Set/Sets per Month;Warranty:1 Year;
Rated Load:3600kg;Certification:CE ISO SGS;
After-sales Service Provided:Overseas third-party support available;
Product Description

Main specification and characters of ZL939E wheel loader

1.The equipped Weichai engine makes the complete machine have high power output and reserve power.
2.The power producer adopts a new-type high pressure pump to make the complete machine have ultra-strong capacity for lifting and scooping up materials. The application of coaxial flow amplifying technology makes the complete machine lighter and more flexible.the brake system adopts the advanced air over hydraulic technology and the four-wheel caliper-type brake , which is sensitive ,safe and reliable.
3.The wider and heavier front frame is equipped with a super swing arm combination. The rear steel plate frame made by one-step molding makes the machine structure more stable, stronger and more durable .
4.The new cab is enclosed with an extra luxury seat, an air heater and sound equipment. The human-oriented control device offers comfortable driving experiences. The wide field of vision reduces driver fatigue


SPECIFICATIONS of Rongwei ZL939E wheel loader






Performance
Rated load
3000Kg
Overall weight
9600Kg
Rated bucket capacity
1.7m3
Maximum tractive force
97KN
Maximum breakout force
≥127KN
Maximum grade ability
30℃
Maximum dump height
3200mm
Maximum dump reach
1260mm
Overall dimension (L*W*H)
6950×2400×3050mm
Minimum turning radius
5550mm




Engine

Model
Weichai DEUTZ
Type
In-line arrangement, water cooling, four-stroke
No. of cylinder-bore/stroke
6-108×125mm
Rated power
92kw--2400r/min
Maximum torque
500N.m
Min fuel-consume ratio
≤210g/kw.h


Transmission system
Torque converter
YJ315
Gearbox mode
Power shift normally engaged straight gear
Gear shift
2 forward shift  2reverse shift
Maximum speed
40km/h



Drive axles
Main reducing spiral
bevel gear grade 1reduction
Decelerating mode
planetary reduction,grade 1
Wheel base (mm)
2740mm
Wheel tread
1820mm
Minimum ground clearance
400mm

 Brake system
Service brake
air over hydraulic disc brake on 4 wheels
Parking brake
manual parking brake

  Tyre
Type specification
17.5-25
Front tyre pressure
0.4Mpa
Rear tyre pressure
0.35Mpa

ZL939E rated load 3ton; with Weichai Deutz 92kw engine, Cummins engine for option; Standard
1.configuration with levers control, pilot control / joystcik for option; Standard bucket capacity1.8m3
bigger bucket 2.5m3 for option; Standard dumping height 3200mm, higher 3500mm for option

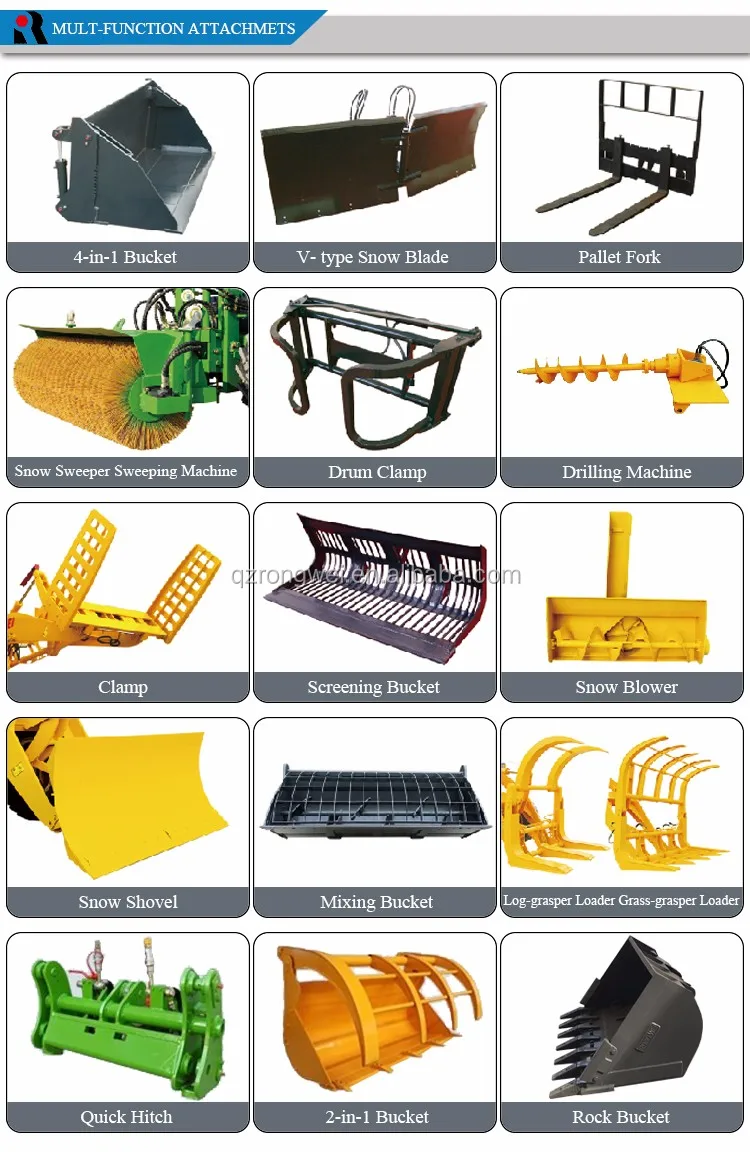

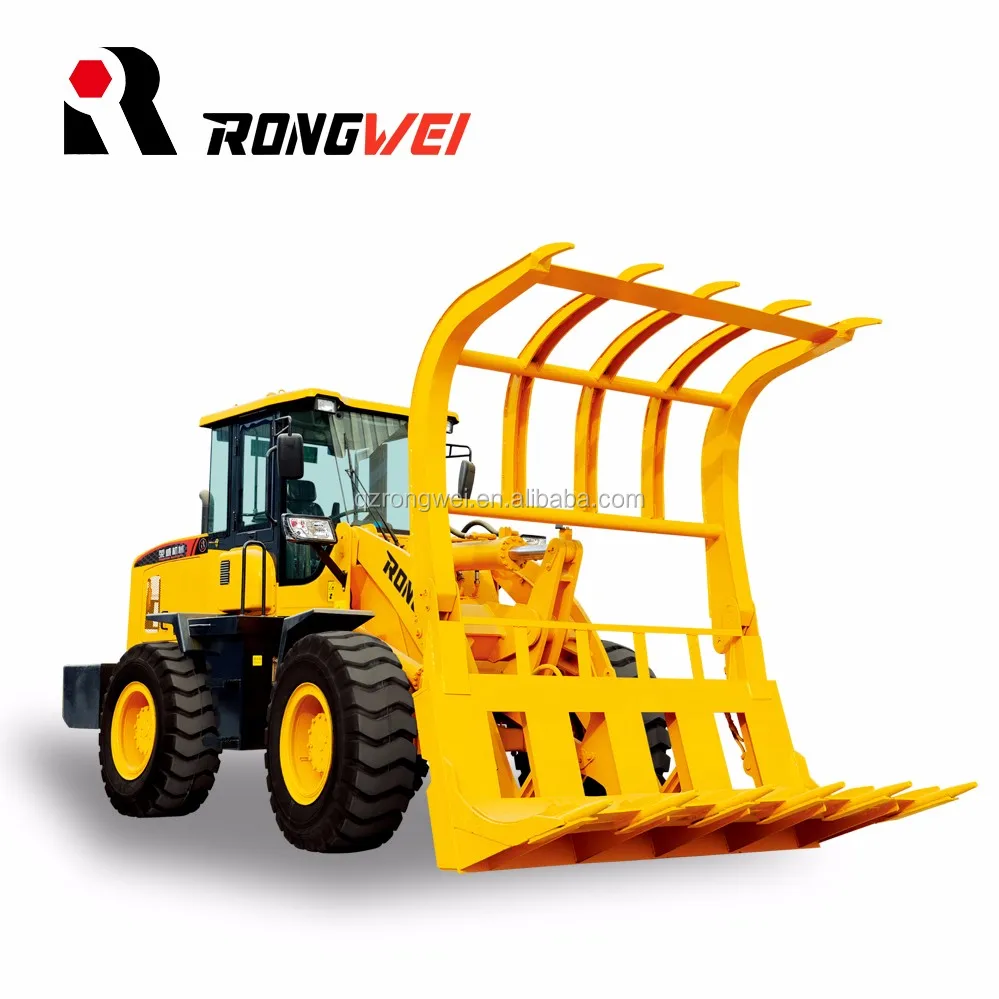

2.Various working devices of attachment are available,such as log fork, grass fork, pallet fork, snow
blade, rock bucket, sweeper, trencher, auger, mixer, backhoe arm etc.to meet different need.

3.Heavy load model, fully hydraulic steering system, power shift transmission and easier operation

4.Bucket can be leveled automatically, optimized working device, higher productivity

5. Comfortable for operating environment, new design cabin,high-grade seat, air-conditioner for option

Certifications

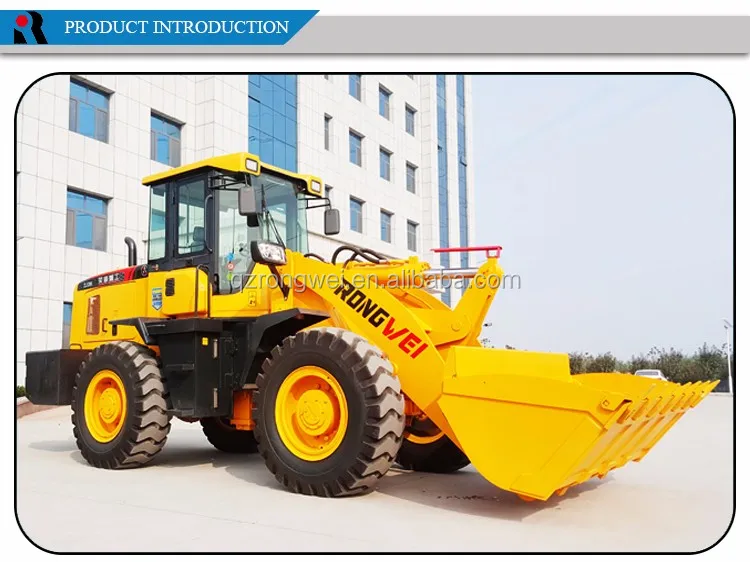

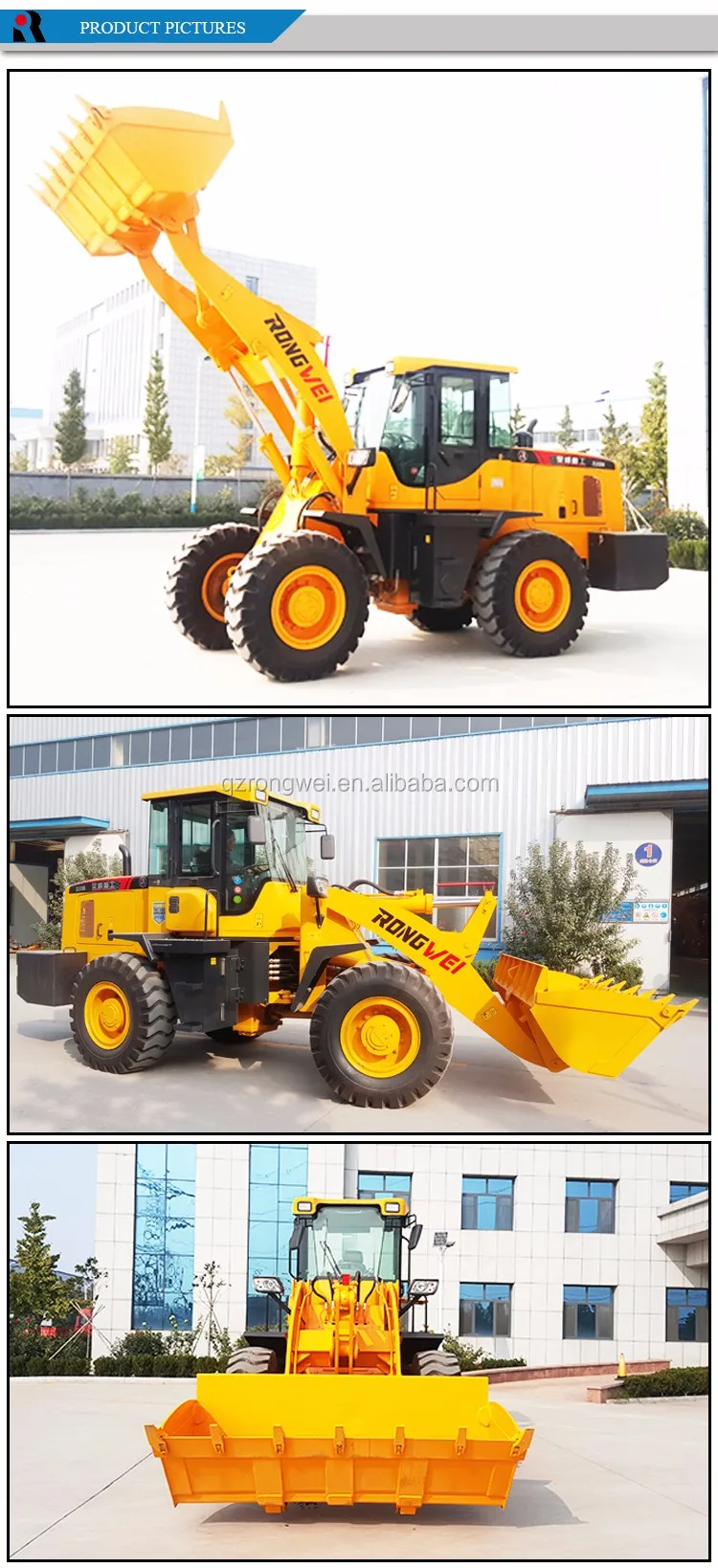

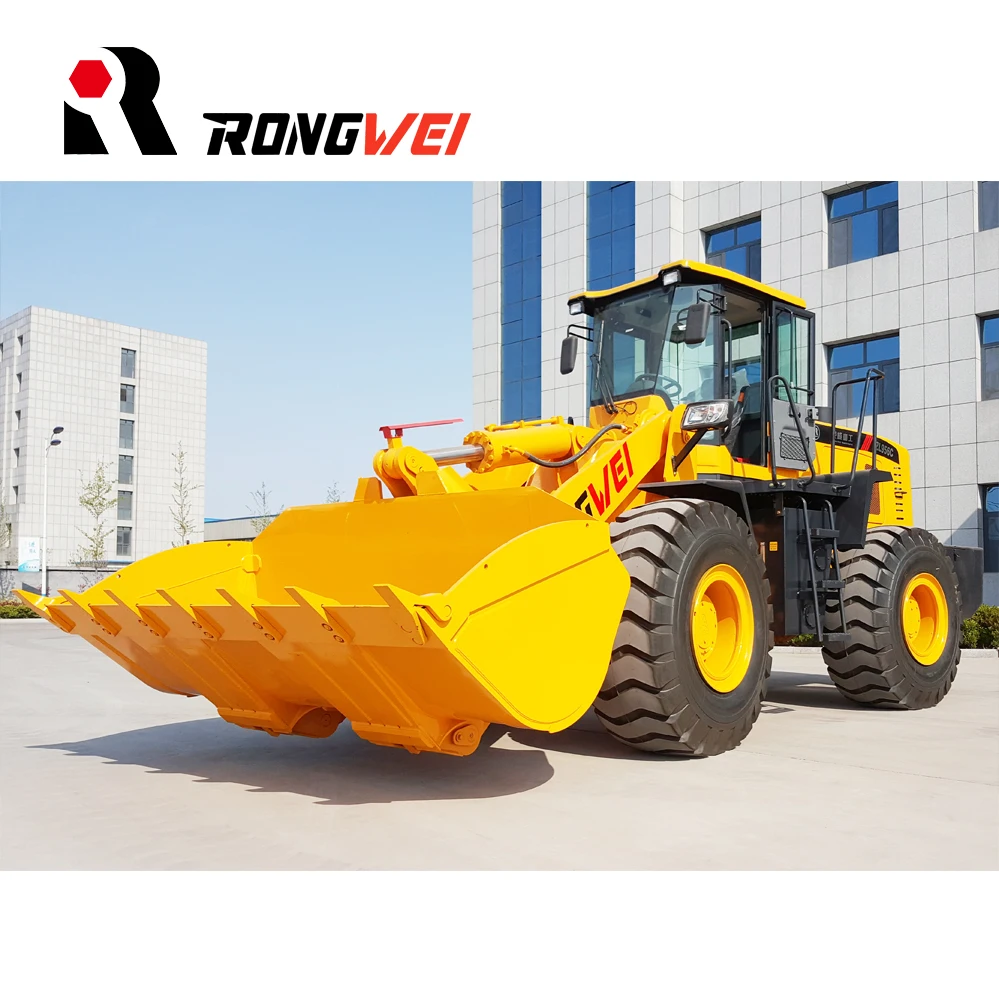

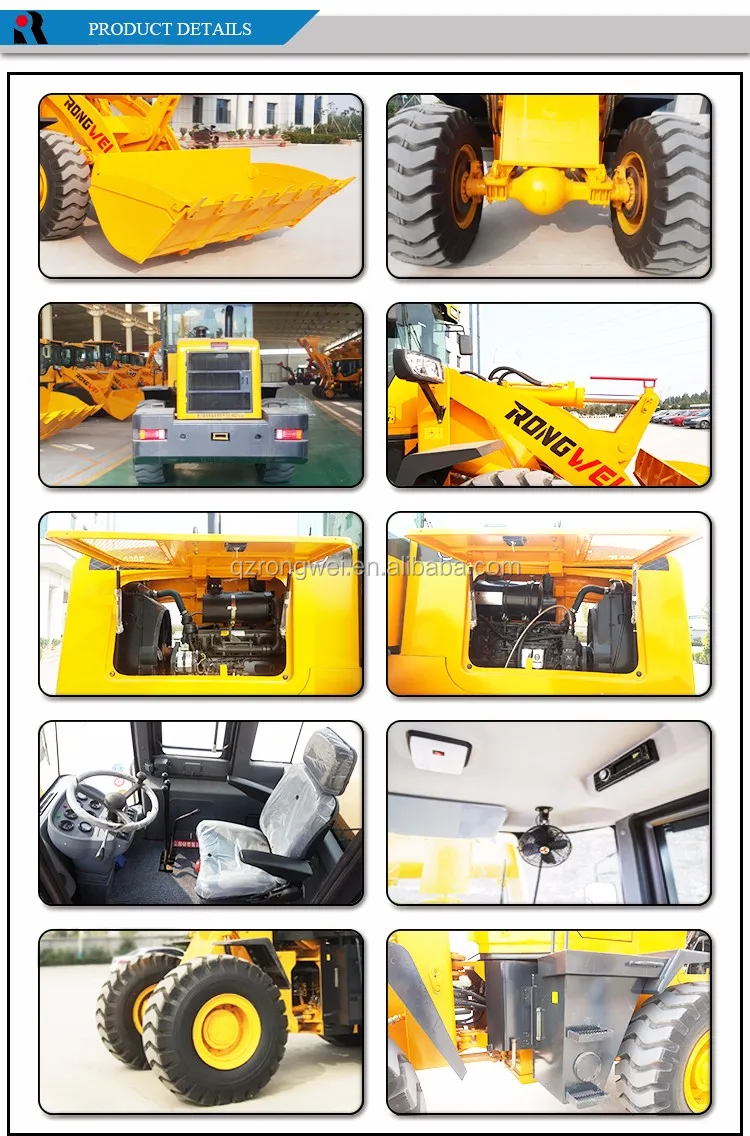

Detailed Images

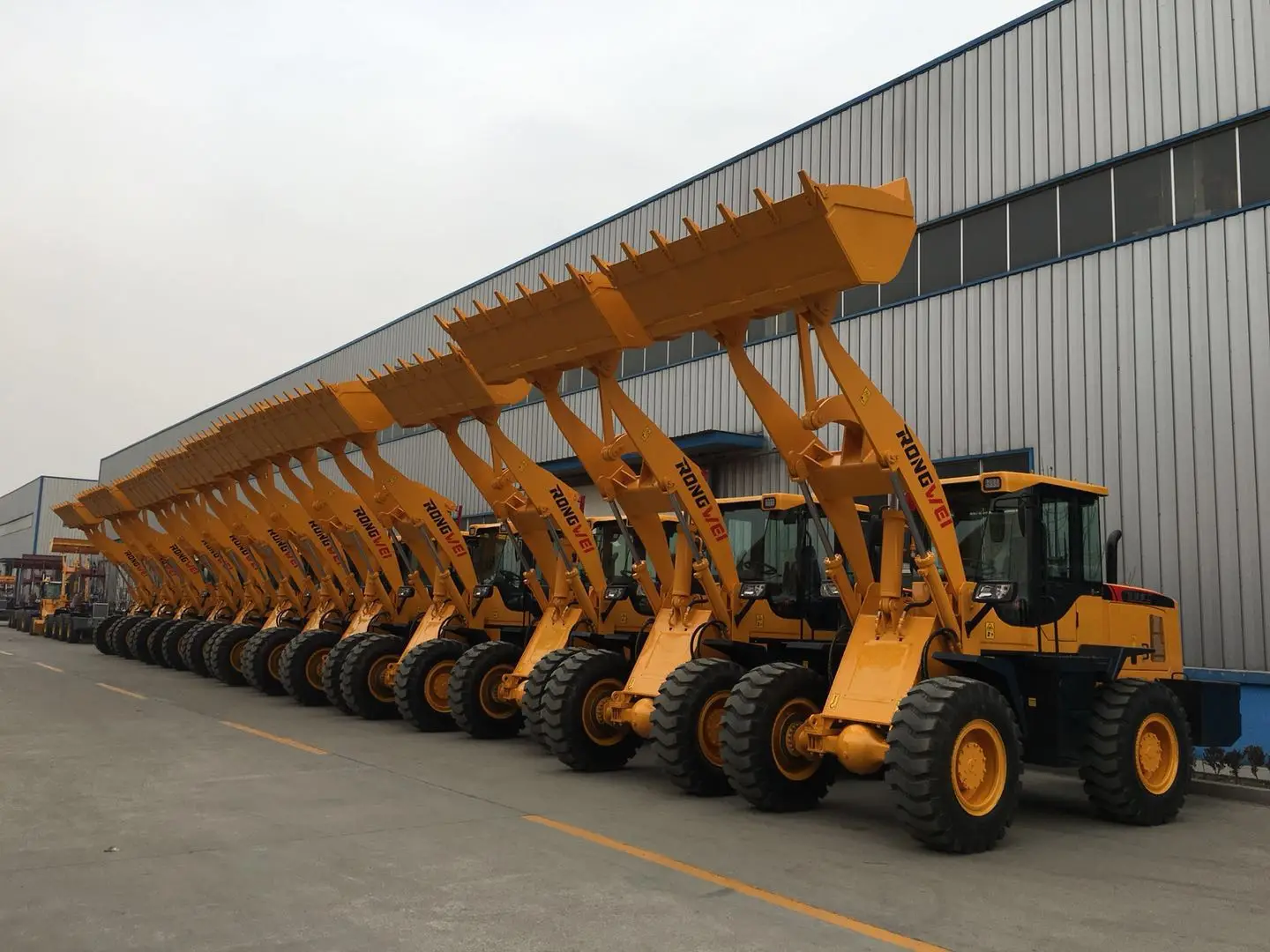

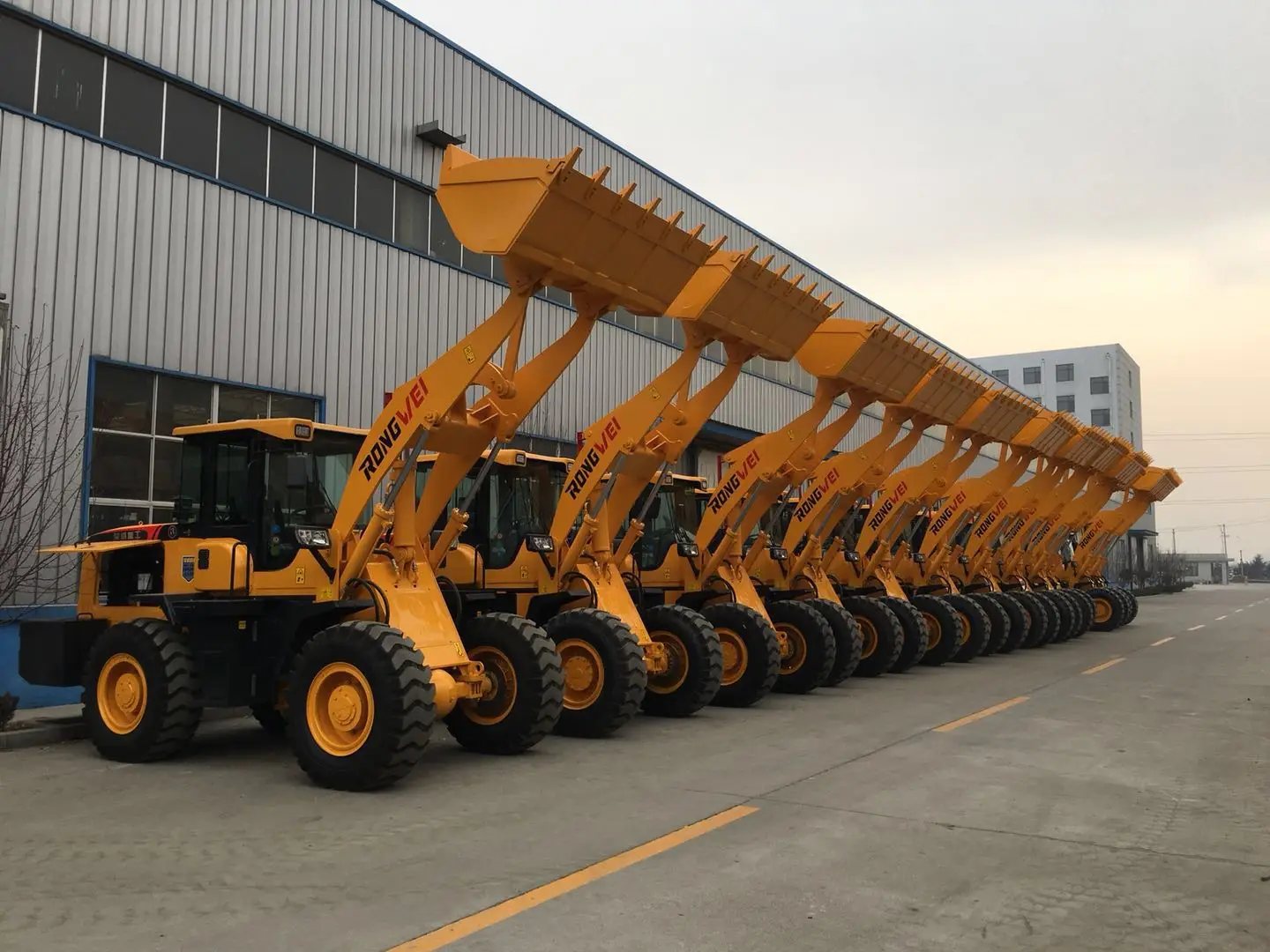

Our Company

Established in 2008, Qingzhou Rongwei Engineering Machinery Co., Ltd has be a professional manufacturer and export that is concerned with design, development and production of verity of wheel loaders from 1 ton to 5 ton capacity. Our factory located in Qingzhou, Weifang, Shandong province, with convenient transportation access. All of our products comply with international quality standards and has Approved Ce Certification and SGS certification. Rongwei verity of wheel loaders has got good reputation among our domestic and foreign customers.
Rongwei brand wheel loader is multi-functional, with more than 30 durable, safe and effective attachments design for different kinds of job. We are looking forward to provide you the most comprehensive field solution and the most perfect products and service in the most critical time.
Welcome your inquiry and visit.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

One set loading in one 40HQ container

two sets loading in 17.5m truck.
