Cotton Yarn Spinning Mill Ring Spinning Machine

Supplier: Qingdao Tongda Textile Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr jerry zhao
Price: $100000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Qingdao;	Payment Terms:	T/T;
Spinning Method:	Ring Spinning;	Place of Origin:	Shandong China (Mainland);
Brand Name:	TONGDA;	Supply Ability:	500 Set/Sets per Month;
After-sales Service Provided:	Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service,No after-sales service;	Spinning Type:	Ring spinning machine;
Certification:	ISO9001;	Application:	Ring spinning machine;
Production Capacity:	99.9%;	Dimension(LWH):	37600x1000x2300mm;
Weight:	10ton;	Automatic:	Yes;
Condition:	New;	No. Of spindles:	1008 spindles;
Warranty:	1 Year;	Suitable for Fiber:	cotton,poylester;
Power(W):	45KW;	Type:	Spinning Production Line;
After-sales Service Provided:	Engineers available to service machinery overseas;	Packaging Detail:	wooden cases;

Cotton Yarn Spinning Mill Ring Spinning Machine

Product Description

???Product Description

Products introduction:

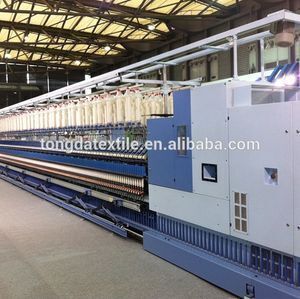

Model FA538 Ring Spinning Frame is a new machine designed and developed by

Tongda Textile Machinery Co.,Ltd. Feeding a single simplex roving,it is suitable for

spinning cotton ,synthetic fibers and their blends to produce weaving and knitting yarns.

The spinning processes can be set by means of man-machine dialogues through a Touch

Screen Panel,and an interface or computer network is ready for expanding.

The Auto doffer is your best choice to decrease the cost and increase the output

The Auto-doffer’s structure combines the advantages from doffers in and out country.

In and out swing and lifting of arms are controlled by servomotor and the lifting actions

are accurate and reliable. Larger biston grippers have accurate and stable ejecting and lifting tube actions.

After the doffer mounted,spinning cost is reduced largely and the connection of ring springing machines to winders can be obtained.

High Speed,High efficiency and stability

CAPP technology improves the design of frame arrangement and ensures vibration free property and smoother running.

The maximum medical speed for spindle is up to 25,000rov/min.

Main Technical Date:

Spindle Gauge	70mm
No.of spindles	From 600 up to 1008 with increment by 24
Lift	200,180mm (Aluminum type spindle) 205,180mm (Bare blade type Spindle)
Ring Dia	Φ35,Φ38,Φ40,Φ45mm
Yarn Count	4.86-97.2tex(120-6Ne)
Twist	230-1740 (T/m)
Spindle Speed	12000-25000 (rmp)
Draft Ratio	Total draft:10-50 Rear Zone draft:1.06-1.53
Twist Direction	Z or S
Draft System	3 line rollers,double aprons(long and short), pendulum arm weighting
Spindle	Aluminum type or bare type with knee brake
Roving Creel	Φ128x320mm bobbin hangers of four rows in single tier with roving truck Φ152x406mm Bobbin hangers of five rows in single tier Φ152x406mm Bobbin hangers of six rows in single tier

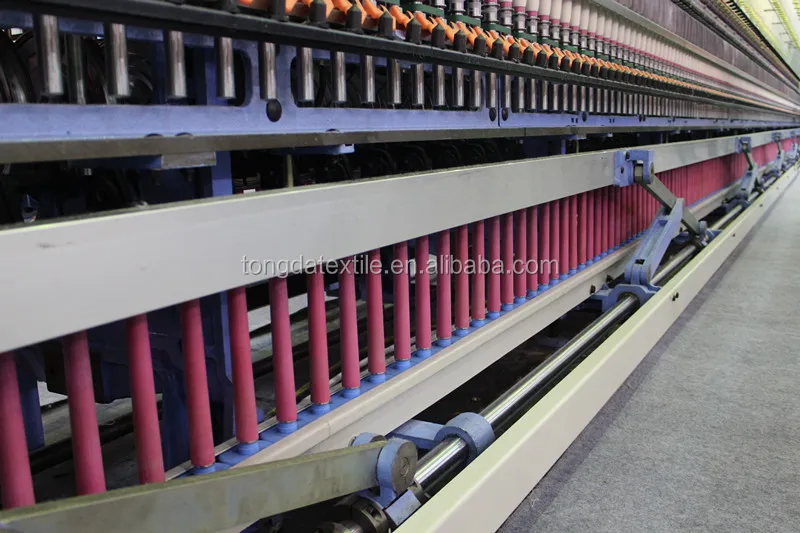

Detailed Images

???Detailed Images

Packaging & Shipping

???Packaging & Shipping

A. Packing: The Machine Packed in Wooden Cases

B.Delivery Details: Within 50days after you Receipt of first T/T Payment.

Company Information

???Company Information

Why Choose Our Company?

A: History:Tongda Textile machinery Group was establish in 1952.Now have more than 60 years old history.

B: Main Products:Tongda Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame,roving frame,weaving machine(water Jet loom/Air jet loom/rapier Loom),warping machine, quilting machine and nonwoven machine.

C:Product /Quality Guarantee: All the Machine have 1 year Quality Guarantee.

D:After Sale Serivice: We are work online 24 hours. If you have any questions about our machine

you can contact us.

E: Reputation:

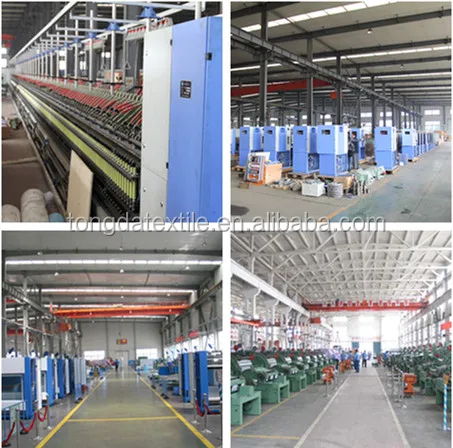

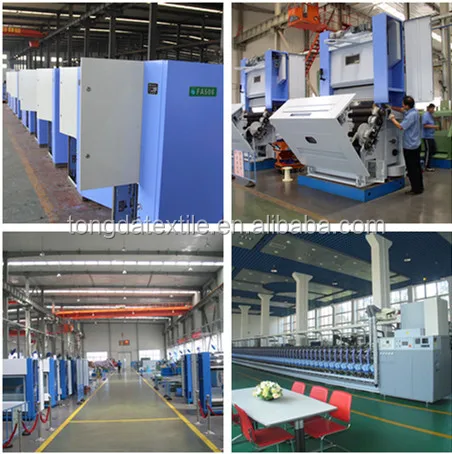

Workshop Show

???Workshop Show

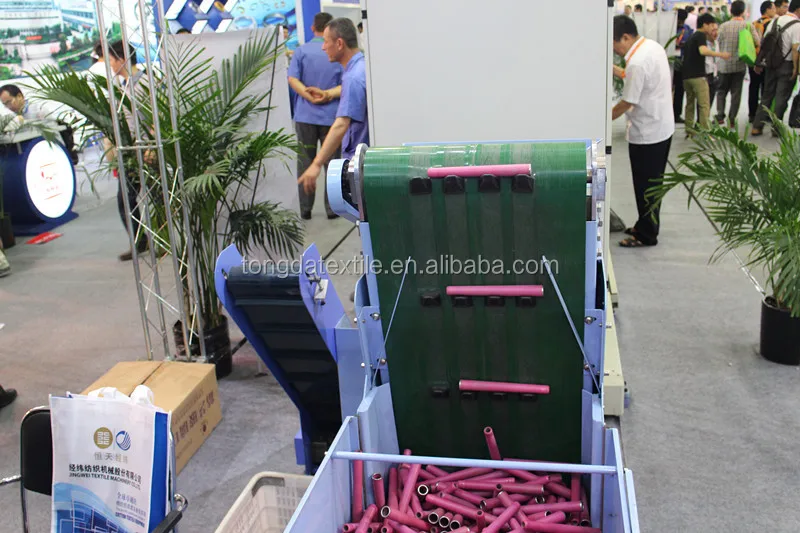

Exhibition Show

???Exhibition Show

FAQ

???FAQ

(1) Q: Are you a manufacturer or Trade Company?

A: We are a professional manufacturer holding our own International Trade Department, for that

we can better understand customer's needs and offer a reasonable price.

(2) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation.

Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.

(3) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.

(4) Q: How about the quality?
A:The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.

(5) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.

Welcome to inquiry ~~~
