Max Paper Size: | 80mm; | Power Supply Input: | AC 100V-240V 50/60HZ; |
Use: | Thermal Receipt Printer; | Paper width: | 48mm/52mm/56mm/64mm/68mm/76mm/80mm; |
Printing Method: | Direct Thermal Printer; | Selling Units: | Single item; |
Paper type: | Thermal Receipt Paper Printer; | Products Status: | Stock; |
Printing Width: | 72mm; | Type: | Thermal; |
Style: | Black And White; | Single gross weight: | 3 KG; |
Product name: | Printer machine; | Power Supply Out: | DC 24V/2.5A; |
Model Number: | ZY307; | Paper Load: | Easy paper loading; |
Black Print Speed: | 260mm / s; | Max. Resolution: | 576dots/line or 572dots/line; |
Paper Thickness: | 0.06~0.08mm; | Paper Cut: | Manual tear or Auto-cutter; |
Color Print Speed: | Null; | Place of Origin: | China; |
Interface Type: | USB; | Single package size: | 29X17X17 cm; |
Brand Name: | Zywell; |

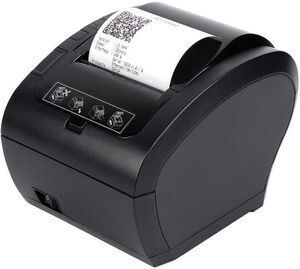

Zy307 Thermal printer:
High Reliability
Origin Japan auto cutter is processed by the Solid-Chromium plating treatment,the paper end sensor has a paper dust proof structure.
USB only
Wall hanging
Zy307 equipped with hanging function,no need install it by screw knife.
High Functionality
Zy307 is designed for high performance,you can monitor all printers status from different gateway,you can monitor out of paper,printer error,cutter error in time,is simple to renamed every printer,is easy change printer IP,gateway,update firmware by the humanized tools.

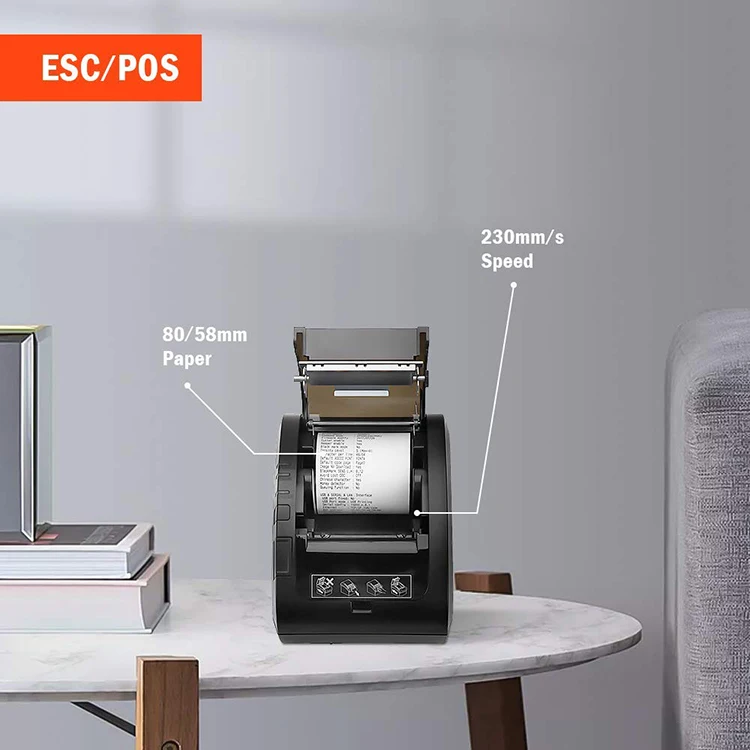

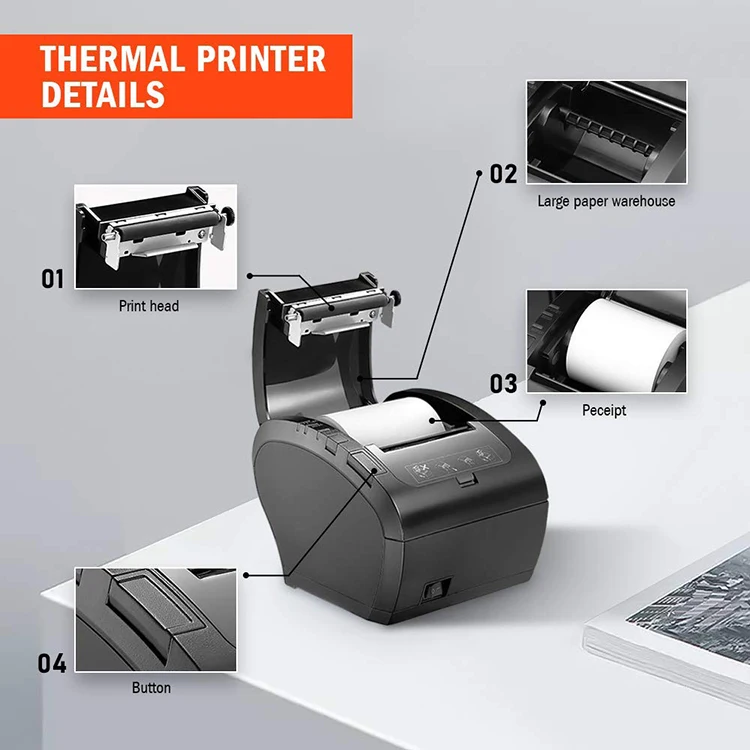

Product Picture Show:
<<<<
Detailed Parameter
Main features:
• Fast printing of text and images
• Long lasting auto-cutter up to 1.5million cuts
• Friendly utilities,virtual com or usb-hid setting by utilities
• Support 8 kinds of different paper width(Option)
• Support wall mounting
Model |
ZY307
| |||
Printing | Print Method | Direct Thermal | ||
Print Speed | 260mm/s,230mm/s,200mm/s
| |||
Resolution | 576dots/line or 572dots/line | |||
Printing Width | 72mm | |||
Paper separator(option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm | |||

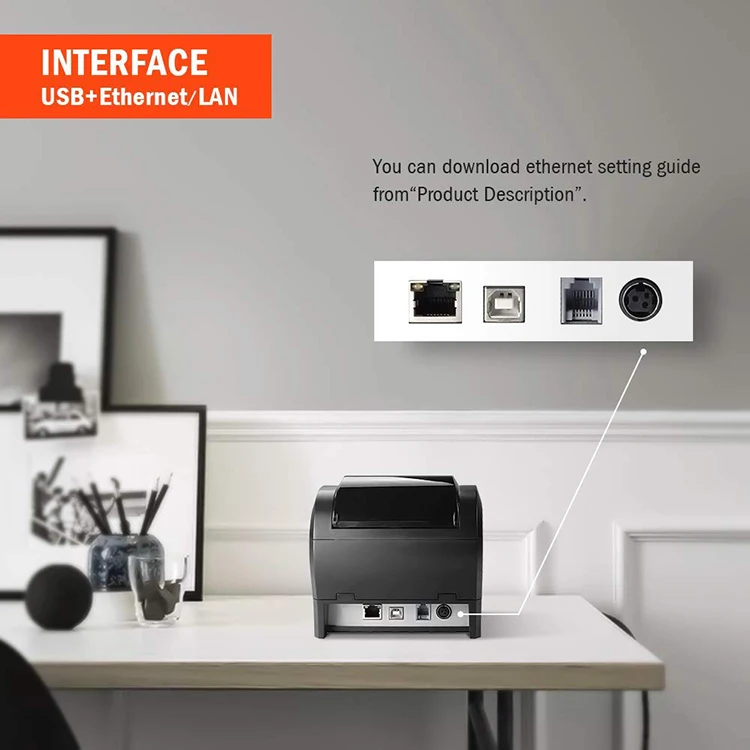

Interface | USB | |||
Kitchen function | Power,Paper,Erro | Support | ||
LED light with beeper | Without | |||
| Hanging device | Support
| ||
Memory | Input buffer | 256kbytes
| ||
NV Flash | 256kbytes
| |||
Fonts | Font A | 12x24 | ||
Font B | 9x17 | |||
Fonts | Chinese | GB18030,BIG5 24x24dots | ||
Japanese/Korea | Support | |||
User-defined | Support | |||
Barcode | 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 | ||
2D | QR code
| |||
Detection | Sensors | Paper out,cover open, cutter jam,paper jam and black mark detection(Optional) | ||
Power Supply | Input | AC 100V-240V 50/60HZ | ||
Output | DC 24V/2.5A | |||
Paper | Paper Type | Thermal Receipt Paper | ||
Paper Width | 48mm/52mm/56mm/64mm/68mm/76mm/80mm | |||
Paper Thickness | 0.06~0.08mm | |||
Roll Dia | Max. Ø 83 mm | |||
Paper Load | Easy paper loading | |||
Paper Cut | Manual tear or Auto-cutter | |||
Physical Characteristics | Working Condition | 0°C~45°C, 10%~80%RH | ||
Storage Condition | -10°C-60°C,10%~90%RH | |||
Dimensions | 191(D)x146(W)x12.9(H)mm | |||
Net weight | 1.94kg | Gross weight | 2.14kg | |
Reliability | Printing head | 150KM | ||
cutter | 1.5million | |||
Accessories |
| data cable,power adaptor,power code,paper roller,CD,manual,paper separator(option) | ||
Packing | Individual box | Dimension 26X21X17cm(LXWXH) | 1unit/carton | |
Master carton | Dimension 64X28X37cm(LXWXH) | 6units/carton | ||
OS | Emulation | ESC/POS | ||

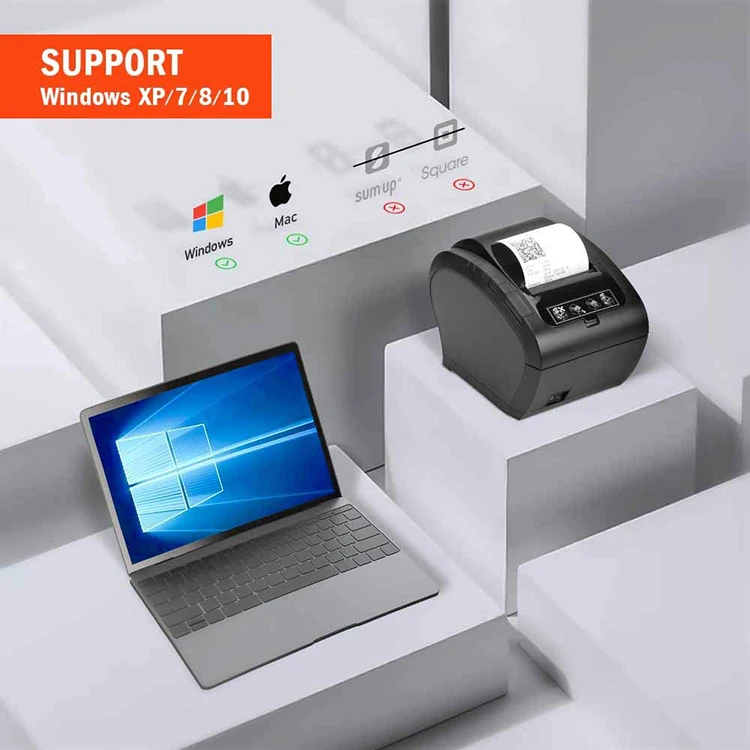

Driver | Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS | |||
SDK | Android, IOS |

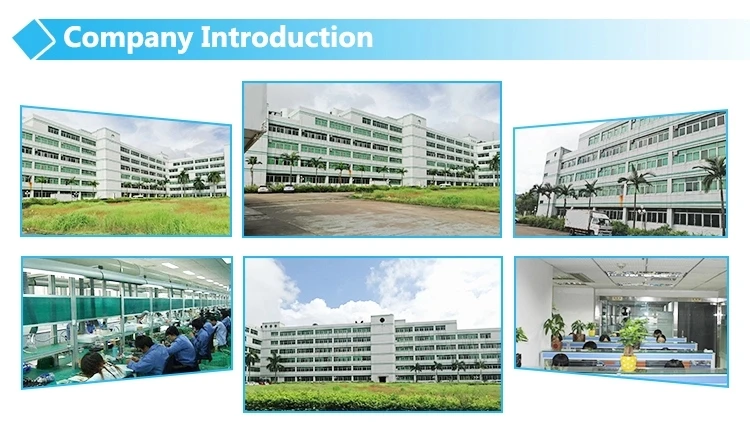

Zhuhai Zywell Technology Co.,ltd was located in the Romantic city Zhuhai,we have rich experience in printer hardware and software more than 15years,integrate R&D,manufacture,marketing and service,we aims to offer the most humanized pos solution for retail and restaurant,focus on customized printer firmware and ODM hardware service.All products passed CE,RoHS certificate,we carry on 100% quality check before shipping,the strict QC flow ensure every printer in good quality and the defect rate is less than 0.1%.
1)Q:Are you a factory or a trade company?
A:We are professional factory,we have more than 15 years experience in POS printer .
2)Q:Where are your products distributed?
A:Our products are distributed all over the world,main market are Europe, North America, the united Arab emirates, Africa and so on.
3)Q:Can I have a sample?
A:Sure,and sample fee will refund if bulk order place later.
4)Q:What's your lead time ?
A:Sample can be arranged in 3 working days,500-1000pcs order with standard requirements can be arranged in 7-10 working days after payment done.
5)How about the quality and after service?
A:We offer 12 months warranty and the defect rate is under 0.1%,our professional technician would like to teach you as the NO.1 after service in local,some parts will be dispatched free during warranty.
More details about our product, company, payment or shipment, please feel free to contact us!
Just leave a message or send an inquiry to us, you will get our reply within 24 hours!
