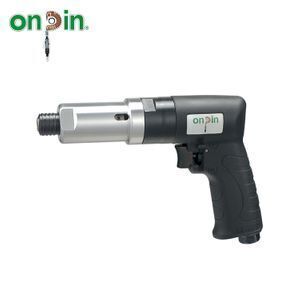

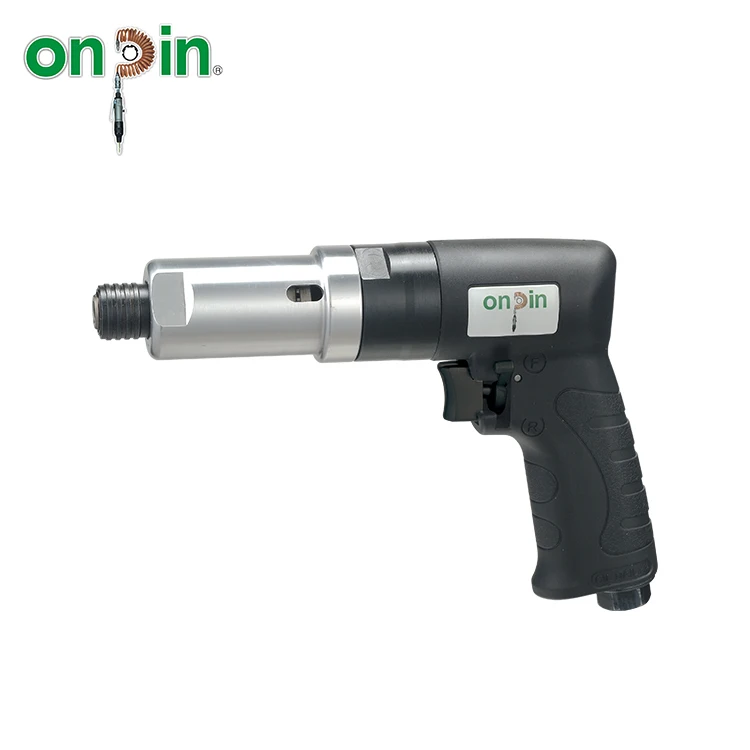

High torque clutch adjustable air screwdriver

Product details
No-Load Speed:2,500 RPM;Specification:Air pressure at 90 psi, 6.2bat, 6.3kg/cm2;
Model Number:OP-2C8425;Air Inlet:1/4 P.T;
Air Consumption:283 l/min, 10 cfm;Overall Length:212mm / 8.34 inch;
Supply Ability:5000 Piece/Pieces per Month;Screw Size Capacity:6 mm;
Carton:10 pcs / N.W.:13.22kg / G.W.:14.04 kg / Cuft: 1.1";Sound Level:80 dB;
Payment Terms:T/T;Packaging Detail:Carton: 10 pcs / N.W.:13.22kg / G.W.:14.04 kg / Cuft: 1.1;
Net Weight:1.08 kg / 2.38 lb;Port:Taiwan;
MAX. Torque:17 Nm / 12.5 ft-lb;Free Speed:2,500 rpm;
Place of Origin:Taiwan, China;

High torque clutch adjustable air screwdriver

Product Description

SPECIFICATION (air pressure at 90psi , 6.2bar , 6.3kg/cm2)

Model No.OP-2C8425
Screw Size Capacity6 mm
MAX. Torque17 Nm / 12.5 ft-lb
Free Speed2,500 rpm
Air Consumption283 l/min, 10 cfm
Overall Length212mm / 8.34 inch
Air Inlet1/4 P.T
Net Weight1.08 kg / 2.38 lb
Sound Level80 dB
Carton10 pcs / N.W.:13.22kg / G.W.:14.04 kg / Cuft: 1.1"



1. Clutch Type(Cushion Clutch)
2. While reaching the fized torque, the clutch will run automatically and protect the workpiece from being damaged.

3. Adjustable Torque design
4. Low Counteraction
5. Composite housing
6. 1/4" hexagonal bits change
7. Reversible one-hand
8. No metal cold feeling. Handle design with different options for operation.
9. Non-section switch lever design (gradually speed control), lever easy operation.
10. Handle exhaust design to reduce the noise and dust.
