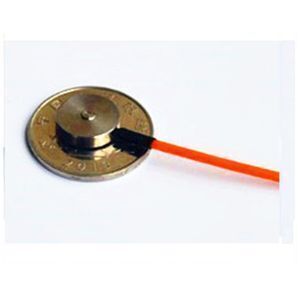

China manufacturer 1kg miniature compression thin film load cell sensor 2kg small Mini Micro Button Load Cell

Supplier: Ningbo Goldshine Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Ms Judy Zhu
Price: $15.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	GOLDSHINE Button Load Cell;	Rated Output:	1.0mV/V ±0.1%;
Product name:	Mini Micro Button Load Cell;	Keywords:	Button Load Cell;
Usage:	Pressure Sensor;	Capacity:	10/20/30/50/100/150kg;
Model Number:	Mini010 Micro Button Load Cell;	Input resistance(Ω):	350±30Ω;
Theory:	Resistance Sensor;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Packaging Detail:	package of Mini Micro Button Load Cell:International standard CARTON Packing or according to buyer's requirements;	Repeatability:	±0.5% of rated output;
Rated Excitation:	5V DC/AC;	Place of Origin:	Zhejiang China;
Safe Overload:	1.5;	Supply Ability:	100000 Piece/Pieces per Month Mini Micro Button Load Cell;
Port:	Ningbo or Shanghai, China;	Accuracy:	C3;
Zero Balance:	±1% of rated output;	Output:	Analog Sensor;

China manufacturer 1kg miniature compression thin film load cell sensor 2kg small Mini Micro Button Load Cell

Dimensions

Specification:

Capacity:	10/20/30/50/100/150kg
Rated Output:	1.0mV/V ±0.1%	Safe Temp. Range:	-10ºC to + 70ºC
Zero Balance:	±1% of rated output	Temp. Compensated:	-10ºC to + 40ºC
Creep After 30 Minutes:	±0.5% of rated output	Safe Overload:	1.5
Nonlinearity:	±0.5% of rated output	Input Impedance:	387 ohm ± 20 ohm
Repeatability:	±0.5% of rated output	Output Impedance:	350 ohm ± 5 ohm
Temp. Effect On Output:	≤0.05% of applied output/ºC	Rated Excitation:	5V DC/AC
Temp. Effect On Zero:	≤0.05% of applied output/ºC	Maximum Excitation:	15V DC/AC

Q: Can we send Mini Micro Button Load Cell sample for reference?
A: We are glad to send Mini Micro Button Load Cell samples for your inspection. Standard samples can be charge, and you may need to pay the express fees.

Q:What is your terms of payment?
A:Usually,we accept T/T ,you can pay 50% when you order , then pay the rest 50% when the order be finished.

Q. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards.

Q:Why should you choose our company?
A:1,We have our own factory, we can design and produce according to customer’s requirement.

A:2,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you to do DDP or DDU.
A:3,We have own warehouse at the ningbo port.If you want to mix disparate products to different stores,we can help you to finish the work when our workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique IDs will be created.It will save labor cost for you.
