Weight: | 600kg; | Voltage: | 380V; |
Supply Ability: | 20 Set/Sets per Month; | Packaging Detail: | wood box; |
Place of Origin: | Henan China; | color: | green; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Condition: | New; |

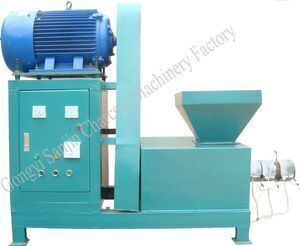

Name: | Bio Briquette Machine; | Payment Terms: | L/C,T/T,Western Union; |
Application: | Biomass Fuel; | Brand Name: | sanjin machine; |
Usage: | BBQ; | Dimension(L*W*H): | 1.65*0.6*1.6m; |
Power(W): | 15kw; | Warranty: | One Year; |
Production Capacity: | 99%; | Features: | Stick Shape; |
Certification: | CE/ISO9001; | Model: | IV; |
Dimension: | 1.65*0.6*1.6m; | Output: | 120-180 kg/h; |
Port: | Qingdao; | Material: | agricultural waste; |
MOQ: | 1 set; | Power: | 15 kw; |
1.Two patents
patent number: 200530100650.5, 200520031212.2
2.Usage and feature
Many performance data such as capacity, coal bar density, eletricity consumption and wearable degree have reached advanced level. Our newly developed charcoal machine can be used as charcoal powder shaping machine by replacement of some spare parts.
This charcoal briquette machine is the main equipment to make stick solid fuel with such wood material as bits of wood, rice shell or peanuts shell, etc. The raw material(12% Water proportion) dried by the dryer(12% humidity)will be formed into fuel under high pressure and at high temperature.
3.The charcoal making process
First, crushing the raw materials (sawdust, corn stalk, straw, etc.).
Second, drying the crushed materials.
Third, pressing to briquette.
Finally, the bar is carbonized in the carbonized oven.
4. Main technical dat
Type | Power | Capacity | Diameters of product | Dimension |
IV | 15KW | 120-180kg/h | 50mm | 1.65*0.6*1.6m |
III | 18.5KW | 180-240kg/h | 50mm | 1.65*0.6*1.6m |
V | 22kw | 230-300kg/h | 50mm | 1.9*0.6*1.8m |
80 | 22kw | 320-380kg/h | 80mm | 1.9*0.6*1.8m |
Moisture content of t he raw materials | Moisture content is 8-12%. | |||
Requirements on the size of the materials: the diameters of the raw materials are between 1mm and 5mm |
a
Raw material:

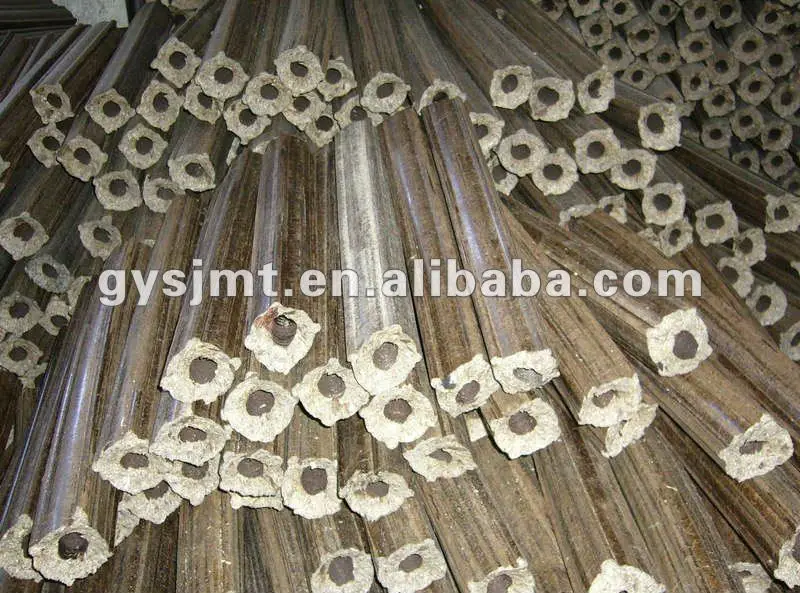

Finished prodcts pictures:
