FRP Manual 4*2 Diesel Frozen Chicken Meat Delivery Refrigerated Truck Reefer Van

Product details
Application:meat, fish, vegatable...;Brand Name:CLW;
Emission Standard:Euro 3;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Port:Wuhan, China;Dimensions (L x W x H) (mm):5995*2050*3000(mm);
Product name:Reefer Van;Horsepower:< 150hp;
Fuel Type:Diesel;Model:CLW887r2qr;
Condition:New;Wheelbase:3360mm;
Curb weight:2910kg;Supply Ability:1000 Set/Sets per Quarter;
Place of Origin:Hubei, China;Gross Vehicle Weight:4950;
Max speed:90km/h;Packaging Detail:nude or wax on Ro-Ro Ship or Bulk ship or container;
Transmission Type:Manual;Temperature Range:-15℃ ~ 0(℃);
Box Dimensions (L x W x H) (mm):4200*1820*1820(mm);

4x2 Ice Cream Re4x2 Ice Cream Refrigerated Truck Container Reefer Vanfrigerated Truck Container Reefer Van

Product Parameter

Packaging and Delivery
Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
Delivery Time : 30-40 days after receiving your deposit by T/T

Technical Parameter

Reefer Van is a van truck designed to carry perishable freight at specific temperatures,such as fruit,vegetable,milk,medicine,meat and so on.The material used is polyurethane and fiber glass for the van.It is useful and economical transportation truck in nowadays. Our company has different size of refrigerated van equipped in different chassis. Please consult us for more information.

This truck is made up of vehicle chassis, insulation box, refrigeration unit and temperature recorder, etc.

For the special requirements of freezer vehicle,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots, ladder, LED lamp, etc. parts can be chosen and installed. Different refrigerated units are available like Carrier, Thermos King, Dongin, Kingtec, etc. The standby battery, side door, side windows, etc are optional.

ItemParameterOption
ProducerCLW(ChengLi Special Automobile Co.,Ltd)
Overall dimension5995*2050*3000(mm)
Box body size4200*1820*1820(mm)
Curb weight2910kg
Payload 4 tons
Material of freezer boxOuter panel: FRPStainless steel
Middle material: PU foam insulation layer
Inner panel: FRP
Floor: Aluminum
Refrigeration unitHanxue brandCarrier,Thermo King
Temperature range-15℃ ~ 0
Engine of fast food carBJ493, 63hp, 4 cylinder, turbocharged intercooled
Fuel typeDiesel
Tire model6 wheels,7.00-16 tires, Chian famous brand
Max speed90km/h
Equippped truck chassis
BrandFotonHOWO,Dongfeng,Japan brand,JAC,electric type, trailer
Wheel drive4x2, LHDRHD
Driving cabsingle row, 3 seats
Wheelbase3360mm
EngineBJ493, 63hp, 4 cylinder, turbocharged intercooled
Axle & wheel2 axle, 6 wheels with a spare tire
Tire specification7.00-16, with one spare tire
Emission standardEuro IIIEuro II/IV
Option
Inner plateStainless steel
Refrigeration unitAmerica Carrier
America Thermo King
Temperature-5℃, -10℃, -15℃ option
Chassis brandMore option,Japan brand
Load capacity0.5 ton ~ 30 ton trailer
Freezer box2 meters long ~ 14 meters long
Meat hookCustomized number
Hook railCustomized number
Ventilation slotsCustomized
Side protect fenceCustomized
Miniature lifting machine500kg, 1000kg option
Lifting rear plateHydraulic lifting plate
ColorCustomized

* More details or special requirements about our cooling van truck, please contact us



Refrigeration unit classification
Non independent refrigeration unit,independent unit,the domestic units and imported units.

Usually using external refrigerator,for a few mini refrigerated truck,using internal refrigerator.

Product Details

Dispatch Cases

More Product Details, and choose what you need

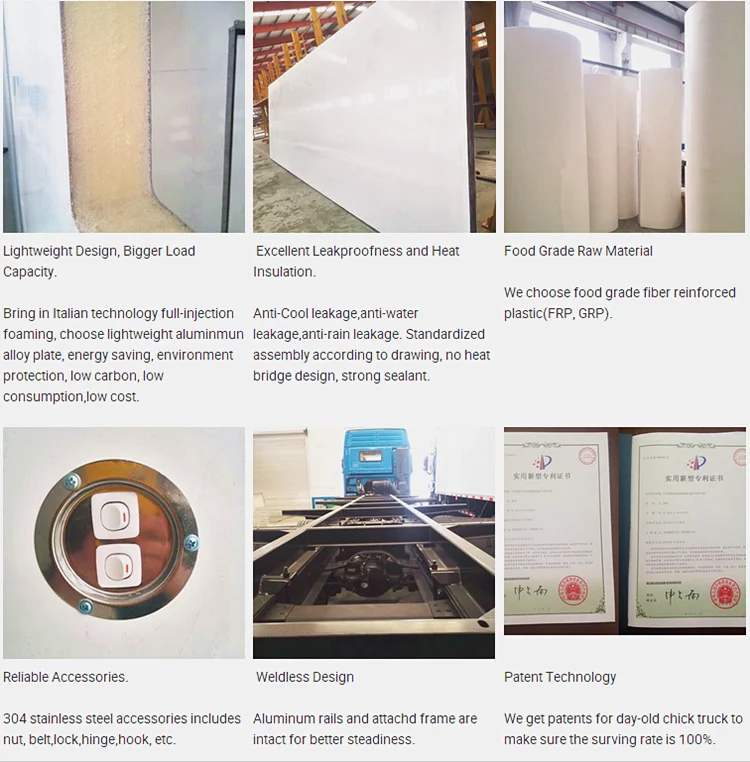

Choice for insulated body

Good thermal insulation property,light weight,not easy to be damaged.

Truck Box Feature

  • High Insulation;
  • Long operating life;
  • Higher-intensity;
  • Corrosion resistance;
  • Easy to clean

We provide various chiller vans with capacities ranging from 0.5MT to 60MT

Standard Detail of Refrigeration Box

1.Aluminum steel of bottom

The surface contains wale and wearability are pretty good

2.Polyurethane(padding)

Thermal insulation material. It helps refrigeration system reach temperature to -18℃

3.Glass PlateThe Truck body is made of fully plastic, and the inner and outer skin is glass steel plate

Advantages:

Application: for fruit, vegatavles, milk, fish, meat and any frozen food delivery...

Truck Show

>>>Get more truck model, please contact us

Main Product




Company Information

Hubei Dali Special Automobile Manufacturing Co.,Ltd locates in Suizhou city, a car city, which is famous as the hometown of ShenLong. Our company has car sale corporations, manufacture management centers and over twenty branches in China, including exploitation, manufacture, sale and service. Its main products , including truck car series, van car series, engineering car series, dust cart series, half hanging car series, fire truck series are than 100 types ,having the D level pressure container manufacturing ability.Nowadays, our company has established its leadership in this field in China by large accumulation, technology and advantages in service. The company dedicates to pursuing technology research and application in safety, environment protection, efficiency, automation and economization on energy. We also pay special attention to the beauty, economization and function of the manufactures. It insists on the purpose of management that it depends on quality to exist and creativity to develop. We have got the certificates of ISO9001 and CCC. Our company is consistent to develop the new product. During the period, we will further extend the joint venture cooperation, usher in the funds with the technique, increase continuously the technique reforms dint degree, and make last scale in current product, top level. The company is extending the production of the annual products 10000 appropriations car and the annual more than 1000 sets of mobile pressure container. We will usher in the advanced production in abroad equipments, making the technique level of the appropriation car contain a quality leap.

Packaging & Shipping

FAQ



FAQ

1.You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile. And you are always welcomed to visit our factory.

2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.

3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.

4. Could you provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.



5. How long could we receive our goods?

 It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.

6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person
