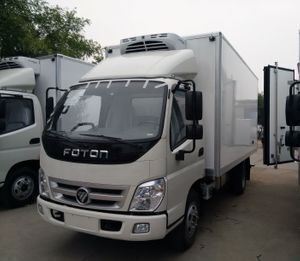

FOTON refrigerator /cool truck /frozen truck

Supplier: Shandong Cultor Environmental Technology Co., Ltd.
Region: Shandong, China
Contact: Ms Alicia Lee
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Gross Vehicle Weight:	5995;	Port:	Qingdao;
Color:	White;	Place of Origin:	China Mainland;
Brand Name:	CULTOR;	Emission Standard:	Euro 2;
Outside material:	FRP, Stainelss steel;	Product name:	Reefer Freezer Cold Box Truck;
Transmission Type:	Automatic;	Supply Ability:	10000 Set/Sets per Year;
Box Dimensions (L x W x H) (mm):	600023502680;	Box Size:	Customized;
Certificate:	ISO CCC;	Fuel Type:	Diesel;
Model:	ALL MODELS;	OEM No.:	Customized;
Type:	Refrigerator Model;	Door frame:	304 Stainless steel;
Horsepower:	< 150hp;	Payment Terms:	L/C,D/A,D/P,T/T;
Door lock:	304 Stainless steel;	Dimensions (L x W x H) (mm):	4360x1900x2000mm;
Panel thickness:	60mm,80mm,100mm;	Condition:	New;
Packaging Detail:	N/M;	Temperature Range:	-20 degredd to +20 degredd;

Product Description

7feet -40feet Truck Box Body Typical Character
1. Light weight and high strength
2. Fire retardant treatment
3. Shock resistance and scratch proof
4. Anti-corrosion and good chemical substances resistance
5. Easy clean and simple installation
6. Insect prevention and antibiosis
7. Weather proof and hail resistance
8. Excellent thermal character

Refrigerated Truck Box
Truck Body Outer Dimension:	(L) x (W) x (H)
Truck Body Inner Dimension:	(L) x (W) x (H)
Front PanelThickness:	65mm-105mm
Floor Panel Thickness:	65mm-105mm
Roof Panel Thickness:	65mm-105mm
Side Panel Thickness:	65mm-105mm
Rear Panel Thickness:	65mm-105mm
Side Door	Optional
Rear Door Dimension	Full Size Double Opening
Refrigeration Unit Type	Optional
Flooring Type	Anti-Slip FRP Flooring
Ceiling Light Quantity	2 Sets of Flush Mounted White LED
Mark Light Quantity	2 x White LED At Front; 2 x Red LED At Rear
Lock Set Type	Stainless Steel
Hinges Type	Stainless Steel

Main Features

1).It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam(60mm,80mm,100mm) in the core.
2).Light in weight:40% lighter than metal body.
3).It is good at strength and long life.
4).The panel used for the truck body was constructed in type of sandwich.
5).Thermal insulation layer is 60-100mm thick, which offers a very good thermal insulation performance.

K value less than 0.3w/m2k
6).Customer can select side doors.

7).We can also furnish you refrigerator units, the Temperature range can be +20°C ~-30°C.

Certifications

Detailed Images

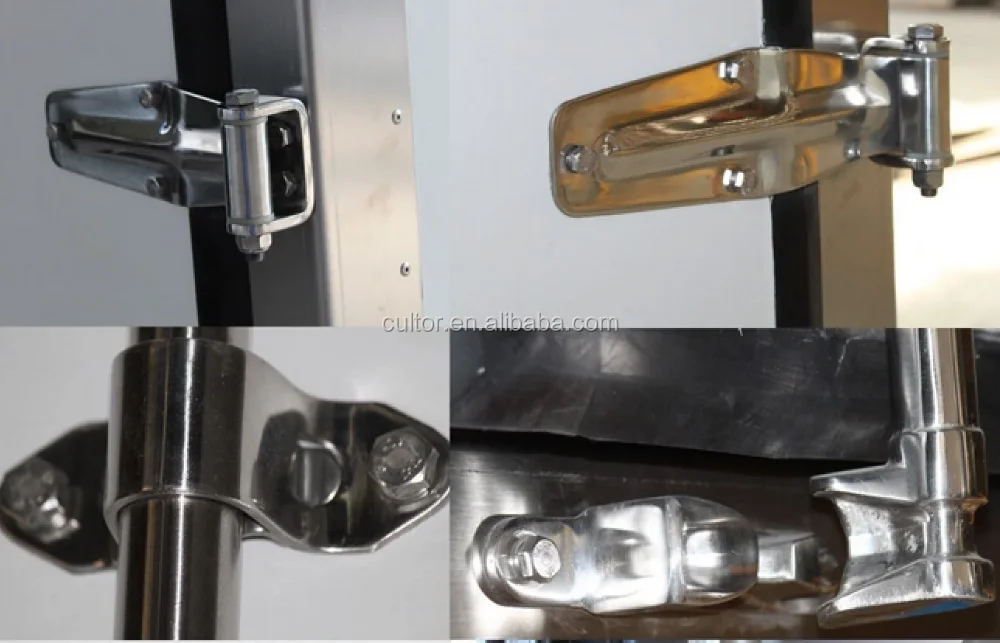

1) Door lock and door frame: 304 stainless steel
2) High in strength and long life: 5 times longer than metal body.
3)Customize :We could design special drawing according cilent's request , producing as client's requirement.
4)Certificate :CCC;ISO9001

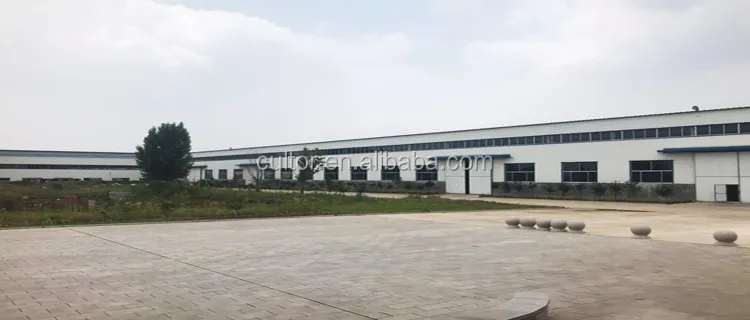

Work Shop Photos

Our Service

After-Sales Service

We endeavor to provide our Customers with prompt and efficient on time Service.
Timely parts supply guarantee vehicles work continuously.
The overseas engineers are always ready anytime to deal with unexpected needs

Packing & Delivery

Packaging
Size	12000(L) * 2350 (W) * 2680 (D)
Package Details	CKD/SKD refrigerated truck body is mainly provided for overseas customers who are capable of assembling refrigerated truck locally.it can effectively reduce the cost,increase market competitiveness and provide safe refrigerated transportation..

FAQ

Ø " Price – competitive price (we are manufacturer )

Ø Quality – reliable with guarantee period (we have over 20 years' manufacturing experience)
Ø Delivery – timely for sure (experienced engineer s under efficient management, with advanced equipment and technology)
Ø Service – prompt reply, efficient communication by phone/email/app online.

Trade details:

1)Trade terms: CIF ,FOB,CFR,L/C
2)Payment: 30% prepaid in T/T ,70% payment in T/T before shipment.
3)MOQ: 1 Set.
4)Delivery time: 10 days around.
5)Transportation: Normally transport by sea
6)Port of loading: Qingdao
7)MOQ:1 Unit
