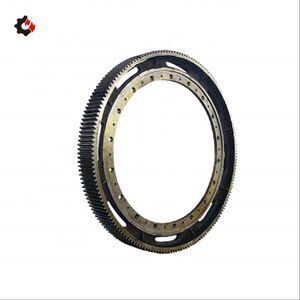

AISI 4140 Rotary Dryer Casting Steel Large Diameter Half Girth Spur Ring Gear

Product details
Supply Ability:9000 Ton/Tons per Year;Port:TIANJIN,QINGDAO or Others;
Tooth Profile:Spur;Tolerance:+/-0.01;
Applicable Industries:Manufacturing Plant,Energy & Mining;Material:Steel;
Processing:Casting;Gear Processing:Gear hobbing and grinding;
Height For Gear Wheel:MAX. 1200 mm;Brand Name:LUOZHONG;
Surface Treatment:Surface Hardening or Carburizing and Quenching;Module of Gear:22;
Product Name:4140 Rotary Dryer Casting Steel Large Diameter Half Girth Ring Gear;Pressure Angle:20 degree;
Application:Rotary Dryer Casting Steel Large Diameter Half Girth Ring Gear;Packaging Detail:Package for AISI 4140 Rotary Dryer Casting Steel Large Diameter Half Girth Ring Gear is wooden box and adapts to ocean transport;
Certificate:ISO 9001:2015;OD For Gear Wheel:MAX.13 000 mm;
Payment Terms:L/C,T/T;Forging or Casting:Casting;
Standard or Nonstandard:Nonstandard;Shape:Ring Gear;
Place of Origin:Henan China;
Why Choose Us

--OEM Machinery Parts Supplier

Over 30 years experiance in manufacturing OEM machinery parts and non standard machinery Parts according to engineer drawings.

--Technical Supports for Material
Technical supports for new material and new manufacturing process according to customers working conditions in order to improve lifespan of machinery parts.

--Military Quality
Participating in the designing and manufacturing rail for the largest radio telescope in Asia and forging dies for the airplane for the military industry.

Product Details

Produce Name:

>AISI 4140 Rotary Dryer Casting Steel Large Diameter Half Girth Ring Gear


>Heat Treatment guarantees the total hardness.


>Also can do surface hardening and cemented to improve the surface hardness according to customer's drawing.



Precision steel forging and casting large diameter spur gear wheel;


We can produce half gear wheel,four split,eight split,twelve split gear;

Also can produce both casting and forging large module gear wheel.
Related Products

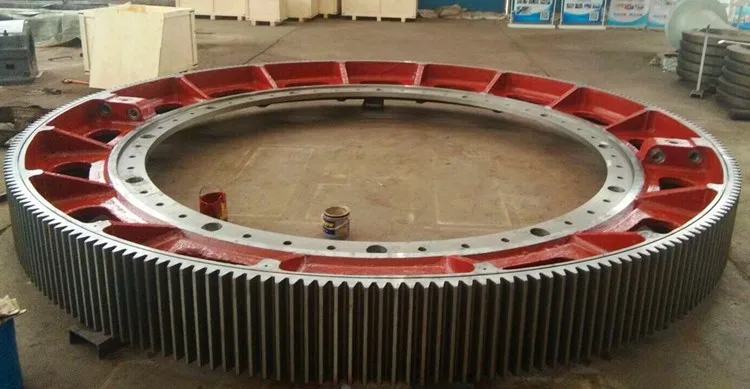

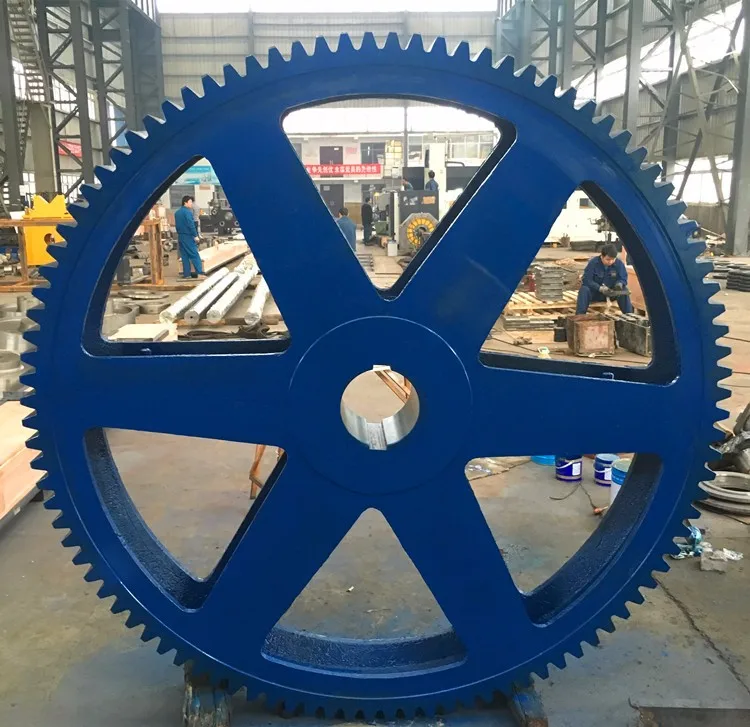

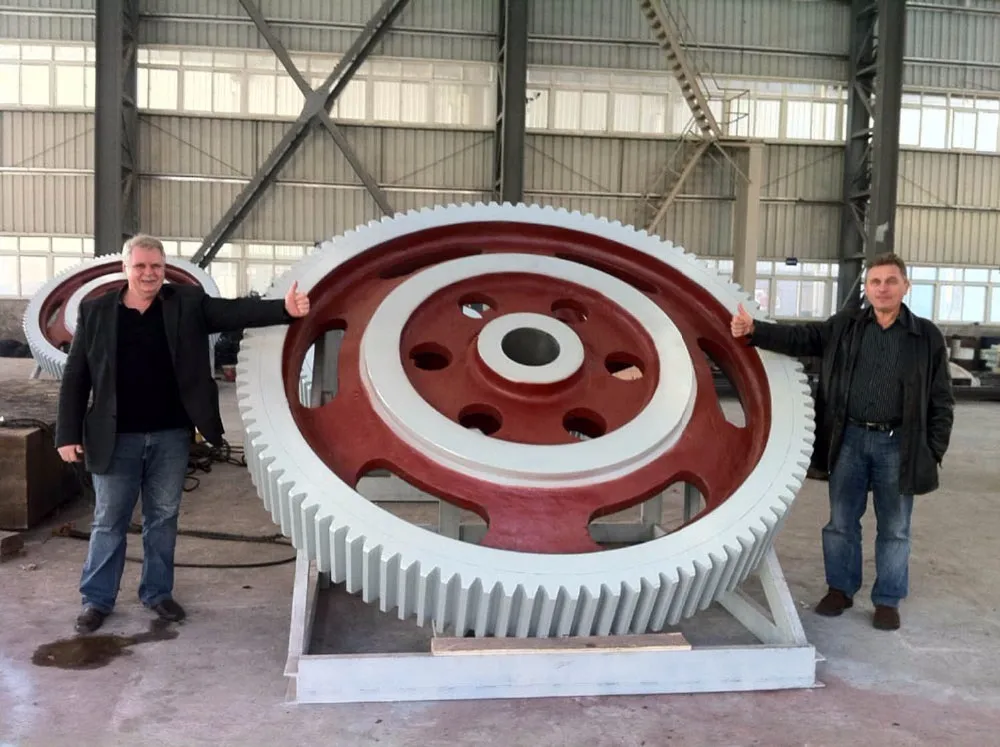

Big Casting Gear Wheel


           Forging Half Ring Gear


Forging 12 Segment Ring Gear

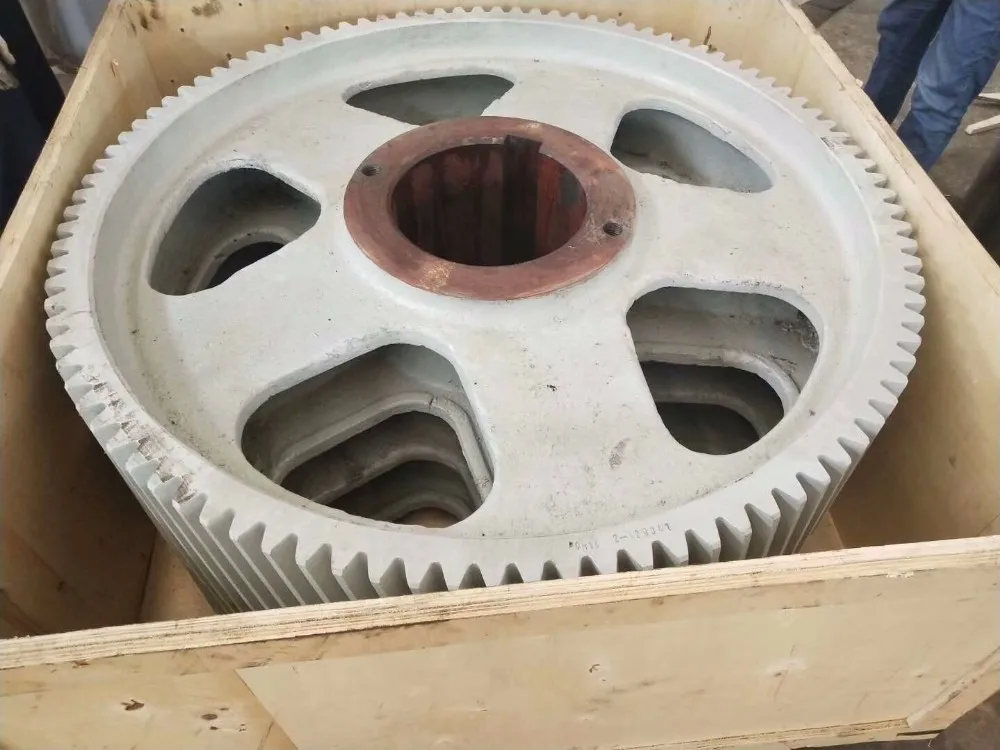

Packing & Delivery
Product Inspection



UT Or MT.


Ultrasonic testing or magnetic particle testing for forging and casting parts after rough machining.

To make sure that all products are produced form high quality raw material.




Size Inspection


Strictly size inspection control during every production process and make a record.

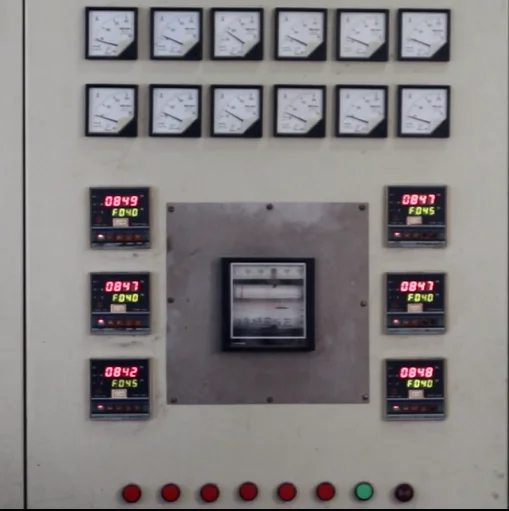

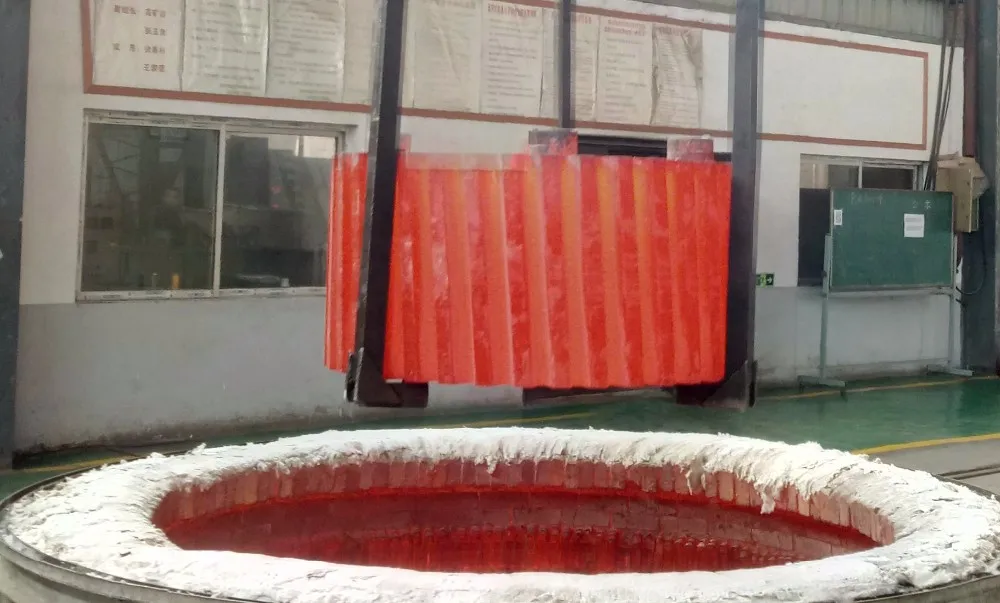

Precise heat treatment equipment.

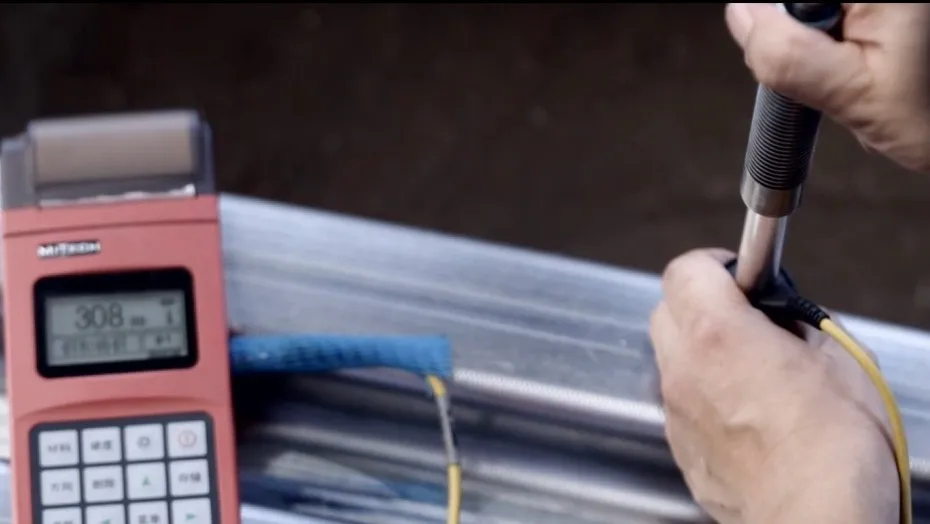

Hardness Testing


Mechanical Property Testing


We can do mechanical property testing and provide report to customer.
Including tensile strength,impact,elongation,yield strength,etc.


Our Service

--Luoyang Wangli Heavy Machinery Co., LTD is mainly engaged in the designing and manufacturing of large machinery components and non-standard machinery parts.

--Our products are mainly used in the fields of mining machinery, petroleum machinery,cement plant,steel mill, power plant, sugar factory etc,including shafts, gears, sprockets, sheaves, couplings,support rollers, large bearing housing and other large forging and casting parts.


--After over 20 years of development,various large non-standard machinery products have been already sold to the whole China and exported to 32 countries including the United States, Russia, Germany, Spain,India,etc.


Product Parameter

Material
Alloy steel,Carbon steel,Carburizing steel,Quenched and tempered steel
Heat treatment
Normalizing,Annealing,Quenching&Tempering, Surface Quenching,Case hardening
Machining
CNC Turning,CNC Milling,CNC Boring,CNC Grinding,CNC Drilling
Gear Machining
Gear Hobbing,Gear Milling,CNC Gear Milling,Gear Cutting,Spiral gear cutting,Gear Cutting
Inspection
Chemical Composition Test,Ultrasonic Test,Penetration Test,Radiographic Test,Magnetic Test,Tensile Strength Test,Impact Test,Hardness Test,Dimension Test
Module of Gear
8-120
Gear Grinding
MAX. Module 24
Diameter of Shaft:
MAX. 2 200mm
Length of Shaft
MAX. 13 000mm
Diameter of Gear Wheel
MAX.13 000 mm
Diameter of Spiral Gear
MAX. 2 200 mm
Length of Gear Shaft
MAX. 5 000 mm
Forging and Casting Spare Parts For Cement Equipment
Equipment

Forging

5000 tons oil hydraulic press machine


Ring Rolling Machine

5 meters ring rolling machine

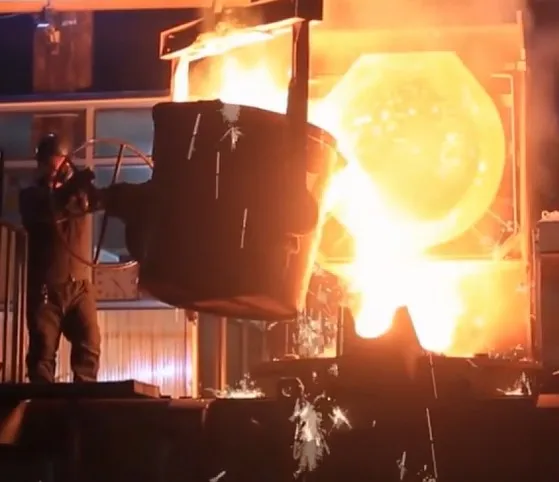

Casting

Max. weight of casting parts is 80 tons for one piece.

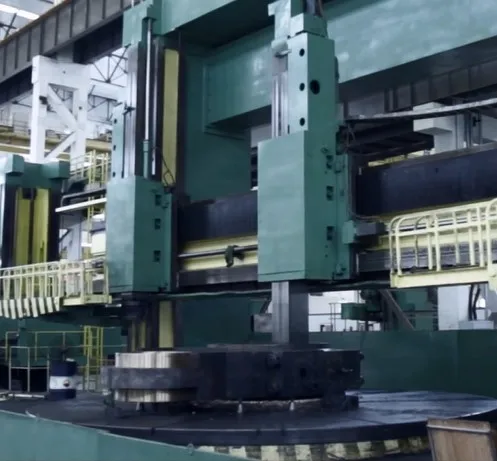

Vertical Lathe

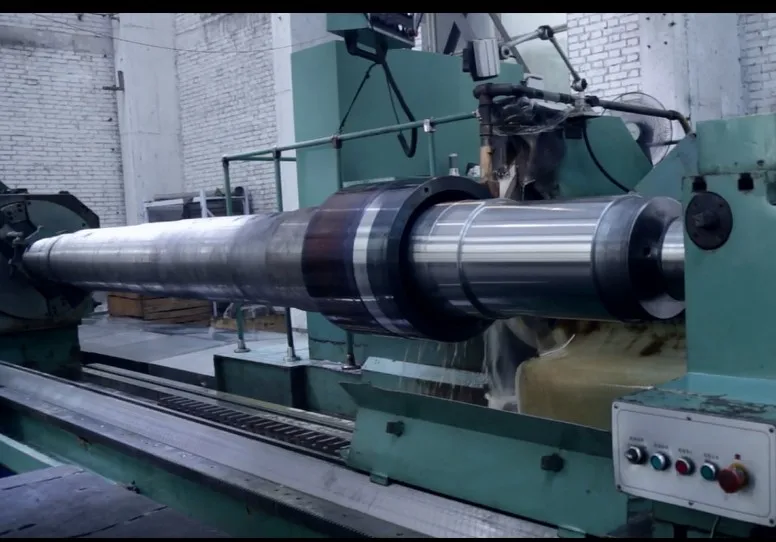

Horizontal Lathe

CNC Machining

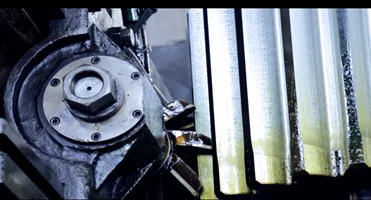

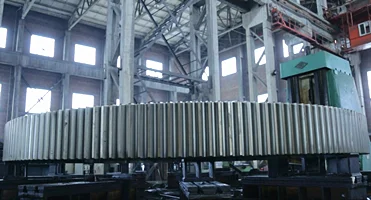

Gear Hobbing

Gear Hobbing

Customer

After over 20 years of development,various large non-standard machinery products have been already sold to the whole China and exported to 32 countries including the United States, Russia, Germany, Spain,India,etc.
