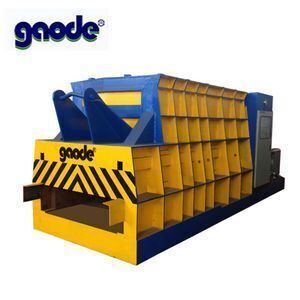

Hydraulic Scrap Metal Shearing machine cutting scrap steel
-
Supplier: Jiangsu Gaode Hydraulic Machinery Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Fenny Wang -
Price: $70000.00 /set -
Min. Order: 1 set
| Application: | Scrap Metal Recycling; | Color: | As request; |
| Material / Metal Processed: | Brass / Copper,ALLOY,Carbon Steel,Stainless Steel; | Warranty: | 6Months; |
| Certificate: | CE;ISO9001:2008; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| After sale service: | Provided; | Automatic grade: | Automatic; |
| Power (kW): | 74; | Machine Type: | Hydraulic Container Shears; |
| Condition: | New; | Payment Terms: | L/C,T/T; |
| Packaging Detail: | In nude for CS 4000 Container Hydraulic Scrap Metal Cutting Machine; | Name: | Hydraulic Scrap Metal Shearing machine cutting scrap steel; |
| After-sales Service Provided: | Online support, Video technical support; | Port: | Shanghai for CS 4000 Container Hydraulic Scrap Metal Cutting Machine; |
| Key Selling Points: | High Productivity; | Rated Power: | 37KW*2; |
| Warranty: | 6months; | Weight (KG): | 27000; |
| Applicable Industries: | Manufacturing Plant; | Supply Ability: | 100 Set/Sets per Year; |
| Place of Origin: | China; | Condition: | New; |
| Brand Name: | gaode; |
Scrap shear is used for economical scrap processing, easy operation and flexibletransportation with a roll on/roll off system. Various models for your choice.
No. | TECHNICAL SPECIFICATIONS | Remark | ||||||
3 | Max. length to shear |
| 1600 |
| ||||
4 | Max. shear force | KN | 4000 |
| ||||
5 | Max.moving stroke | mm | 800 |
| ||||
6 | Max. press force | KN | 1500 |
| ||||
7 | Pressure plate range
| mm | 700 |
| ||||
8 | Hydraulic System Pressure | Mpa | 25 |
| ||||
9 | Height of Working Table | mm | 640 | mm | ||||
10 | Overall Dimensions | mm | 5300*2200*2700 | mm | ||||
11 | Motor | Model | Y250M-6 |
| Quantity | 2 pieces | ||
Nominal Speed | 1470rpm |
| Nominal Power | 37 KW | ||||
12 | Hydraulic Pump | Model | HY250Y-RP |
| Quantity | 2 pieces | ||
Nominal Outflow | 250ml/r |
| Nominal Pressure | 31.5 Mpa | ||||
Gaode Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes. Our company was first inaugurated in 2003.
Our Gaode brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Finished Products
The Exhibition
Our Certificate
Our Factory
6 months guarantee for whole machine.
24 hours technical support by email.
Calling or door to door service.
User manual and detailed video.
Nancy
Jiangsu Gaode Hydraulic Machinery Co,Ltd.
TEL: 86-510-86996082 / 15261620670
FAX: 86-510-86993993
ADD: NO.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
1, Q:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
2, Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
3, Q:Do you have inspection procedures for machines?
A:100% self-inspection before packing
4, Q:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
5, Q: Can we order one set machine?
A:Yes, you can.
-
