DLD2-0.6A Single Plate Electromagnetic Clutch

Supplier: Anhui Lixin Clutch Company
Region: Anhui, China
Contact: Mr jiayi yu
Price: $20.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	carton box or wooden box;	Model Number:	DLD2-0.6A;
Delivery Detail:	2 days;	insulation grade:	B or F,H grade;
voltage:	24V dc or 12V dc;	material:	DT4;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Brand Name:	Lixin;
Place of Origin:	Anhui China;	Supply Ability:	10000 Piece/Pieces per Month;
Port:	Shanghai;

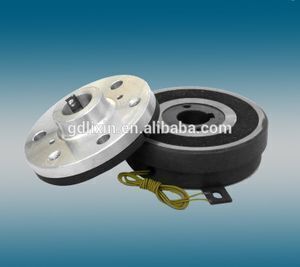

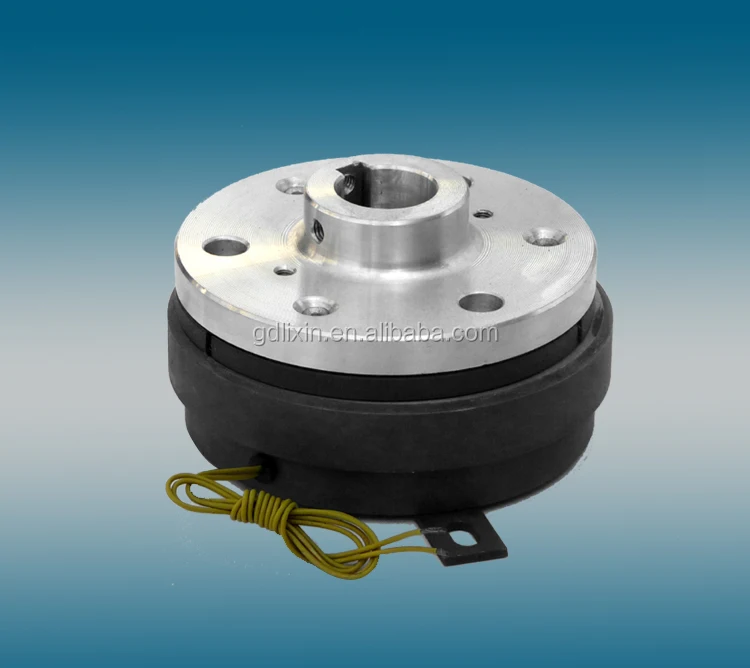

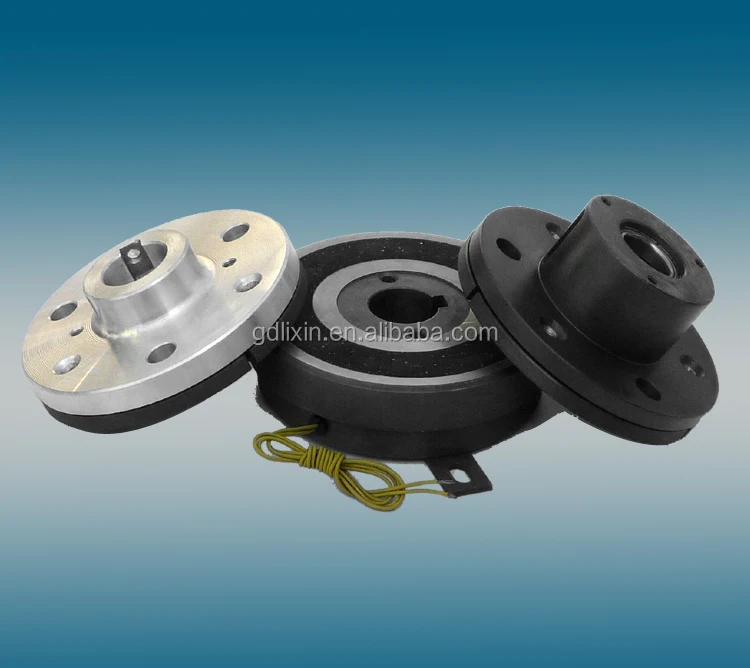

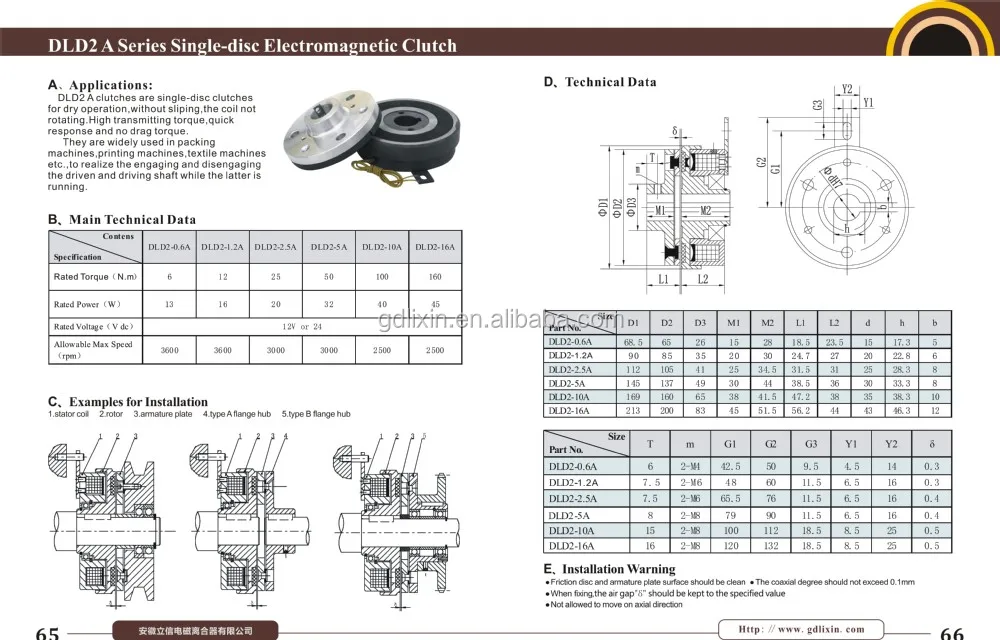

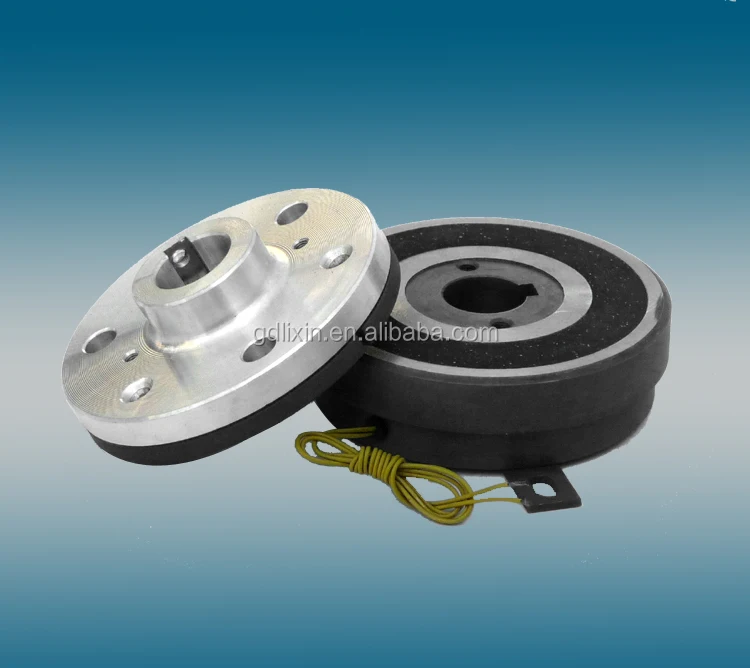

DLD2-0.6A Single Plate Electromagnetic Clutch

1.working voltage:24V dc or 12V dc

2.torque:6N.m

3.power:13W

DLD2 Clutches are single disc clutches for dry operation,without sliping,the coil not rotating.High transmitting torque,

quick response and no drag torque.

They are widely used in packing machines,printing machines,textile machines etc.,to realize the engaing and disengaging the driven and driving shaft while the latter is running.
