Name: | Waste tyre recycling plant; | Condition: | New; |
Fuel: | Coal, Gas, Oil, Wood; | Power(W): | 54KW; |
Reactor Rotatable Speed: | 0.4-0.8turn/minute; | Service Life: | 5-8Years; |
Working Form: | Continuous; | Port: | China Main Port; |
Payment Terms: | L/C,T/T; | Place of Origin: | Henan China; |
Type: | Tire Machine; | Warranty: | 1 Year; |
Packaging Detail: | Standard Export Packing; | Reactor Materail: | Q245R or Q345R Boiler Steel Plate; |
24Hours Pyrolysis Capacity: | 16-20T; | Supply Ability: | 240 Set/Sets per Year HOT sale plastic and tyres scrap pyrolysis to oil plant with CE; |
Weight: | 35MT; | Tire Machine Type: | Tire Recycling Machine; |
Certification: | ISO, CE; | Brand Name: | Beston; |
Reactor Size: | D2800 x L7100mm; | Voltage: | 380V; |
Cooling Sytem: | Water Cooling; | After-sales Service Provided: | Field installation, commissioning and training; |
Dimension(L*W*H): | 40x10x10m; | Reactor Steel Thickness: | 16mm; |
Technical Specification
Model | BLJ-6 | BLJ-10 | BLL-16 | BLL-30 | BLL-40 | BLL-50 |
Daily capacity | 6MT | 10MT | 20MT | 30MT | 40MT | 50MT |
Working method | Batch | Semi-continuous | Fully continuous | |||
Operating pressure | Constant pressure | |||||
Reactor rotate speed | 0.4turn/minute | Not rotary type | ||||
Total power | 24kw | 30kw | 54kw | 53.6kw | 62kw | 84kw |
Reactor size | D2.2*L 5.1m | D2.8*L6.2 m | D2.8 *L7.1 m | L12.5*W2.2*H2.5m | L12.5*W2.2*H2.5m | L12.5*W2.2*H2.5m |
Space for machine(L*W*H) | 20*10*10 m | 25*15*10 m | 25*15*10 m | 20*15*10m | 33*15*10m | 33*15*10m |

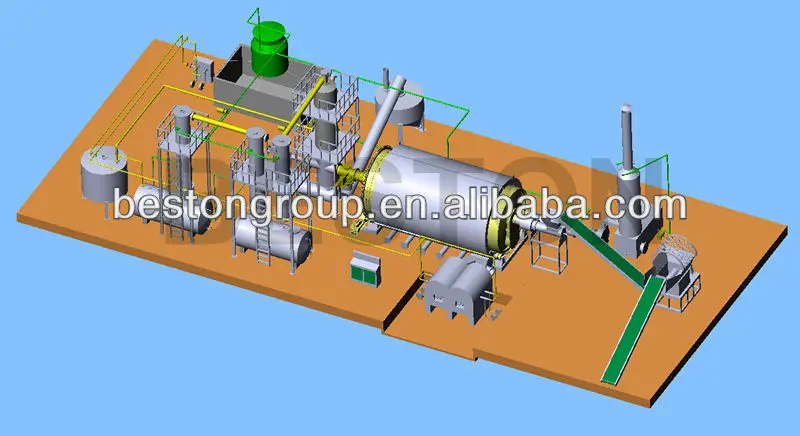

3D Drawing
Main Features of tyre recycling plant
Safety
1. With an auto welding machine for the reactor, it can not only greatly improve working efficiency of pyrolysis plant, but also guarantee the quality of welding seam, thus avoid explosion caused by gas leak.
2. Professional heating treatment and x-ray detection chamber are especially for welding.
3. Professional thermometer, pressure gauge and safety valve.
Long service Life
1. Material: Q245R or Q345 Boiler Steel Plate, thickness 16mm.
2. Welding: Automatic welding machine with heating treatment and x-ray detection will prolong the service life of
reactor to the max.
Energy Saving
1. Well sealing for heating system, no gas leak and saving fuel.
2. The exhaust gas will be recycled for reactor heating.
Environmental Friendly
1. Well water de-dusting system can avoid black smoke.
2. The exhaust gas will be recycled for heating reactor, no gas pollution
3. Every junction of the tyre recycling machine reactor is in good sealing situation with professional sealing material.
Main Parts of tyre recycling plant
Feeding System
Condenser
Oil Tank of tyre recycling plant

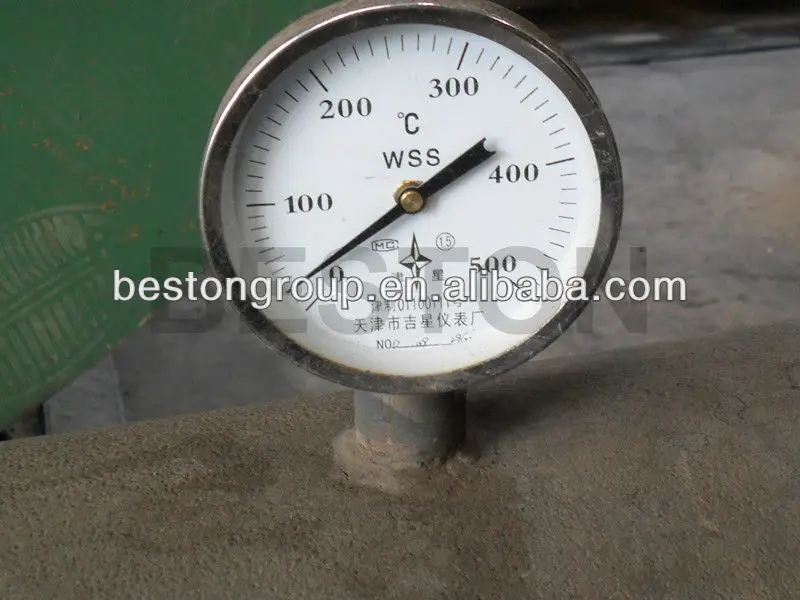

The tempreture meter
\Dedust System of tyre recycling plant
Water Cooling System of tyre recycling plant

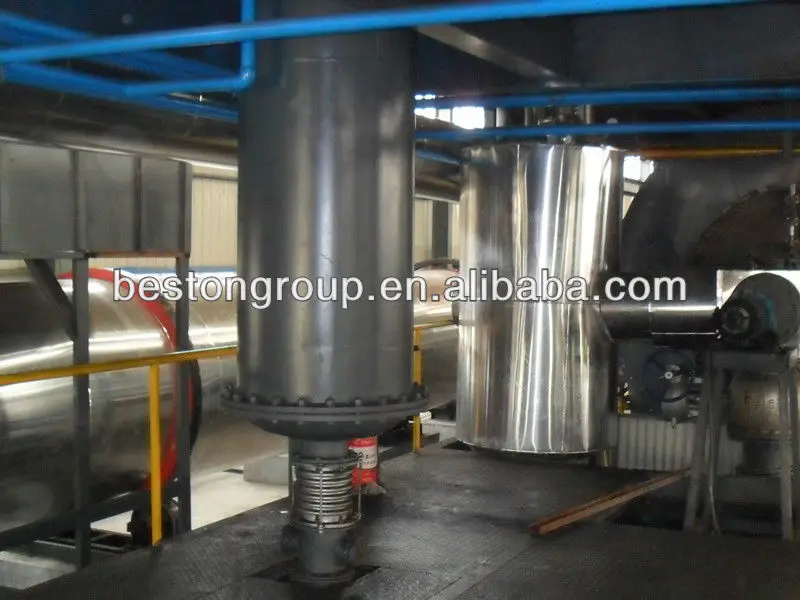

The running production line
Usage of the end products:
NO. | Name | Percentage | Usage |
1 | Tyre oil | 50% | • can be sell directly. |
• make diesel and gasoline by use oil distillation machine. | |||
• can be as fuel. | |||
2 | Carbon black | 30% | • can be sell directly. |
• make fine carbon by the carbon black grinding equipment. | |||
• make carbon brick by briquetting equipment. | |||
3 | Steel wire | 12% | • can be sell directly. |
• make steel bloom by hydraulic press-packing | |||
4 | Combustible gas | 8% | • can be as fuel heating the reactor |
• extra gas also be storage as fuel for other heating. |

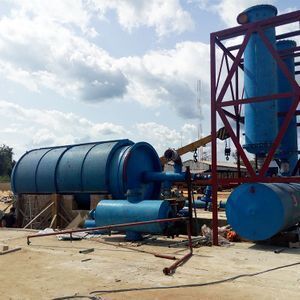

Full automatic continuous pyrolysis tyre system 20T/D.
