CE/ISO9001Plastic pipe puller machine profile haul off machine

Supplier: Zhangjiagang Huaming Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Steven Chen
Price: $500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Product Type:	Plastic Profile;	Payment Terms:	L/C,T/T;
Max. drawing size:	80*80(mm);	Processing Type:	Haul-Off Machine;
Condition:	New;	Drawing speed (m/min):	0.3-10(customizable);
After-sales Service Provided:	Engineers available to service machinery overseas;	Certification:	CE,ISO9001;
Applicable Industries:	Manufacturing Plant;	Brand Name:	Huaming;
Weight(kg):	400kg;	Drawing power(kw):	0.75kw;
Max. drawing hight:	800-1000(mm);	After-sales Service Provided:	Field installation, commissioning and training;
Place of Origin:	China;	Model:	DY-600D;
Dimension(LWH):	CAPACITY;	Voltage:	380V 50HZ 3Phase(Customized);
Appearance size(mm):	10005501500mm;	Warranty:	1 Year;
Power(W):	0.75KW;	Weight:	400kg;
Supply Ability:	10 Unit/Units per Month;	Port:	Shanghai;
Packaging Detail:	Standard export packing- wooden cases;

Product

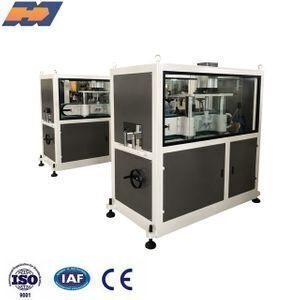

DY Series Haul-off Machine

Usage & scope of application
DY series tractor is rubber block type which adopts double belt hauling mode. DY-D series tractor is rubber belt type for plastic profile. It adopts twin rubber belt hauling mode. Both of these two series are used together with plastic extruder for hauling the plastic pipes, plastic flexible pipes and kinds of plastic profiles. The application range is wide and operation is easy. Our tractors can be driven in many different ways to meet almost all the requirements for extruding products. It is an necessary auxiliary machine for plastic extruding & processing.

Characteristics:
Double hauling mode is used for wide range application;
The speed regulation range is wide as stepless speed regulation is adopted;
Uniformly hauling speed;
Low noise;
Compact structure & beautiful appearance;
Coding length-counting device is selectable for precisely measuring.

Technical Standards of DY(D) series Haul-off Machine:

Model	DY-600D	DY-1	DY-2	DY-3	DY-3A
Drawing speed (m/min)	0.3-10(customizable)			0.4-5	0.3-5
Max. drawing size(mm)	80×80	120×120	150×150	210×160	210×160
Max. drawing hight(mm)	800-1000	800-1000	1000-1100	950-1050	800-4000
Drawing power(kw)	0.75	1.5	3	4	5.5
Appearance size(mm)	1000×550×1500	1250×650×1600	1550×800×1750	2740×1200×1800	2200×1000×1750
Weight(kg)	400	500	700	1200	300
