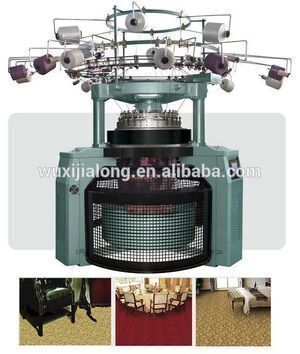

JL09 26inch Computerized Jacquard Loop Cut Carpet Knitting Machine

Product details
Payment Terms:L/C,D/P,T/T;Model Number:JL09;
Voltage:380v/220v/Customizable;Power(W):4KW;
Warranty:1 Year;Dimension(L*W*H):2500*2250*2250MM;
Place of Origin:Jiangsu China (Mainland);Certification:ISO9001;
Brand Name:JIALONG;Condition:New;
Weight:3Ton;After-sales Service Provided:Engineers available to service machinery overseas;

This carpet knitting machine is designed for jacquard carpet, rug, bath mat and car mat.



This carpet knitting machine is developed by the combination of the knitting technology we accumulated many years and the principle of the latest knitting machine.This machine is a creation in China and reaches advanced level in the world.There are many advanced devices in the machine,such as Japanese WAC piezo-ceramics selector,Denmark Danfoss frequency transformer for speed adjusting and auto-oiler that oil the different place with different amount as requirement.

The machine is designed for knit plain velvet fabric,terry loop fabric,pattern fabric with high and low terry loop and pattern fabric with velvet and terry loop,which can be in one,two,three or four colors.The knitting machine is provided with software for editing program of pattern,UBS socket and LCD screen with buttons,so that you can set up various knitting process directly on the computer in machine.It is easy to understand and operate.

This machine can knit the fabrics with various plane patterns or three-dimensional patterns for carpet,tapestry,handicraft,toy,bedding articles and so on.





model

JL 09

diameter

26 inch

gauge and needle

11E-912 15E-1200 18E-1440

speed

18rpm(adjust by frequency transformer)

motor power

4KW

pile height

6-12mm

raw material

acrylic,polypropylene,polyester,cotton,wool,rayon and so on

yarn count range

16s-10s/2

width of gray fabric

2m-2.2m
