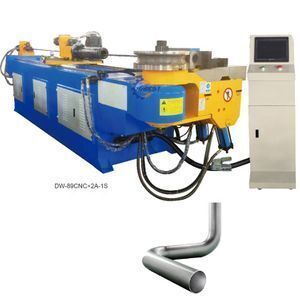

Pipe Bending Machine 3D CNC Truck Car Exhaust Tube Bending Machine For Make Chair

Supplier: Nantong Jobest Machinery Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jack Wang
Price: $4500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Automation:	Automatic;
Single gross weight:	1,500 KG;	After-sales Service Provided:	Engineers available to service machinery overseas;
Extra Services:	Machining;	Selling Units:	Single item;
Local Service Location:	None;	Place of Origin:	Jiangsu China;
Weight (KG):	2000;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant;
Servo motor:	Mitsubishi, JAPAN;	Brand Name:	JOBEST MACHINERY;
Package Type:	High Quality 3D Tube Bending Machine - Covered by plastic film and fixed by steel wire in containers, well protected during shipping;	PLC:	OMRON;
Material / Metal Processed:	ALLOY,Brass / Copper,Carbon Steel,Stainless Steel,Aluminum;	Max. Bending Angle (Deg):	190;
Machine Type:	Pipe and Tube Bending Machine;	After Warranty Service:	Video technical support;
Bending Radius (mm):	200 - 210;	Power (kW):	4;
Product name:	3D Tube Bending Machine;	Bending Precision (Deg):	0.1;
Single package size:	260X90X130 cm;	Type:	Hydraulic Bending Tools;
Key Selling Points:	±0.1 highest precision;	Application:	Pipes Processing;
Year:	2019;	Warranty:	2 years;
Showroom Location:	None;	Raw Material:	PIPE;
Certification:	CE;	Hydraulic Parts:	YUKEN, JAPAN;
Electrical Parts:	SCHNEIDER, FRANCE;

Pipe Bending Machine 3D CNC Conduit Tube Bending Machine

Pipe Bending Machine 3D CNC Conduit Tube Bending Machine

- It is fully automatic pipe bending machine, with PLC control system, two servo for rotary, feeding.

- Touch screen panel display English, have different bending degree prefabricate, dialogue operation, can choose manual, semi-automatic and full automatic operation manual, portable pedal switch with start and emergency stop function.Multi axes working simultaneously.

- Bending pipe — Automatic. Rotating pipe — Automatic. Feeding pipe — Automatic.

- One key back up of programs for USB or disk storage or through INTERNET. Management and storage of bend data and tools is done in standard text files on the hard disk of the control PLC. In case of requirement it is also possible to integrate the PLC into bending machine. Therefore an Ethernet adapter is included. The number of tools and products is practically unlimited. Product and tool files can easily be edited (also on a separate PLC) and printed out.

- Security code for protection data setting and selected operation features of Pipe bending machine.

- To access to history bending setting data to facilitate study of malfunction with one set of tooling.

- All parts of hydraulic system, control system, driver system and display system are imported from famous brand, with high accuracy, high efficient, suitable for mass production.

- CNC fully auto, have cubical space bending equipment, loading whole bending process is automatic.

- The machine is convenient operation, stable performance and high safety factor. Our JOBEST MACHINERY Pipe bending machine is ideal choice for pipe processing.

- CE, ISO9001, SGS Certification for our Pipe bending machine

3D Tube Bending Machine

- Interactive PLC touch screen offers easy access to auto and manual operating modes.

- System diagnostics and multiple language capability.

- Standard clockwise bending direction.

- Fully hydraulic clamping on clamp die and pressure die.

- Drop-way hydraulic clamping.

- Direct acting hydraulic pressure die with adjustable speed valve.

- Maximum 100 sets of program storage, Maximum 32 bends for each program.

- With Independent programmable speeds Y, B, and C axes.

- Programmable material spring back settings for each bend angle.

- Automatic release of tube prior to final bend.

- Bending Axis - Driven by Cylinder, Feeding Axis - Driven by Servo Motor, Rotating Axies - Driven by Servo Motor.

- Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.

- Foot Pedal Cycle start.

- With Air Cooling System / Water Cooling System.

- One set of Tooling for Draw Bending.

- Wiper die Bracket.

- 1 Mandrel Rod.

- Operation and Maintenance Manual.

- Tool Box with Adjusted Tools.

- Electric: As required (3 phase 220V or 380V or 415V...)

3D Tube Bending Machine

- Industrial Computer Controlling

- Anticipate Mandrel Extraction

- Automatic mandrel/machine lubrication

- Anti-clockwise bending direction

- Machine effective length over mandrel

- Safety Mat

3D Tube Bending Machine

1.Touch Screen: Taiwan Weiview

2.PLC: Japan Mitsubishi

3.Servo motor: Japan Mitsubishi

4.Valve: Japan Yuken

3D Tube Bending Machine

WHY CHOOSE US - JOBEST MACHINERY?

Pre-sale:
(1) Regarding your demands, the best suitable machine will be recommend you, the customized machine also support;
(2) Regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A, FORM-E, FORM-F, original certificate signed by Embassy.etc.
(3) All the machine will be tested before delivery, and we will take the video and pictures to you. When you receive it , it can work directly.
After-sales
(1) We will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2) All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can’t solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.
Guarantee:
One year for whole machine , any parts except consumables broken regarding machine quality within one year,We will send you the parts for free.
All the service is for machine whole life.

Nantong Jobest Machinery Technology Co., Ltd founed in 1998, is a leader Manufacturer Factory of Metal Forging Machine. Such as CNC Pipe bending machine, Shearing Machine, Press Brake Machine, Plate Rolling Machine, Profile Bending Machine, Hydraulic Press Machine, Notching Mahine, Iron Worker Machine, CNC Laser Cutting Machine, Roll forming machine etc. Meanwhile we're familiar with kinds of Processing Machines to help our clients choose the most suitable machine on the best quality by economically.

1. What kind of pipe materials can bend?

Carbon steel, stainless steel, Aluminum, Copper pipes, tubes, profile

Boil bank tubes bending

Condenser tubes bending

Wheelbarrow pipe bending

Exhaust pipe bending

Automobile pipe bending

Solid bar bending

Garage door profile bending

2. How to choose pipe / tube bending machine

According following informtaion to choose pipe / tube bending machine type:

1). Bending Pipe / Tube materials

2). Max. outside diameter of your bending pipe / tune

3). Wall thickness range of pipe / tune

4). Max. bending radius (CLR), if possible (general 1.5*OD)

5). Bending drawings or photos, samples if possible

3. Do you provide training to operation High Quality 3D Tube Bending Machine?

1). Will provide operatiing video and manual book with our pipe bending machine.

2). Welcome your operators to our factory, we'll arrange everything at our factory.

4. What about your 3D Tube Bending Machine main component?

1). PLC: Japan Mitsubishi
2). Servo motor: Japan Mitsubishi
3). Hydraulic system: Japan Yuken
4). Main Motor: Siemens
5). Electric parts: Schneider

5. Any optional functions for 3D Tube Bending Machine?
1). Servo motor for axis: 2axis(standard for CNC type),3axis,4axis,5axis,6axis..
2). Control System: PLC(strandard) or IPC
3). Bending mould layer: single layer(standard) ,double layers,triple layers and more.
4). Push bending function: V
5). Hole Punching function:E

6. What about your machine warranty?
One year warranty after machine reached customer's workshop.
And use famous brand components for long working lifespan.
7. What certificate for 3D Tube Bending Machine?
We have ISO certificate for our factory and CE Certification for our machine.
8. What delivery time for 3D Tube Bending Machine?
Within 30 working days after received advanced payment.
