3ton 5ton 10ton 20 ton KD type manual hand mechanical screw steel lifting jack price rack and pinion jack

Supplier: Dalian Shuhui Mechanical Equipment Co., Ltd.
Region: Liaoning, China
Contact: Mr Manager
Price: $50.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Model Number:	KD;	Type:	Mechanical Jack;
Supply Ability:	10000 Piece/Pieces per Month;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
color:	red,blue,or customized;	Capacity (Load):	1-10T;
Max Height:	250mm;	Place of Origin:	Hebei China (Mainland);
Port:	tianjin port ,shanghai port ,dalian port;	Brand Name:	SHUHUI;
Packaging Detail:	cartons or wooden cases ,or as per your required;	Certification:	CE;

Product Description

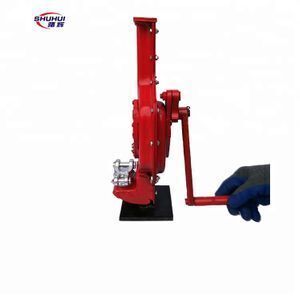

3ton 5ton 10ton 20ton KD type manual hand mechanical screw steel lifting jack price rack and pinion jack

Fixed Claw .
. Handles for easy transportation.
. Loading on head or claw.
. Stable with large base plate.
. Double pawl brake system , make jacks quick braking , safe and reliable .
. Sturdy structure , light weight and quick lift performance , high quality material CRS plate , carburized alloy steel gears .
. For industrial use .
. Powder coated with blue , red or as request .

Type	KD2-3	KD3-5	KD7-10	KD10-20
Max. lifting capacity(Tons)	3	5	10	20
Max hooking capacity(Tons)	2	3	7	10
Max lifting height(mm)	200	200	250	300
Mini. Hook Height(mm)	60	60	70	90
Max Hook Height(mm)	260	260	320	390
Mini Top Height(mm)	520	530	640	750
Max.Top Height(mm)	720	730	890	1050
Weight (kg)	17.5	18.5	30	53
