800m DTH Crawler Mounted Water Well Drilling Rig borehole water boring machine

Supplier: SH Hardrock Heavy Industry Co., Ltd.
Region: Shanghai, China
Contact: Mr Havy Chen
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union;	Port:	Shanghai;
Type:	DTH Drilling Rig;	Weight:	15500Kg;
Place of Origin:	Shanghai China (Mainland);	Fast Forward Speed:	28m/min;
Voltage:	Diesel Engine Driven;	Power(W):	110KW;
Brand Name:	Hardrock;	Rod Length:	4.5m;
Max Drilling Depth:	700m;	After-sales Service Provided:	Engineers available to service machinery overseas;
Supply Ability:	200 Set/Sets per Month;	Warranty:	1 Year;
Dimension(LWH):	8.82.33.2m;	Drilling Diameter:	0-450mm;
Shaft Pressure:	6T;	Air Consumption:	20-100m3/min;
Condition:	New;	Certification:	ISO;
Air Pressure:	1.2-6.5Mpa;	Usage:	Water Well;
Lifting Force:	40T;	Delivery Detail:	10 working days;
Packaging Detail:	1*40'GP container;	Power Type:	Diesel;
Fast Lifting Speed:	19m/min;	Rod Diameter:	89/102/114/127mm;
Model Number:	HM-800B;

Product Description

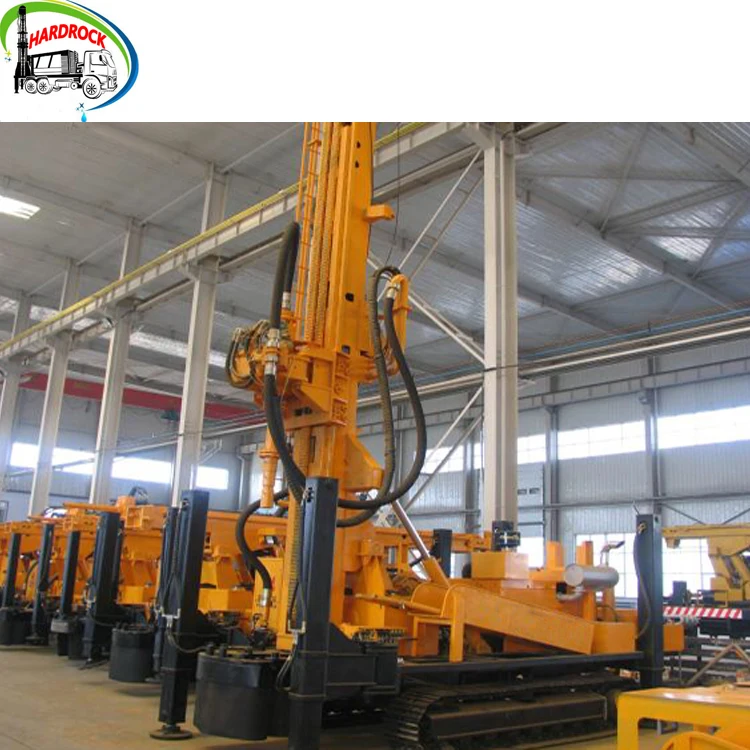

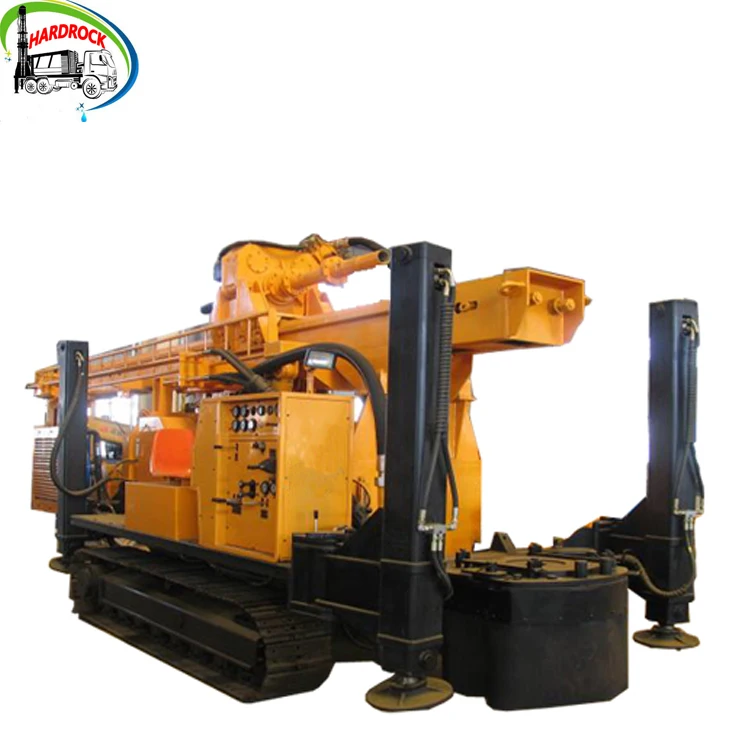

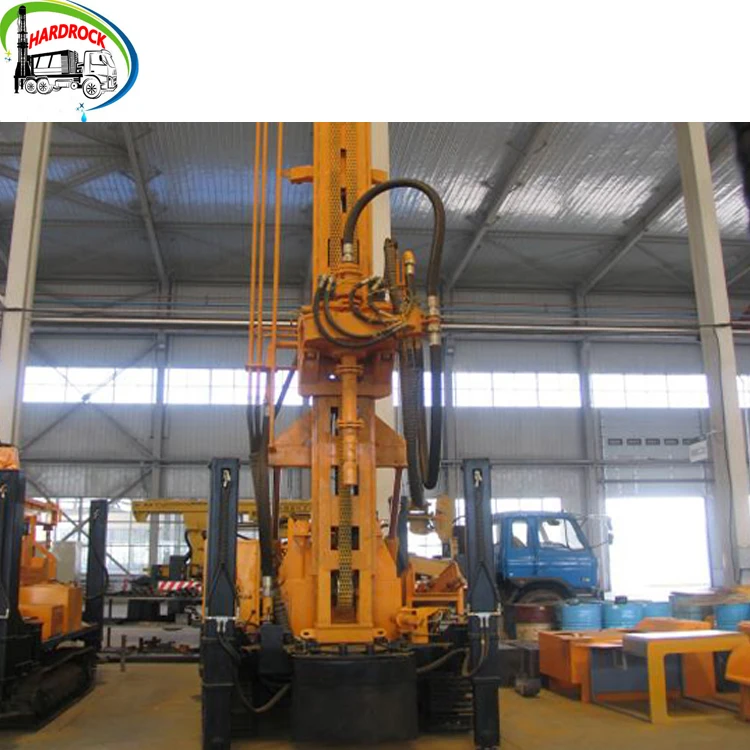

800m DTH Crawler Mounted Well Drilling Rig Introduction:

Model Number:	HM-800S	Weight	15.5T
Warranty:	1 Year	After-sales Service:	7X24hours Available
Drilling Diameter:	140-450mm	Drilling Depth:	700m
Drill Pipe Diameter:	89-127mm	Max Pull Force:	40KN
Usage:	Water Well Drilling	Type:	DTH Drilling Rig
Drilling Methold:	DTH Drilling & Mud Drilling
Matching Power:	13.2KW	Engine Brand:	Cummins

Main Features:
1. 800m DTH Crawler Mounted Well Drilling Rig is compact, suitable for narrow drilling condition, and the max drilling depth could reach 700m.
800m DTH Crawler Mounted Well Drilling Rig is top driven and multi-functional, which is featured of high technology, easy operation, high efficiency and reliability. They are widely applied in well drilling, geotechnical drilling, geothermal drilling, mining exploration, offshore drilling, etc. This DTH crawler drilling rig could work in any different conditions through pneumatic drill driven by air compressor, it has high drilling speed even in rocks which hardness is with f=4-20.

2.Perfect Maneuverability with hydraulic control.

In order to fulfill various application cases, the main parameters of drill can be adjusted, such as rotation speed, torque, feeding pressure anti-feeding pressure, feeding speed, lifting speed.

3.Rotation, feeding, lifting by Top driven.

Easier for rod changing, reducing rod changing time, better for follow – down drilling.

4. Multi-functional drilling

Multiple drilling ways could be worked on this rig, such as DTH drilling, anti-air circulation drilling, anchor drilling, rotation drilling, and follow-down drilling, as well as core drilling.

There are optional parts added per customers’needs, such as mud pump, foam pump, generator as well as different types of winches.

5. Low operation cost

Down the hole drilling for rocks has the lowest drilling cost with highest level of working productivity.

6. Crawler chassis with long stroke jack cylinders

Long stroke jack cylinders are easy for truck self loading during transportation, and crawlers are of better mobility in mud working sites.

7.Adjustable feeding pressure to get the best feeding force at various drilling depths.

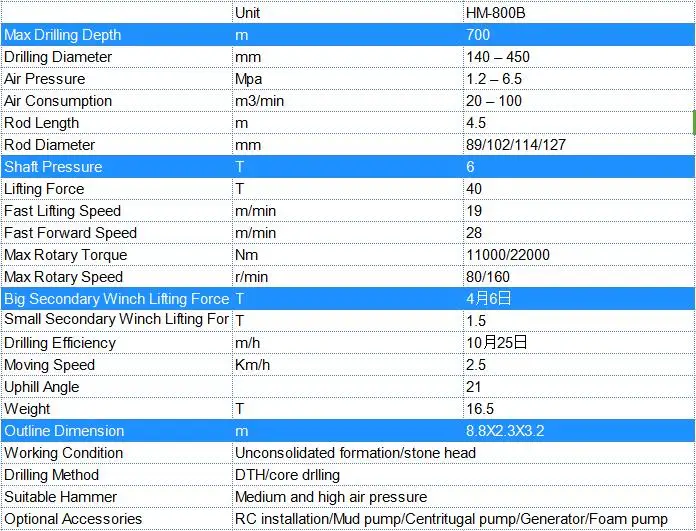

Full Data:

800m DTH Crawler Mounted Water Well Drilling Rig boring borehole machine

DTH Trailer Mounted Water Well drilling Rig Portable Drilling Machine

Hot selling products mine drilling rig exploration drill rigs coal machine

600m Truck Mounted Borehole water Well Drilling Rig boring machine

ABOUT

Shanghai Hardrock Drills Co.,Ltd is located in Shanghai, who is dedicated in designing and manufacturing the drilling rigs. The rigs have been widely used in water well drilling, soil sampling, geotechnical testing, mine exploration, foundation drilling, geothermal drilling, etc.

Shanghai Hardrock Drills Co.,Ltd has a powerful technical force and fine equipment.

It’s capable to design, manufacture, and assure the quality of whole series of drilling rigs. The products are sold to over thirty countries and regions including Asia, Africa, Europe, and South America. Shanghai Hardrock Drills has been ISO9001 quality system and national CCC certification approved.

Our Advantages

OUR ADVANTAGES

Manufacturing Facility

Fully Equipped manufacturer facility with experienced staff

Design and Development

Using the latest FEA modeling software to drive product design

Customer Training

Experienced driling engineers could provide training as requested

After sales support

Highly trained service team are always ready to support.

FAQ

1) Q: Are you a factory or trading company?

A: since 2005, our factory mainly produce water well drilling rig, truck-mounted drilling rig, trailer-mounted drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Africa, South America, Asia, and get a good reputation in the world.

2) Q: Where is your company and factory located? How can I visit you?

A: Our company is located in No.3128 Huyi RD,Jiading District,Shanghai,China. Post code: 201800. All our clients, from home or abroad, are warmly welcome to visit us!

3)Q: How does your company and factory do regarding quality control?

A: Quality is priority. Hardrock always attach great importance to quality controlling from beginning to the end.

Our factory complies with the IS09001 standard strictly.

4) Q: What is your after-sale service?

A: Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

5)Q:What about the quality warranty?

A: We offer one-year quality warranty for machines' main body.

6) Q:How long can you deliver the machine?

A: Generally, we can deliver the machine within 10 days.

After sales service

After sales service:

-Technical training for new machines.

-On site service available for quality problem.

-Timely reminding for machine maintenance.

-Construction solutions will be provided for different geological conditions.

-Remind you of the wearing parts.

-7*24 hours reply to your questions.

Parts:

Hardrock suggests our customers using the original factory’s spare parts which are designed and dimensioned for best performance.

Warranty:

Hardrock provides standard one year warranty to main machines, and customers are offered to an extended service of 3 or 5 years warranty coverage.

Training Service:

– Operator training

– Market training

– Service training

Safety:

Only trained and qualified operators, directed under safety and knowledge supervision are eligible to operate the machines. Safety could only be guaranteed if the equipment users and operators run the machines:

– In compliance with the employer, job site and government rules.

– Following safe work practices.

– Following the operators manuals.

Service & Maintenance:

Our highly trained service professionals are always ready to provide after sales service and maintenance. Just click "Contact Us" on the navigation menu.

Packaging & Shipping
