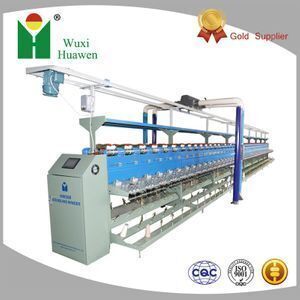

HW368 Doubling winder machine

Supplier: Wuxi Huawen Machinery & Electronics Co., Ltd.
Region: Jiangsu, China
Contact: Ms Kate Chen
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Automatic:	No;	Supply Ability:	3000 Set/Sets per Year;
Condition:	New;	Scope of application:	POY, cotton, wool, blended yarn;
Type:	Winder Machine;	Delivery Detail:	30 working days after receiving 30% deposit;
Brand Name:	HUAWEN;	Power(W):	78w x 96 spindles;
Production Capacity:	HIGH SPEED;	Certification:	ISO9001:2008;
Model Number:	HW368;	Packaging Detail:	To be packed with that suitable for export shipment;
Spinning Method:	doubling machine;	Weight:	3000kg;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Dimension(LWH):	16260x1410x1600;
Place of Origin:	Jiangsu China (Mainland);	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	Shanghai port;	Application:	Chemical Fiber, Short Fiber;

Product Description

Product Application

The machine is mainly applicable to joining cotton, wool, polyester, chemical fiber and blended yarns, double raw material bobbins of different specifications into parallel bobbins for processing on short twisting machine.

The main technical parameters are listed as follows:

Machine type	Double sides, single layer
Application	Cotton yarn: 16/2~120/2Ne
	Wool yarn: 2/17~2/76Nm
	Blended yarn: 20/2~45/2Ne
Spinde distance	334mm
Section distance	2008mm
Doubling speed	100~600m/min
Max. winding size	Φ160 x 152mm (1100g for 166 type spindle)
Max. winding size	Φ130 x 152mm (800g for 146 type spindle)
Winding traverse	152mm
Winding package type	Cylindrical
Winding tube specification	Φ43.5 x Φ37.5 x 170mm (+2)
Winding tube specification	Φ51 x Φ45 170mm (+2)
Groove drum specification	Φ82 x 178mm
Motor power	78w x 96 spindles
Motor driving mode	One coaxial AC motor per spindle
Bobbin frame holder	Adjustable limit cam frame
Number of yarns	2-3 yarns or customize
Anti-overlap device	Frequency inverter anti-overlapping
Length counter	Set the length of each spindle by transmission/control panel in machine head

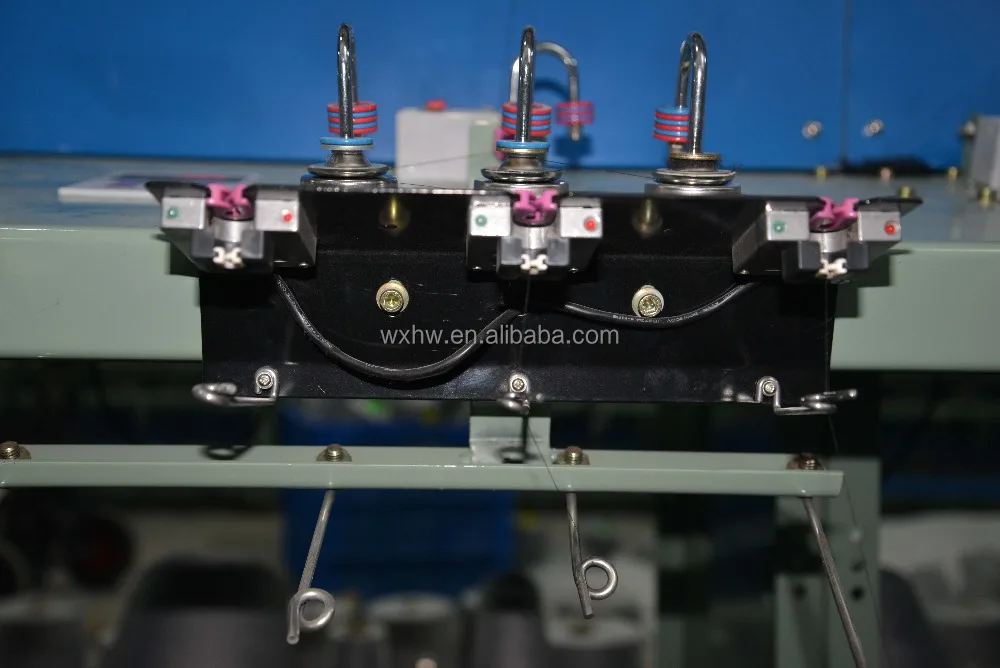

Tension device form	Pad type tension plate
Broken yarn cutting form	Photoelectric yarn detection and automatic yarn cutting
Yarn Meeting form	R type procelain ring
Weight	About 3000KG
Overall dimension	16260 x 1410 x 1600mm (L x Wx H)
Optinal	Air Blower device

Main Features

1. High quality bearing: NSK brand
2. High quality inverter: MITSUBISHI brand
3. Each motor controls each spindle
4. Automatic spindle speed and electronic yarn counter (separately)
5. The spindle will stop automatically when the package is full or when the yarn breaks
6. It adopts 485 communication.
7. There is a touch screen on the machine head, which can set the data or clear the data as your requirements.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

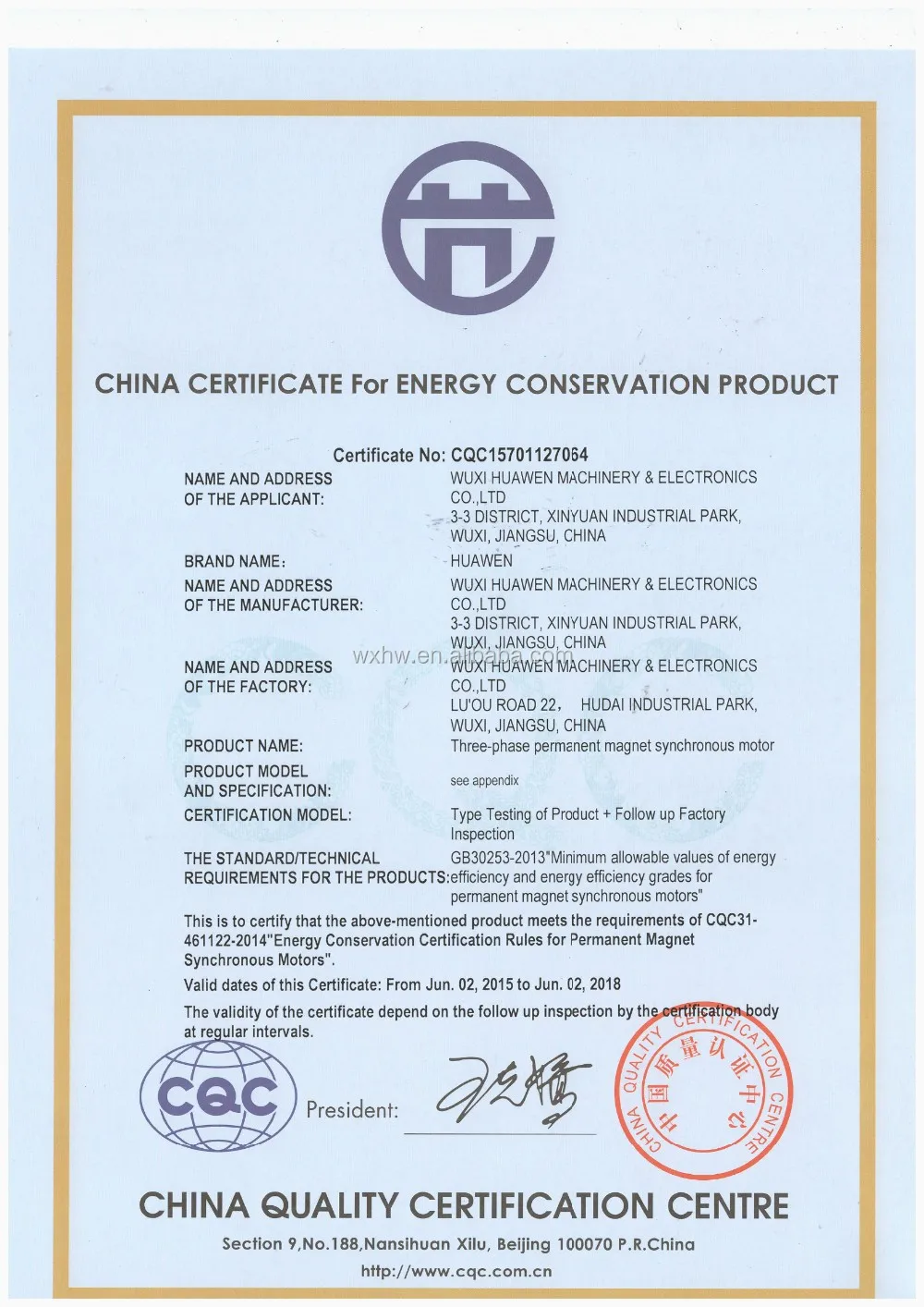

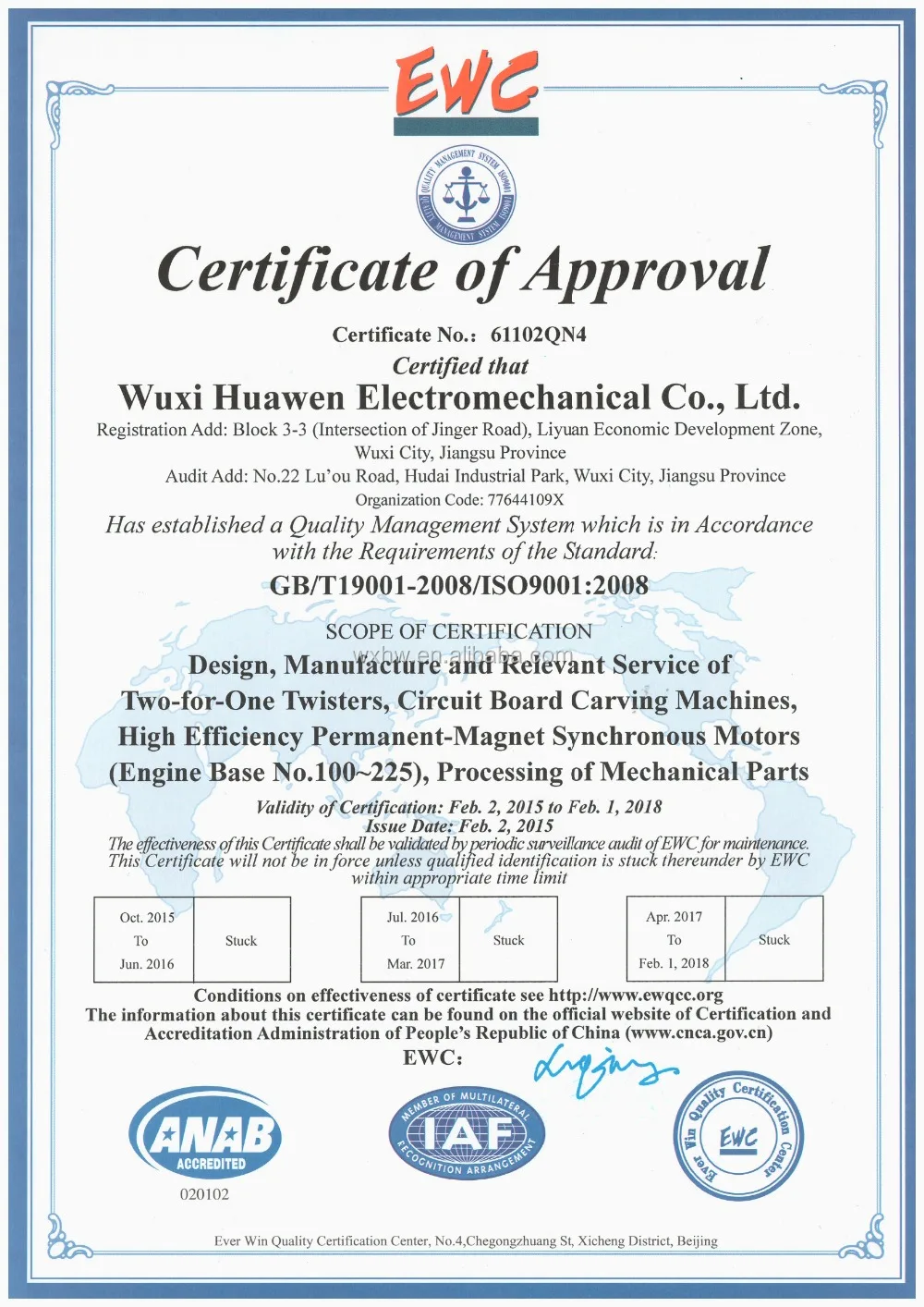

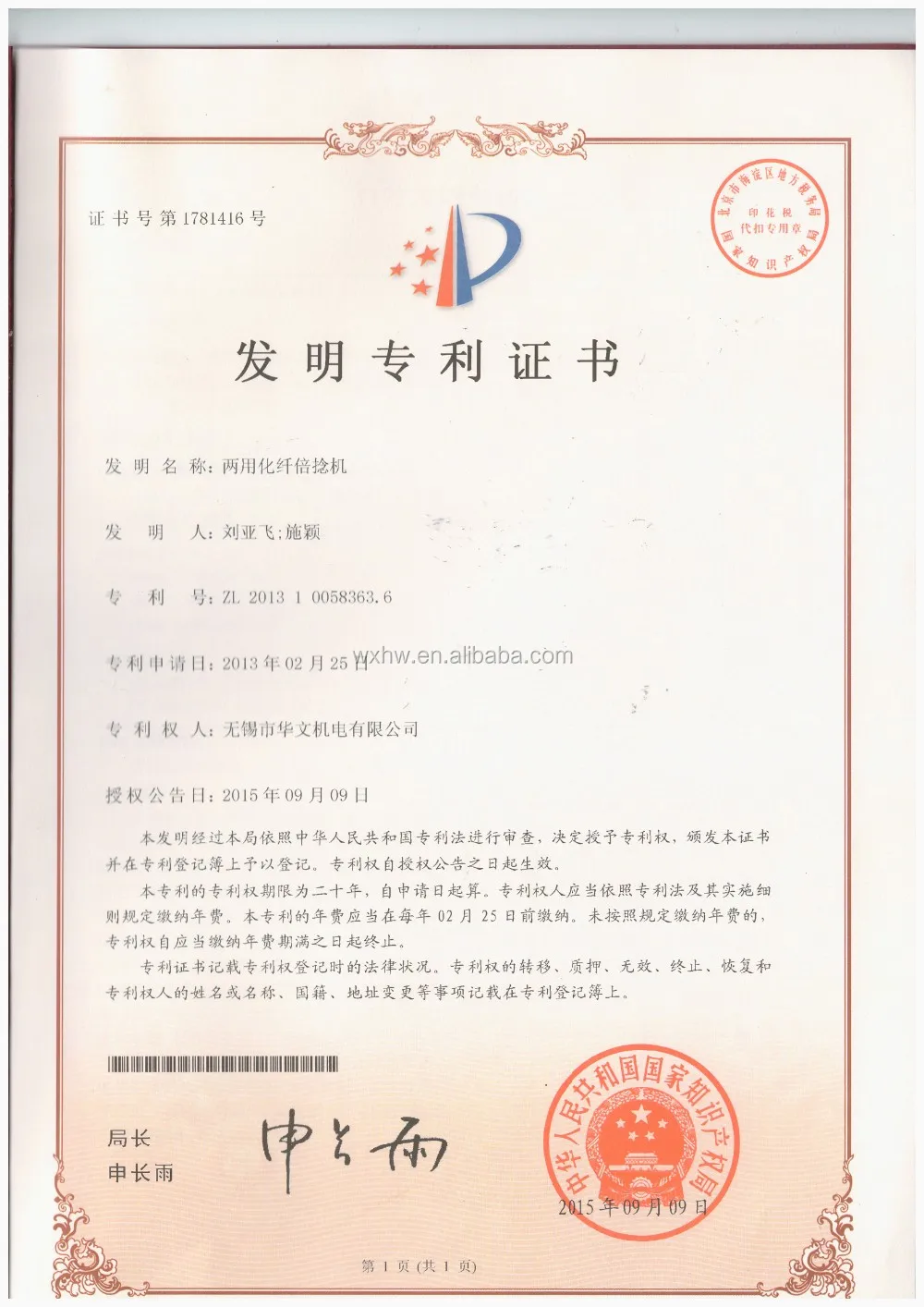

Certifications

FAQ

1. Are you the manufacturer or the trading company?
We are the experienced manufacturer of textile machines, especially for the two-for-one twisting machines, doubling winder machines, yarn covering machines and etc. We have got the self-support imports and exports right.

2. What is your advantage compared with other textile manufacturers?
We are expert at making yarn machines for almost 20 years and we have a professional technical team who can provide special customer requirements. Our machines have been exported to a lot of countries such as Vietnam, South Korea, Uzbekistan, the Philippines, Tunisia, Morocco, Iran and so on.

3. What kind of service can you offer?
Design with your requirements by professional team.
ISO 9001:2008 certificates and letters patent.
Engineers go overseas for training.

4. How to check my order at last?
We warmly welcome you to visit our company in Wuxi, which is close to Shanghai, for checking your machines. If you don’t come here, we can also take photos and videos for your confirmation.

Packing & Delivery

Packaging
Size	16260 (L) * 1410 (W) * 1600 (H)
Weight	About 3T

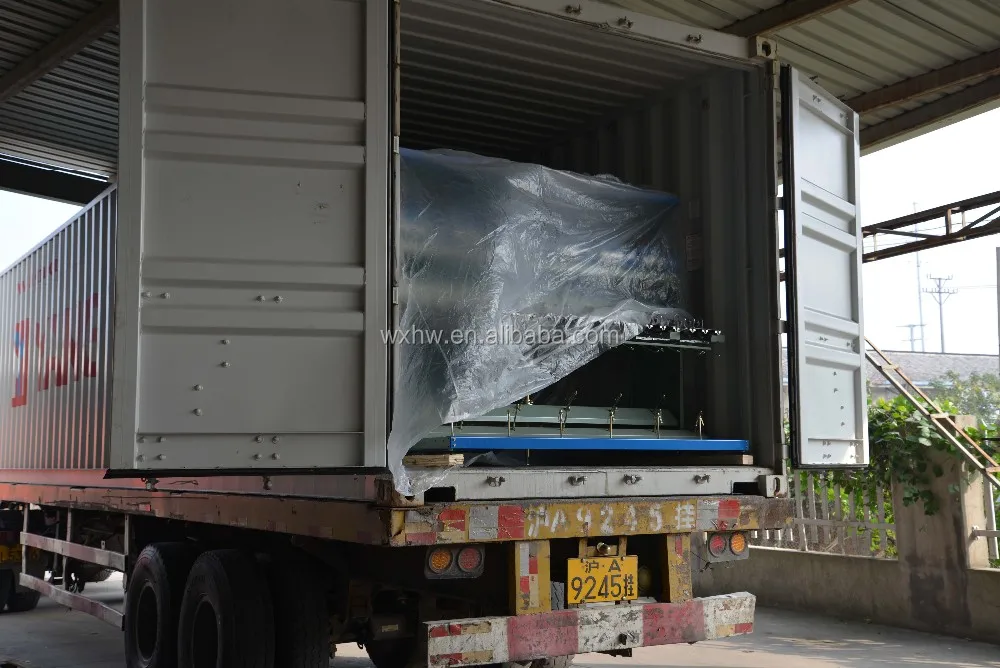

Packaging Details	We mostly use the nude cargo with waterproof plastic bags. We will separate the whole machine into sections after adjustment, and then put each section one by one into a 40GP container for shipping.

Our Company

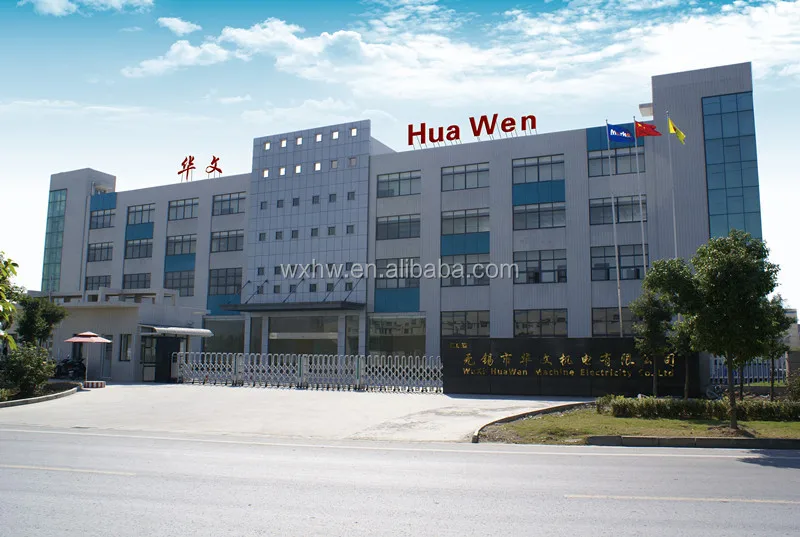

About Wuxi Huawen.

Our company was established in 1997 and has got a lot of experience in the yarn machinery field.

We are firstly famous for the design and manufacturer of spindles, and then we are known for the manufacturer of two for one twisters and doubling winder machines. We've got high reputation in this field and have already sold a lot of our machines to many countries.

HW363 / HW363J-2 Two for one twister

HW363 or HW363J-2 are used to twist short fiber such as cotton yarn, wool yarn, cashmere, jute yarn and blended yarns. These machines are usually equipped with HW368 Doubling winder machines.

For more information, Plz click the above pictures.
