Category of 3-point link: | Rear, Category II; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Clutch: | Dry,dual-stage type; | Hydraulic output valve: | 2-way; |
Condition: | New; | Product Name: | 100HP Farm Tractor; |
Brand Name: | GP; | Engine: | YTO, 4 cylinder; |
By wheel: | 4WD; | Place of Origin: | Shanghai China (Mainland); |
Supply Ability: | 300 Unit/Units per Month 100HP Farm Tractor; | attachements: | snow blower, 2-plough, seed machine,backhoe,front end loader,etc.; |
Drive type: | 2 Wheel Drive/ 4 Wheel Drive; | Drive Type: | Gear Drive; |
Certificate: | CE, EURO III standard; | Packaging Detail: | Nude packing Dimension: 3200x1750x2300mm; |
Usage: | Garden Tractor; | Gear shift: | 8F+2R/ 8F+4R; |
Type: | Wheel Tractor; | Payment Terms: | L/C,T/T,Western Union,cash; |
Delivery Detail: | 15-20 workdays after receipt of payment; | Port: | Shanghai Seaport; |
Power(W): | 73.5 KW; | Certificate: | CE; |
Model Number: | GP1000/1004; | Rear tyre: | 12.4-28/14.9-24 (optional); |
100HP Farm Tractor 4WD or 2WD with nice design GP1000
Advantages:
1,this series product is a middle and small hp tractor ( 2WD and 4WD )
2,It is matched high-power engine which has characteristics of large power output, easy start, advanced economic index, reliable performance, low noise and good environmental .
3,different configurations according customer's demends: single clutch or two stage clutch,(3+1)x2 six shifts or (4+1)x2 eight shift in which the creeping
4,The beautiful appearance of the tractor adopts international streamline.
5,Hydraulic steering system is equipped for quick and convenient operations. Impact transmission system, large speed range and reasonable shifts can meet different tasks.
6,It is equipped with fully sealed brake differential lock and post PTO so it can be connected with different farm implements easily and finish different field tasks, fixed tasks and transportation efficiently.
Specification:
Catalogue of GP 100HP Series Farm Tractor | ||
Model No. | GP1000 | GP 1004 |
Drive type | 4x2 | 4x4 |
Engine | ||
Engine model | YTO, 4 cylinder, direct injection, in-line, diesel engine | |
Capacity of fuel tank(L) | 150 | 150 |
Rated speed (r/min) | 2300 | 2300 |
Engine power (kw) | 73.5 | 73.5 |
Lowest fuel consumption (g/kw·h) | ≤242 | ≤242 |
Transmission | ||
Clutch | Dry,dual-stage type | Dry,dual-stage type |
PTO Speed(rpm) | 540/1000 or 760/1000(optional) | 540/1000 or 760/1000(optional) |
Gear shift | 8F+4R | 8F+8R |
Hydraulic System | ||
Hydraulic output valve | 2-way (optional) | 2-way (optional) |
Three point linkage | ||
Category of 3-point link | Cagetory II | Cagetory II |
Lifting capacity(at point of 610mm)KN | >15 | >16 |
Technical parameter | ||
Dimension (LxWxH) mm | 4593x2050x2810 | |
Wheel base(mm) | 2195 | 2195 |
Track base(mm) front wheel | 1485 | 1610 |
Track base(mm) rear wheel | 1620-2020(usual 1620) | 1620-2020(usual 1620) |
The smallest clearance(mm) | 476 | 379 |
Front tyre | 6.5-20/7.5-16(optional) | 11.2-24 |
Rear tyre | 16.9-34 |
GP 90HP Series Farm Tractor | ||||
Model No. | GP900 | GP904 | GP950 | GP954 |
Drive type | 4x2 | 4x4 | 4x2 | 4x4 |
Engine | ||||
Engine model | YTO, 4 cylinder, direct injection, in-line, diesel engine | |||
Capacity of fuel tank(L) | 150 | |||
Rated speed (r/min) | 2300 | |||
Engine power (kw) | 66.2 | 66.2 | 69.8 | 69.8 |
Lowest fuel consumption (g/kw·h) | ≤242 | |||
Transmission | ||||
Clutch | Dry,dual-stage type | |||
PTO Speed(rpm) | 540/1000 or 760/1000(optional) | |||
Gear shift | 8F+4R | 8F+4R | 8F+8R | 8F+8R |
Hydraulic System | ||||
Hydraulic output valve | 2-way (optional) | |||
Three point linkage | ||||
Category of 3-point link | Rear,Catetory II | |||
Lifting capacity(at point of 610mm)KN | >15 | >16 | >15 | >16 |
Technical parameter | ||||
Dimension (LxWxH) mm | 4593x2050x2810 | |||
Wheel base(mm) | 2195 | |||
Track base(mm) front wheel | 1485 | 1610 | 1485 | 1610 |
Track base(mm) rear wheel | 1620-2020(usual 1620) | |||
The smallest clearance(mm) | 476 | 379 | 476 | 379 |
Front tyre | 6.5-20/7.5-16 | 11.2-24 | 6.5-20/7.5-16 | 11.2-24 |
Rear tyre | 16.9-34 |

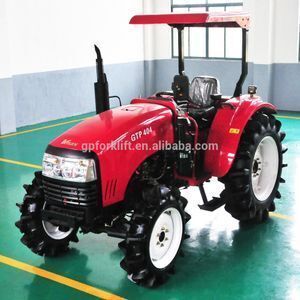

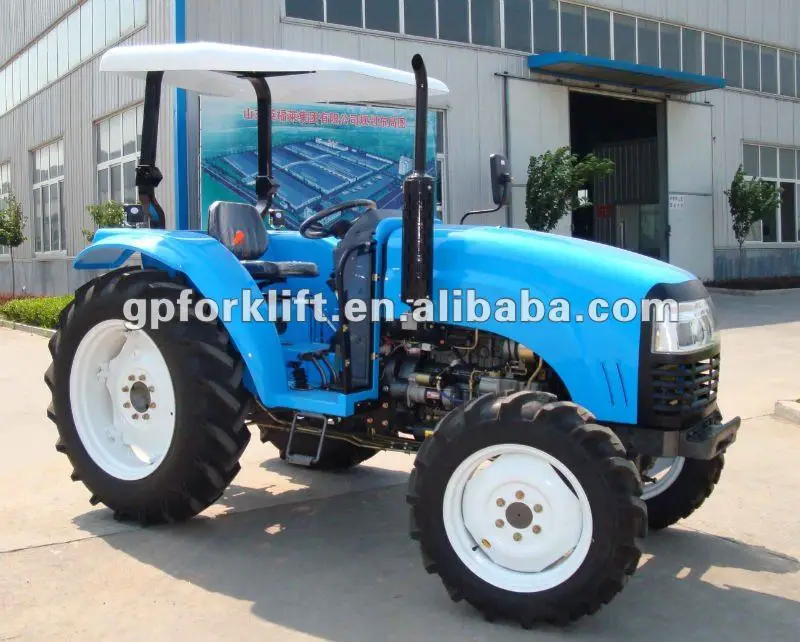

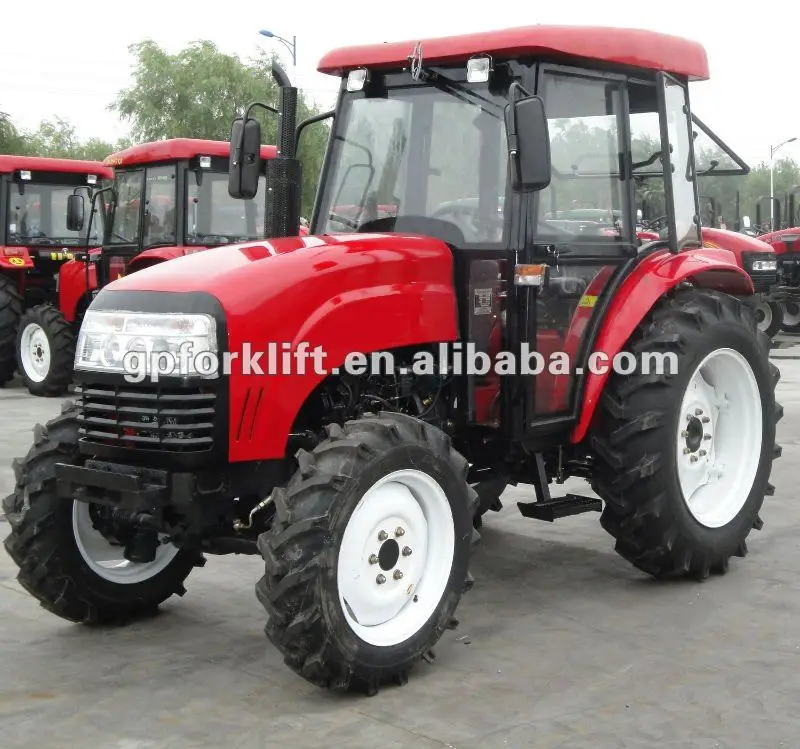

Picture:
