HOT SALE jewelry metal laser fiber 30W 50W raycus fiber laser marking machine manufacturer price

Supplier: Wuhan Optical Valley Laser Equipments Co., Ltd.
Region: Hubei, China
Contact: Ms Anna xiao
Price: $2600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	OV Laser;	Key Selling Points:	Easy to Operate;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Home Use,Retail,Printing Shops,Construction works ,Energy & Mining,Advertising Company,Industrial Tools, Jewelry, Surgical Instruments;	Place of Origin:	China;
Single gross weight:	55 KG;	Lead Time:	3 days;
Marking Area:	50mm50mm--- 300mm300mm;	Warranty:	3 years;
After Warranty Service:	Video technical support,Online support;	Single package size:	77X43X80 cm;
marking machine Speed:	7000mm/s;	Showroom Location:	Egypt,Turkey,United Kingdom,United States,Italy,Germany,Brazil,Indonesia,Pakistan,India,Russia,Thailand,South Korea,Japan,Malaysia;
marking machinesource:	IPG,Raycus, JPT;	Weight (KG):	55 KG;
Condition:	New;	Package Preview:	https://sc01.alicdn.com/kf/Hadc727f1826f448483683f70ca4200fdW.jpg_640x640.jpg,https://sc01.alicdn.com/kf/H6860fd8b204745598819a3e7e42daa56G.jpg_640x640.jpg;
Fiber laser source lifespan:	100,000 hours;	Package Type:	Export wooden case for laser fiber 30w;
Payment term:	TT, Visa;	marking machine head:	Galvenometer;
Spare Parts Type:	Optional;	marking machine Accuracy:	0.001mm;
Local Service Location:	Egypt,Turkey,United Kingdom,United States,Germany,Brazil,Indonesia,Pakistan,India,Thailand,Malaysia,Argentina;	After-sales Service Provided:	Free spare parts,Video technical support,Online support;
Selling Units:	Single item;	marking Depth:	0.01-2mm;

Please Contact Me for More Details:

You could contact me at wechat/whatsapp +8613707153812

Or email sales4(at)zgglaser.com

Separate Type

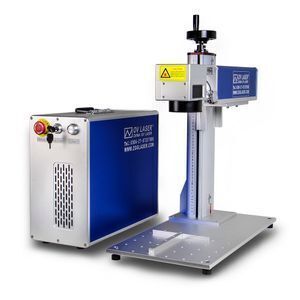

HOT SALE laser fiber 20w 30w 50w Raycus fiber laser marking machine

Application Scope:

It can be used on both metal and non-metal material marking, and It can mark time, date,text, serial and part numbers, company logos, icon, symbol,bar codes, or 2D codes,matrix and vector fonts on all plain, painted, powder coated, anodized, or plated metal surfaces, whether they are flat sheets, curved surfaces, or cylinders.

Application Industry:

· Electronics : Iphone, IPAD, Ipod, Keyboard and more standard parts.

· Jewelry & Acessories : Rings, Pendant, Bracelet,Necklace,Sunglasses,Watches etc.

· Electronic Components: Phone,IPAD,Resistors,Capacitors,Chips,Printed Circuit Boards, etc.

· Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.

· Instrument: Panel Board, Nameplates, Precision equipment, etc.

· Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.

· Automobile Parts: Pistons&Rings, Gears, Shafts,Bearings,Clutch,Lights

· Handicrafts: Zipper, Key Holder, Souvenir,etc.

Laser Marking Machine Parameters.

Model	OV SF-30	Laser source	Raycus
Laser Type	Fiber laser	Positioning Way	Red light
Laser power	20W/30W/50W	Laser Module Life	100000 hours
Weave length	1064 nm	Cooling Style	Air cooling
Marking area	110mm110mm--300mm300mm	Total power	≤500W
Marking speed	7000-12000mm/s	Operating Voltage	220v /110v 50hz
Marking depth	0.01-2mm	Supported Windows	Windows XP,7,8,10
Repetition Precison	0.001mm	Certificate	ISO, CE, FDA
Minimum Character	0.2 mm	Control software	EZCAD 2.14.9
Minimum Line Width	0.01mm	Supported Format	PLT, DXF, DST, AI, SDT, BMP, etc.
Packaging Dimension	774383cm	Gross weight	120kg

How to choose the suitable model?

1. What materials you want to process with?( stainless steel, aluminum,brass, plastic...)

2. Effective marking size? ( 110*110mm, 175*175mm, 300*300mm...)

3. Do you need to mark on cylinder or flat metal plate or production line?

4. Do you buy it for personal use or selling?

Could I make an free sample ?

1.Yes, pls send the vectorgraph marking file and samples to us.Or we can find same materials to test it.

2.After sample finished, we can return it and also make videos,details photos for your reference.

How about the lead time,package and delivery?

1.Standard model 3 - 7 working days after receiving the payment.

2.There are 3 layers of package: waterproof thickening plastic bag,foam to protect from shaking,solid export wooden case.

3.Shipping by DHL Fedex TNT, delivery to airport or by sea.

How about the warranty and after-sales service?

1.Three years for 20 30w power machine, Two years for 50w 100w power machines.

2.24 hours technical support by email ,calling,wechat,whatsapp or remoting.

3. Lifelong free training for operation.

How to install and use this laser marking machine?

The machine is already installed before shipping. We have very detailed English manual for laser system and laser marking software,nearly all customers can learn it well by themselves very easily.We will also guide you if you have any doubts.

What if there is something wrong with laser marking machine?

Pls contact us at first time and do not try to fix it by yourself.We will help to solve it.

How to contact sales for price list, specification,photos and videos?

Contact Person: Ms Jully

Email/Skype: sales4(at)zgglaser.com

Whatsapp/wechat: +86-13707153812

Please feel free to add Lucy’s whatsapp or wechat or skype for convenient communication.
