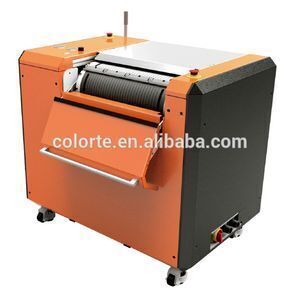

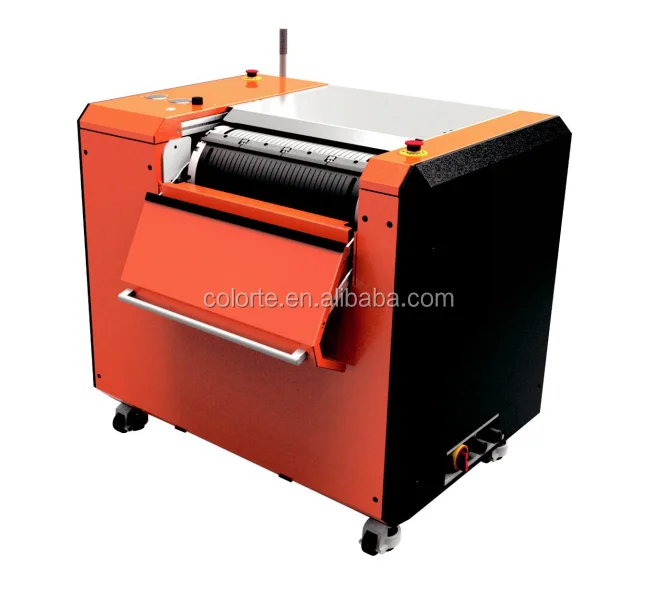

Super quality flexo platesetter ctp machine flexo photopolymer plate making machine

Supplier: Shenzhen Poly Colorte Printing Company Limited
Region: Guangdong, China
Contact: Mr Richard Ma
Price: $48500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	amsky;	Supply Ability:	30 Set/Sets per Month;
Output Speed(P/h):	1.25 m2/h;	Voltage:	200-240v;
Warranty:	2 Years;	Delivery Detail:	30 days;
Place of Origin:	Guangdong China;	Automatic Grade:	Semi-Automatic;
Packaging Detail:	standard export packing suitable for sea shipping;	Type:	Image Setter;
Dimension(LWH):	10877701000mm;	Plate Thickness (mm):	0.15-1.7mm;
Certification:	CE ISO;	Plate Type:	Digital relief flexo plate, digital flexo plate;
After-sales Service Provided:	Engineers available to service machinery overseas;	Exposing method:	External Drum;
Model Number:	Aura 400;	Plate Size:	Max. 680*430mm;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Power(W):	1.1KW;
Condition:	New;	Port:	FOB Shenzhen;
Weight:	400kg;

Super quality flexo platesetter ctp machine flexo photopolymer plate making machine

Product Description

Specification of CTP flexo plate machine:

Technical Specifications

	Aura 600E
Model	Aura 600E
Laser Channel	16CH
Output Speed	1.25 sqm2/h
Max.Breadth	26"×17" / 680mm×430mm
Plate Thickness	0.15mm~1.7mm
Laser Power	High power semiconductor laser diode
Plate Type	Digital relief flexo plate (water -wash),Digital flexo plate (water -wash),Digital flexo plate (solvent -wash)
Application	Label and trademark
Resolutions	4000dpi
Plate Loading	Manual load and unload
Interface	USB2.0
Focus Adjust	Dynamic autofocus
Device Size	1087×770×1000mm(W×D×H)
Net weight	400KG
Power	220V/50Hz,60Hz,Mainframe 1.5KW+Vacuum 1.1KW
Environment	Recommended temperature:18-30℃ Humidity:10%-80%
Features
Drum auto balance	Auto balance system of drums takes no more than 5 seconds to adjust the drum balance block to a position, making the drum stable in high speed rotation.
Auto switch of laser channel	When any laser channel breaks down,laser channel auto switch system can continue outputting through the longest consecutive channel that remains working to ensure non-stop production.
Linear motor	More accurate,more simple,and more reliable
Dynamic autofocus	Keep accurate focus constantly to ensure sharp dot.

Advanced,reliable and high-end plate making technology
