Bridge Launching Girder Crane for Erecting Concrete Box Girders

Product details
Warranty:2 years;Engineer:Available to install overseas;
Brand Name:HY;Packaging Detail:wooden case for electric parts, other naked 1.Adopting full-hydraulic lifting mechanism with high reliability as front and rear supporting point to ensure the safety of supporting points. 2.Lightening and great rigidity design of guiding beam to ensure the longitudinal stability of the machine. 3.Strengthened front;
Color:on request;Certification:ISO BV;
Voltage lower protection function:include;Rated Lifting Moment:/;
Span:10-50m;Condition:New;
Place of Origin:Henan China;Max. Lifting Load:20-900t;
CE:Passed;After-sales Service Provided:Field installation, commissioning and training;
Feature:Bridge Crane;Industrial voltage:on request;
Port:Qingdao/Shanghai;Product Name:Bridge Launching Girder Crane for Erecting Concrete Box Girders;
Payment Terms:L/C,T/T,Western Union;ISO9001 OHSAS:Passed;
Current overload protection system:include;Supply Ability:800 Set/Sets per Year Bridge Launching Girder Crane;
Running style:Rail;Weight overload protection function:include;
Max. Lifting Height:up to you;

Bridge Launching Girder Crane for Erecting Concrete Box Girders





Product Description



 Bridge Girder LauncherMore about our product




 1.Description of Bridge Girder Launcher

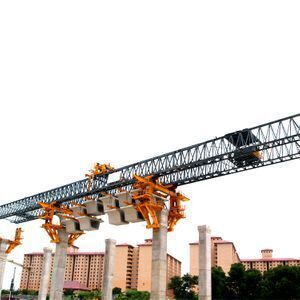

Bridge Launching Girder Crane for Erecting Concrete Box Girders applies to highway, railway bridges to the construction site of bridge construction, its main function is to mention prefabricated good beam slice and delivered on prefabricated good piers.it and general meaning cranes have very big different, high safety requirements.

The capacity:60-200ton

The span : 20-50m

Control Mode: Pendant, Remote Control and Cabin Control.



Technical parameters of bridge girder Launcher:




MCJH50/200
MCJH40/160
MCJH40/160
MCJH35/100
MCJH30/100
Lifting capacity
200t
160t
120t
100t
100t
applicable span
≤55m
≤50m
≤40m
≤35m
≤30m
applicable skew bridge angle
0-450
0-450
0-450
0-450
0-450
trolley lifting speed
0.8m/min
0.8m/min
0.8m/min
1.27m/min
0.8m/min
rolley longitudinal moving speed
4.25m/min
4.25m/min
4.25m/min
4.25m/min
4.25m/min
cart longitudinal moving speed
4.25m/min
4.25m/min
4.25m/min
4.25m/min
4.25m/min
cart transverse moving speed
2.45m/min
2.45m/min
2.45m/min
2.45m/min
2.45m/min
transportation capacity of bridge transport vehicle
100t X2
80t X2
60t X2
50t X2
50t X2
heavy load speed of bridge transport vehicle
8.5m/min
8.5m/min
8.5m/min
8.5m/min
8.5m/min
bridge transport vehicle return speed
17m/min
17m/min
17m/min
17m/min
17m/min



2.Bridge Girder Launcher Details

Bridge Launching Girder Crane for Erecting Concrete Box Girders mainly consisted with main beam, cantilever, under guide beam, front and rear legs, auxiliary outrigger, hanging beam crane, cantilever crane and elecrto-hydraulic system. Applies to three different span single-span simply supported beam erection, with high operating efficiency.

Bridge Launching Girder Crane for Erecting Concrete Box Girders is widely used in highway and railway construction This Machine is used for erecting concrete box girders for high speed (250km, 350km) passenger railway lines. This machine is suitable for equal span girders or different span girders which can be 20m, 24m and 32m, 50m. The rear part has two supports. One of the supports is "C" shape column with rotary and foldabletechnology. The "C" shape column technology saved the traverse space during traveling and which enables to travel through tunnels with the girder transfer vehicle.
