LYH-WTPM062-1 New Starter kit Water transfer printing equipment /hydrographic machine /hydro dipping tank of DIP & WASH

Supplier: Liquid Image Technologies
Region: Sichuan, China
Contact: Ms Shirley Qin
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Plate Type:	Water transfer print / hydro dipping;	Usage:	Water transfer print / hydro dipping of small parts;
Weight:	80KGS;	Product Name:	DIP & WAHS Water Transfer Printing Machine;
Voltage:	220v / 380v / 110v;	Type:	Other;
manul or automatic:	manual hydro dip/ water transfer print machine;	Feature:	hydro dipping for new starter small items;
Gross Power:	50hz / 60hz;	Certification:	CR;
Place of Origin:	China;	Brand Name:	Liquid Image;
Automatic Grade:	Manaul;	Color & Page:	Multi color patterns;
Supply Ability:	5 Set/Sets per Week;	Packaging Detail:	In hard carton;
After-sales Service Provided:	Engineers available to service machinery overseas;	Size:	L: 1185mm X W:605mm X H:780mm;
Condition:	New;	Port:	shanghai GUANGZHOU CHENGDU YIWU SHENZHEN;
Brand Name:	Liquid Image;	Dimensions(LWH):	L: 1185 X W:605 X H:780mm;
Feature2:	hydro dip and wash in 1 tank;	Water Pump:	Stainless Steel Punp , No Rusting;
materials:	2.5MM stainless steel;	Payment Terms:	T/T,Western Union,paypal;

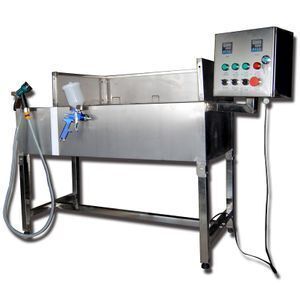

LYH-WTPM062-1 New Starter kit DIP & WASH

Water transfer printing equipment /hydro dipping tank

Certification: CE certification

Size	Outside Size	L: 1185mm X W:605mm X H:780mm
Size	Dipping Area	L: 950mm X W: 540mm X H: 300mm
Material	Stainless Steel	T=2.5mm+-0.2mm
Main Components	Heating Elements	220V, Single Phase, 50 HZ, 400W
	Water Re-circulation System	Pump Power: 220V, Single Phase, 50 HZ, 30W
	Control Panel	1. Master Power On/Off Switch 2. Pump On/Off Switch 3. Heating Element On/Off Switch 4. Digital Thermostat 5. All the red and green lights needed for the switches.
Water Capacity	0.16 Ton
Package	Polywood case
	Net WT	50 KGS
	Gross WT	80 KGS
	Package Size	L: 1250mm X W: 650mm X H: 350mm

Function Introduction:
1. Heating elements: heat water fast to 25-30 degree C ( the most suitable water temperature for hydro dipping)
2. Water re-circulation system: recircle water, flow away remains after dipping, no need to discharge water every time.
3. Control panel: control power, heat elements, water re-circulation system, and pump. Press buttons, machine will works automatically.
4. Washing gun: wash away sticky remains on the products' surface. Washing water is from the tank, reducing water waste.

order Procedure:

1 Please offer the quantity(square meters) of goods and your contact details(address, zip code,

phone number, ect.)

2 We make a proforma invoice (PI) for you, then please check and confirm the PI.

3 Once we confirmed the order, then please make the payment.

4 We need 5-7 days to prepare the goods.

5 Goods sent out, we offer you the tracking number.

6 We track the goods for you until you get them.

The advantages of our tank:
1. The stainless steel of the tank is 2.5mm, so it wouldn't be out of shape after you use it some days later.
2. Good welding to make sure machine won’t leak.
3. Stainless steel pump to keep a long lifespan.
4. Beautiful control panel with black color.
5. Machine is designed by American.
6. We have CE certification and patent, we can send you the no. for checking if you want.

Dipping Process

Sample Shows

Client With Our Team

New starters come to us: you will get all you need (technical training or tips, small pack films, activator, spray gun, dip kit etc.) to start, we will support you to grow big.

Wholesalers come to us: more than 5,000 patterns, Newest design, bulk price,24 hours shipping, 3-7 days fast delivery, 12 hours problem solved, your royalty design, and more benefit are here for you.

After 7 years develop, now our team are working with more than 5,500 clients, and face to face trained more than 200 clients. You are not only get films or machines from us, also technical guidance, new technique trends, new ideas of how to impress your clients.

We are able to support you to start or enlarge your water transfer printing business.
