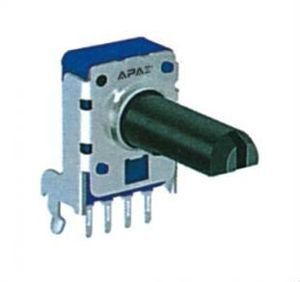

RK1111N 11mm Size Rotary Potentiometer Snap in

Product details
Payment Terms:T/T,Western Union;Dimensions:11mm;
Packaging Detail:Standard export packing Carton size:40*28*22mm 3000pcs/CTN G.W.:9~10KGS/CTN;Brand Name:APAI;
Accuracy Class:IV;Supply Ability:150000 Piece/Pieces per Month;
Measuring Range:500-1M;Port:Foshan;
Model Number:RK1111N;Delivery Detail:3~5days;
Place of Origin:Guangdong China (Mainland);

APAI potentiometer:

11mm Size

A 11mm width potentiometer for audio, visual, electronic musical instruments and various applications.





Various Option for you to chose!

1.Shape of Shaft: F/R/KQ shaft style

2.Length of Shaft:15/20/25/27.5/30/35/37.5mm

3.Taper and Resistance:

A Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

B Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

C Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

Ect.

(Some taper&resistance maybe out of stock, pls comfirm with us before placing order)

4.Kind of Grease: light/comond/heavy handling feeling

5.Unit:Single-unit/Dual-unit

6.Click:with/without center click(center detent)









Items

RV09 Series

RV11Series

RV14Series

Single-unit

Single-unit

Dual-unit

Dual-unit

Total rotational angle

280o±5o

300o±5o

Rotation torque

10 ~80gf.cm

30~200gf.cm

Rotation stopper strength

3kgf.cm

5kgf.cm (Without bushing)
6kgf.cm (With bushing)

6kgf.cm

Push-pull strength

5kgf max.

8kgf max.

Shaft wobble

0.8×L/200mm p-p
max.

0.7×L/20mm p-p max. (Without bushing)
0.7×L/30mm p-p max. (With bushing)





 (Electrical characteristics)

Total resistance

5 ~ 250 KΩ

Total resistance tolerance

±20%

Resistance taper

A,B,C,D,E,K,W

A,B,C,D,E,K,W

A,B,D

A,B,C,D,E,K,W,M,N

Rating power (W)

0.05W

0.05W

Maximum operating
current 1mA.AC

0.05W

Maximum operating voltage

50V AC
20V DC

50V AC
20V DC

30V AV
For AC only

50V AV

For AC only

Slider noise

less than 100mV

Gang error

-

3dB max.
(-40~0dB)

Insulation resistance

100MΩ min
at 250V DC

100MΩ min
at 250V DC

100MΩ min at 250V DC

Voltage proof

1 minute at 250V AC

1 minute at 500V AC

1minute at 300V AC

Rotational life

5,000 cycles

15,000 cycles

10,000 cycles

15,000 cycles
