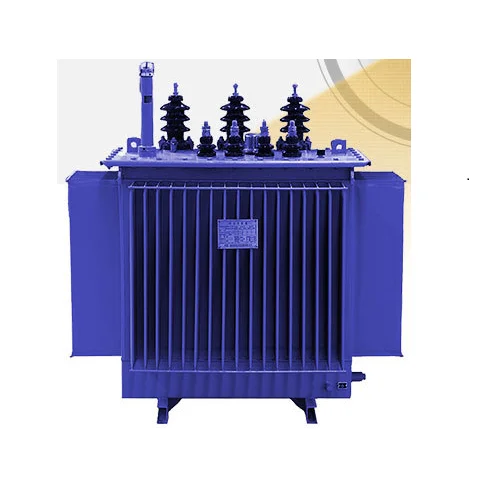

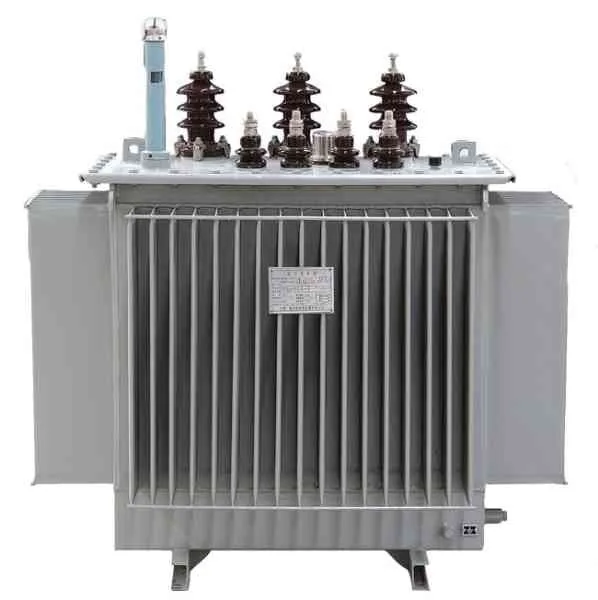

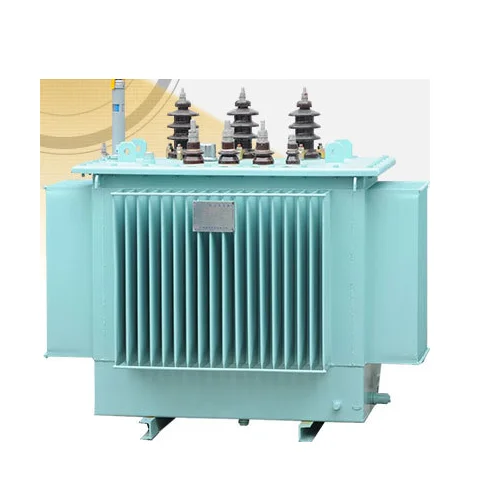

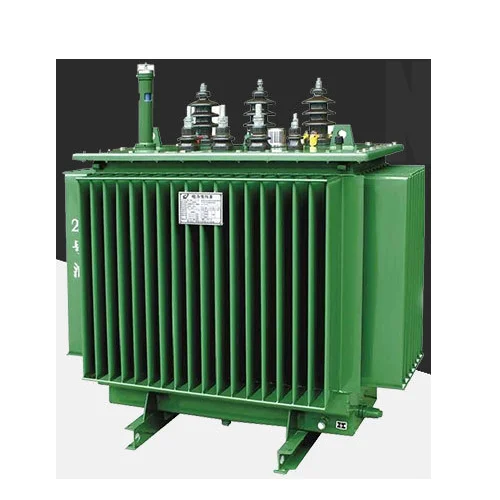

500kva 1000kva 2000kva 5000kva oil immersed transformer

500kva 1000kva 2000kva 5000kva oil immersed transformer

The reel core fully sealed distribution transformer is a new generation of low noise and low loss transformer developed in recent years. Its iron core has no joint, greatly reduces the no-load loss and no-load current, reduces the no-load current by 60%~80%, the high and low coils are continuously coiled on the core column, the winding is tight, the concentricity is good, and the product is enhanced more. Anti-theft performance. The noise decreased by more than 10 decibels. The temperature rise is low 16-20K. Because of the continuous winding of iron core (cross section is pure circle), the orientation loss of silicon steel sheet is fully utilized, and the no-load loss is reduced by 20%~30%.

Compared with S9 transformer, the S11 transformer reduces the no-load loss by about 30%.

The low voltage winding with capacity in the 630~2500kVA enclosure is made of cylinder or spiral structure with high mechanical strength and balanced ampere distribution. The product has good short circuit resistance.

The positioning structure is added to the body so that it does not produce displacement during the transportation process, and all fasteners are equipped with fastener nuts to ensure that the fasteners are not loose during the long run of the product and meet the requirements of the non core lifting.

The corrugated oil tank is adopted in the transformer, and the oil conservator is cancelled, the box cover and the box edge are completely welded or fastened by bolts, thus prolonging the service life of transformer oil.

The product surface is painted, primed and topcoat after degreasing, rust removing and phosphating. It can meet the special requirements of metallurgy, petrochemical system and wet dirty area.

A fully sealed transformer oil tank is used. The pressure release valve, signal thermometer and gas relay are installed according to the standard, so as to ensure the safey operation of the transformer. These series of products have beautiful appearance, small size, and can reduce the installation area. It is an ideal free maintenance quality product.

Q: Is your company the manufacturer or trader?

R: We are a professional and leading manufacturer located in Bengbu city, Anhui province, China.

Q: What is your after-sales service and delivery?

R: We can reply the customers' questions and resolve them within 24 hours everyday and give full technical support in time about our products.The delivery is based on the order quantity, generally we need 30-40days to finish it, and every month can produce 30 CTNs .

Q: What is the quality warranty about your products?

R: About the quality warranty, we have the quality certificates like CCC, ISO9001..etc for our H.V & L.V switchgears & electrical distribution equipment. And we have CE, Rohs, CB, TUV, Kema..for their electrical parts and accessories. Meanwhile,we also can supply 3 years quality guarantee, during that we can supply free repair, maintenance and technical support. Generally the electrical distribution equipment can use for over 30 years.

Q: What is your main market?

R: The main market for us is in mainland of China, meanwhile we have less than half in South America, South-East Asia, Middle East, West-Africa, East-European countries and so on.

Q: Does your company accept ODM and OEM?

R: Yes. Our R & D team owns latest technology, can develop and produce products based on the customers' drawings with their own brand.

 Q: What are your payment terms?

R:
1. Irrevocable L/C at sight for order which amount is more than 1 million US dollars;

2. 30% T/T in advance as deposit, balanced against the shipping documents.

Q: If I want to visit you,how to reach ?

R: Firstly we can send you the invitation card to you for your visa, when you get the visa you can come to Shanghai Pudong International Airport. Our company is located in Bengbu city, Anhui province, China. It takes 2 hours from Shanghai Hongqiao Rainway station to Bengbu South station. When you arrive we can arrange the driver to pick you up at the rainway station.
