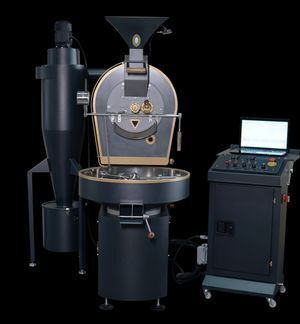

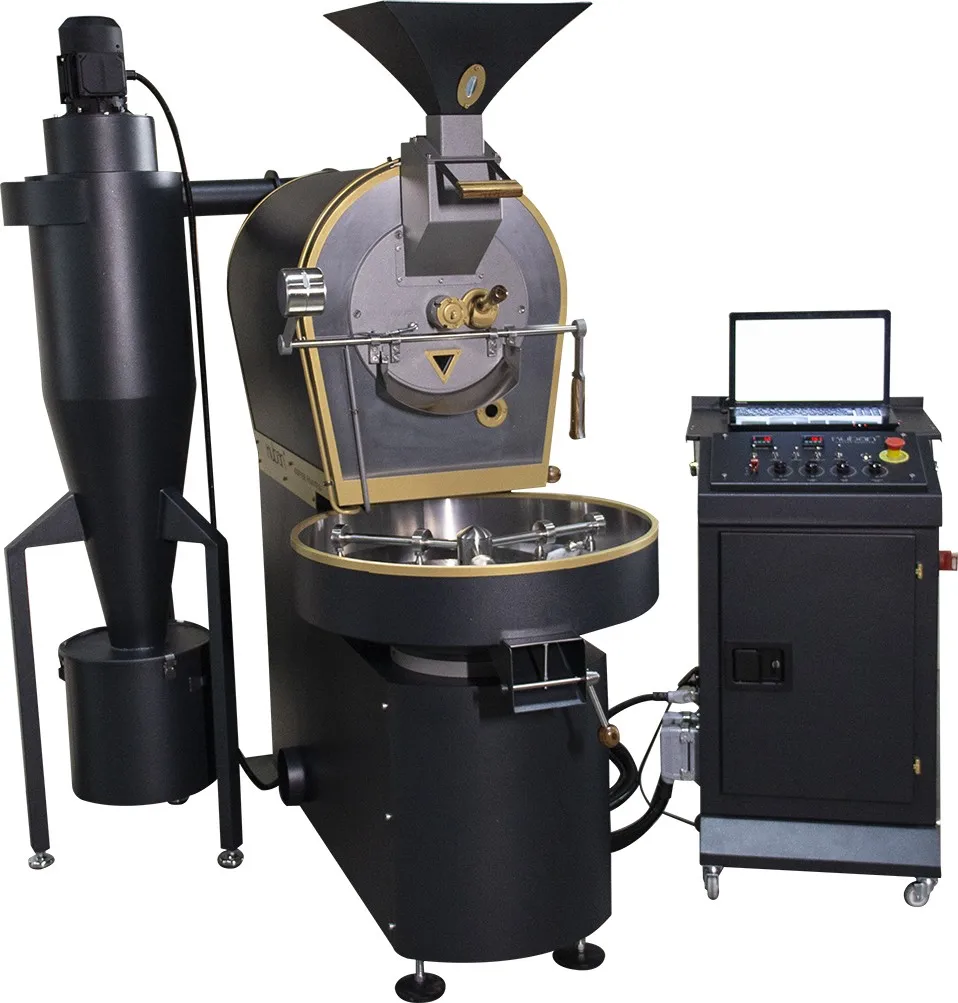

6 KG Coffee Roaster Machine/Coffee Bean Roasters/High Quality Kuban Coffee Roasters

Supplier: KUBAN MAKINA DEKORASYON GIDA INSAAT SANAYI VE TICARET LIMITED SIRKETI
Region: -, Turkey
Contact: Mr. Ozan Ozyesil
Price: $1.09 /piece
Min. Order: 1 piece

Click here to contact

Product details

Machinery Function:	Coffee Roaster;	Frequency:	50 - 60;
Heat Source:	LPG -LNG-Natural Gas-Electric;	Payment Terms:	L/C,T/T;
After-sales Service Provided:	Free spare parts;	Weight:	350 KG;
Number of Motors:	4;	Port:	Turkey;
Batch capacity:	6 KG;	Voltage:	220 - 380;
Place of Origin:	Izmir Turkey;	Packaging Detail:	The product would be in strongbox. Another strong box also contains the other strong box. Thereby, your product would be packed twice. We can make shipment to all around the world. Best Coffee Roaster, 6 KG Coffee Bean Roasting Machine, Coffee Shop Coffee Roaster with 6 KG, Coffee Bean Roasting Machine;
Power Consumption:	2.2 kW/h;	Warranty:	2 years;
Applicable Industries:	Hotels,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Retail,Food Shop,Food & Beverage Shops,coffee shop;	Heating System:	Thermal Transfer;
Raw material:	Coffee Bean;	Voltage:	220-380V / 50-60 Hz;
Power(W):	2.2;	Automation:	PLC;

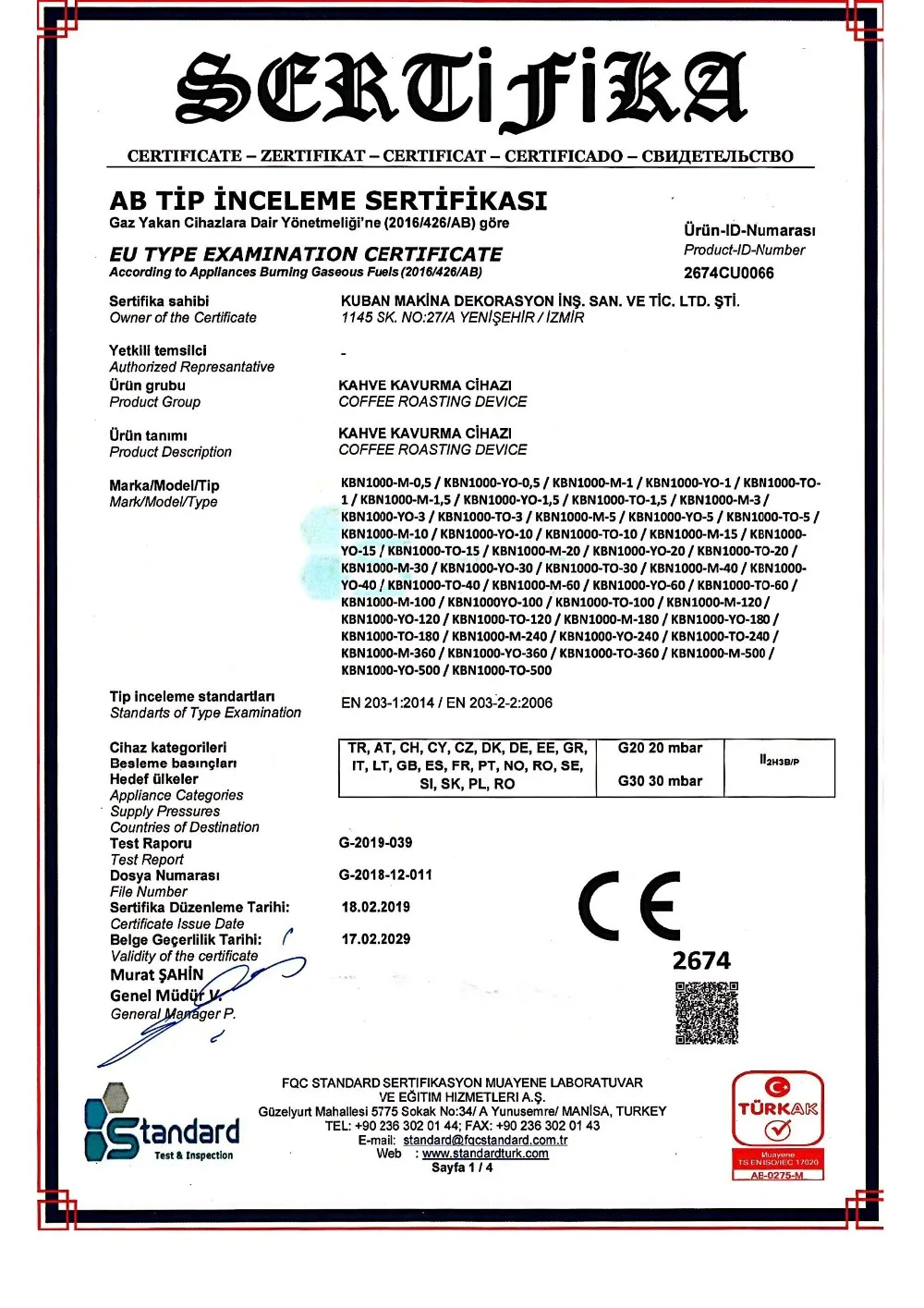

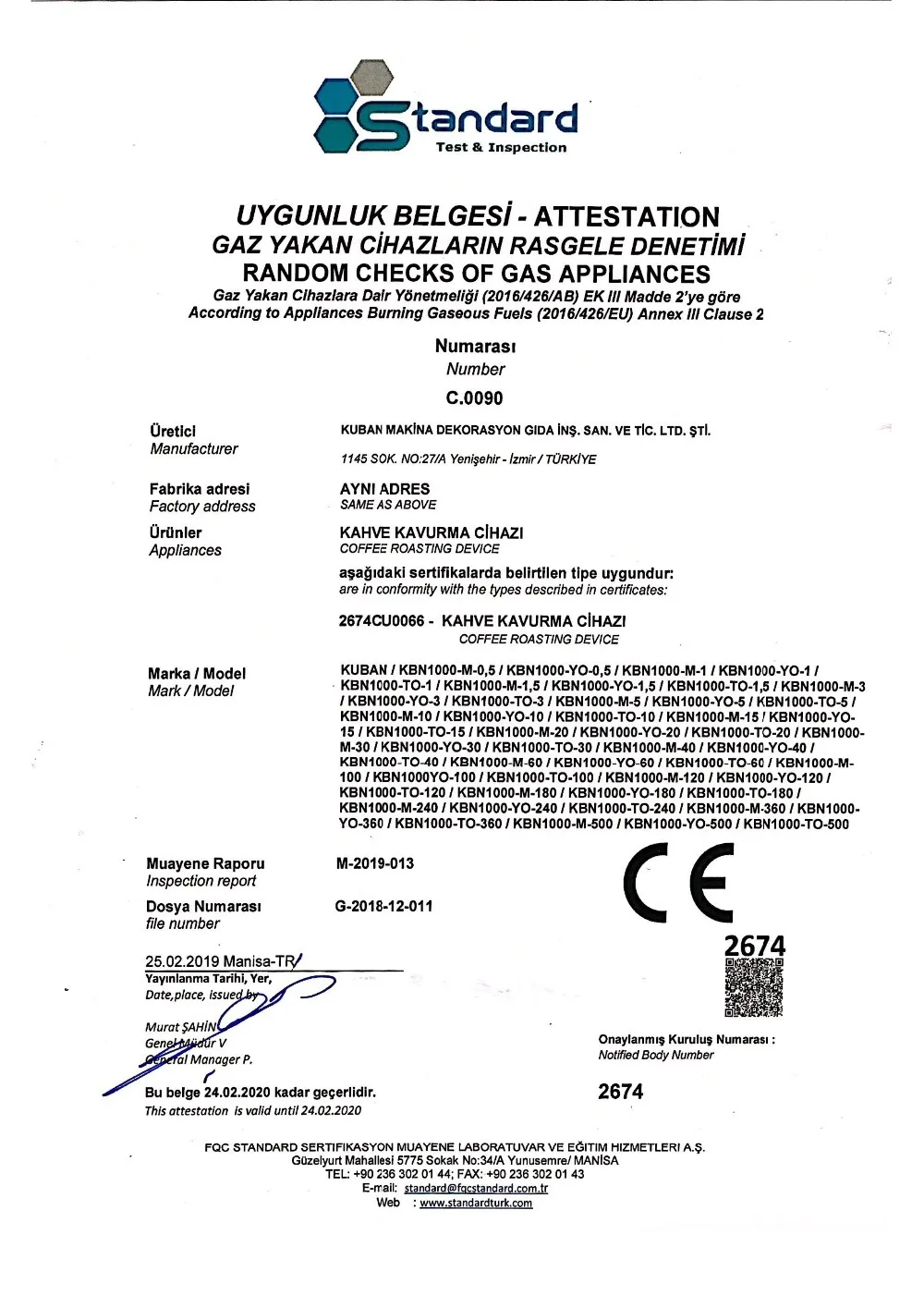

Certification:	CE;	Burner:	Atmospheric - Premix;
Application fields:	Snack food factory,Commercial catering,Meat processing plants,Dairy products factory,Beverage Factory,Seasoning plant,Bakery,Roastery;	Brand Name:	Kuban;
Output product name:	KBN1000YO-6;	Supply Ability:	5 Piece/Pieces per Day;
Dimension(LWH):	195 x 150 x 180 cm;	Weight:	350 KG;

Product Description

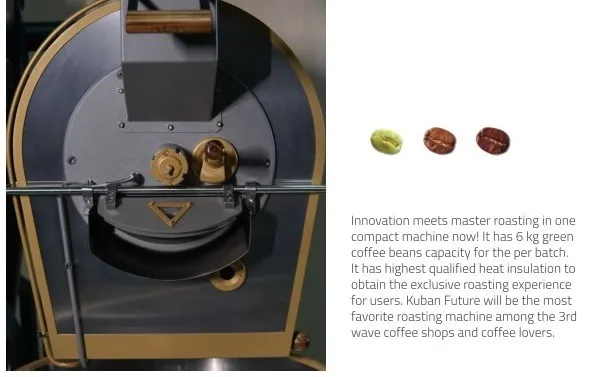

Inovation meets master roasting in one compact machine now!
It has 6 KG green coffee bean capacity for per batch.

It has highest qualified heat insulation to obtain the exclusive roasting experience for users.

Kuban new coffee roaster is the most favorite roasting machine amont

TECHNICAL SPECIFICATIONS
Batch Capacity		6 KG
Dimensions (W - H - D)		150 x 180 x 195 cm
Weight		350 KG
Voltage		110V - 220V - 380V / 50 - 60 Hz
Heat Source		LPG - LNG - Natural Gas - Electric
Heating System		Thermal Transfer
Burner		Atmospheric or Premix
Number of Motors		4 Motos
Power Consumption		2.2 Kw
Automation		PLC System
Control Type		Manual or Automatic

New Features of New Kuban Roaster

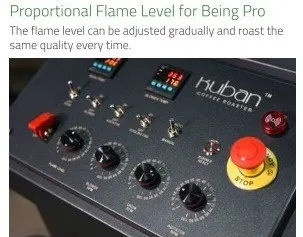

- Proportional flame level for every coffee roasting profile
- Renovated inside blade design to hold beans in the center of the drum (minimizing contact beans to drum wall)
- Homogeneous heat distribution with %55 emptiness drum volume
- Increased air permeability
- Seperated engines for every roasting phase(simultaneously roasting and cooling)
- Increased heat insulation (Heated air efficiency)
- Cast iron drum cover to prevent hot spots
- Fully demountable cooling tray ( Easy maintenance and cleaning)
- Adjustable drum RPM
- Adjustable agitator RPM
- Adjustable blower RPM(air circulation)
- Renovated roasted coffee cooling system
- Cyclone for better suction and chaff collection

Standard Features of Kuban Coffee Roasters

-In case of any varience of gas pressure; automatically shutting off the gas.
-In case of any emergency; shutting of the all system by one button
-Digital temperature control and heat indicator.
-Due to peep hole; roasted coffee beans can be controlled by inspection.
-Roasted coffee beans can be checked thanks to sample taker spoon.
-Cooler tray: cooling by powerful fan and rotating system in chamber.
-Audio alarm system is automatically activated when temperature reachs to adjusted level.
-Gas breaker system leads to safety and cost saving
-Advance heat insulation helps with energy conservation
-Easy to operate and quite running engines.

Optional Features

- Afterburner
- Destoner
- Loader
- Remote Control Roasting Software

Detailed Images

Homogenious Heat Distribution with %55 Emptiness Drum Volume

New drum design increases conventional heating by minimizing contact of beans with the drum.

Rear side of the drum completely is perforated; air suction power and circulation is increased to help inner and outer roasting degrees to the same level. Gas as a result of combustion is discharged from system quickly.
