Hot sale! VMC850 china competitive price large cnc vertical machining center

Supplier: Shandong Pulute Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Mr Cindy C
Price: $8500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Standard exporting wooden package china competitive price large cnc vertical machining center;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Voltage:	380V;	Brand Name:	PULUTE;
spindle nose to table surface:	105-655 mm;	Spindle taper:	BT40;
Weight:	6T;	Positioning precision:	±0.008/±0.006/±0.006 mm;
Dimension(LWH):	278024502700;	Warranty:	ONE YEAR;
Place of Origin:	Shandong China;	table size:	1050x500mm;
X/Y/Z axis repeatability:	±0.004/±0.004/±0.004 mm;	Supply Ability:	200 Set/Sets per Month;
Max spindle speed:	8000 rpm;	Certification:	CE ISO9001 ISO14001;
Main motor power:	11KW;	Cutting feed speed:	8 m/min;
After-sales Service Provided:	Overseas third-party support available;	Power(W):	11KW;
Port:	Qingdao, Shanghai,Ningbo;	Condition:	New;
Overall Dimension:	278024502700 mm;	Delivery Detail:	25 working days china competitive price large cnc vertical mach;
Type:	Vertical;	max. table loading:	600kg;
Model Number:	VMC850;

china competitive price large cnc vertical machining center

1. VMC850 china competitive price large cnc vertical machining center specification

china competitive price large cnc vertical machining center	VMC850
Capacity
table size	1050x500mm
Max. table load	600kg
T slot qty-width*distance	5-18x90
Spindle
spindle speed	8000 rpm
spindle nose to table surface	105-655mm
Spindle center to Column surface	550mm
Spindle taper	BT40
Main motor power	7.5/11kw
Three-axis servo motor power	2.0/2.0/2.0kw
box way
X axis travel	800mm
Y axis travel	500mm
Z axis travel	550mm
X/Y/Z axis rapid feed	15/15/12m/min
Cutting feed speed	8m/min
Automatic tool changer

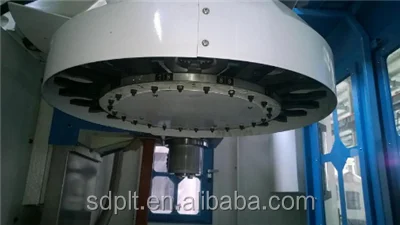

Tool changer type	drum/ hat type (arm type optional )
Max. tool length	350mm
Max. Tool diameter	φ100(adjacent tool)/φ150(not adjacent tool)
Max.tool weight	8kg
Tool changing time(tool-to-tool)	1.8sec
Accuracy
Positioning accuracy	±0.008/±0.006/±0.006mm
X/Y/Z axis repeatability	±0.004/±0.004/±0.004 mm
Net Weight	5000 kg
Overall Dimension	2780×2450×2700

2. VMC850 china competitive price large cnc vertical machining center standard accessories

High quality boned/coated sand casting

Taiwan Royal,Taiwan POSA,Taiwan KENTURN

Taiwan HIWIN ball screw and precision locking nut C3 standard

Pressure cylinder

XYZ axis stainless protecting cover for guide way

Domestic brand electric lubrication system including lubrication pump

Domestic brand water coolant system

Domestic brand air coolant pipe and cable

Electric cabinet heat ex-changer

3.VMC850 china competitive price large cnc vertical machining center optional accessories

24 pcs arm type tool magazine

Z axis height increases 100mm

box way changing into linear guide way

Spindle speed 12000 rpm,

Spindle speed 10000 rpm,

Oil coolant

Water-cooled spindle

Higher pressure Taiwan water pump

BT50 spindle

Chain type chip conveyor,

universal chain type chip conveyor ,

oil water separator

125 standard 4th axis

Yantai brand dividing / indexing function 4th axis, 125 standard 200standard, 250standard

Taiwan Xvyang brand dividing/indexing function 4th axis, 125 standard , 200standard, 250standard

4.Vertical machine center warranty

1. engineers are available to do oversea machinery service. In some countries, we have oversea

agent doing after-sale service in time and professionally.

2.24 hours heart to heart service on-line or mobile.

3. training in our factory and on-line are free of cost.

4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered

with machine for customer convenience.

5.We offer best agent price and distributer price.

5.Customer and delivery

accept ODM, OEM,

accept FOB, CFR, CIF, EXW price,

T/T 30% as deposit and the balance before machine tools leave our factory.

normal products with standard configuration manufacturing time is 7-15 working days.

Should learn more about our products, please feel free to click the following send.
