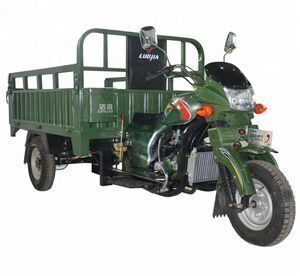

250cc Three Wheel Motorcycle Cargo Tricycle

Supplier: Luoyang Northern Enterprises Group Co., Ltd.
Region: Henan, China
Contact: Ms Trista He
Price: $800.00 / >=12 sets
Min. Order: 12 sets

Click here to contact

Product details

Port:	QINGDAO;	Place of Origin:	Henan China;
Displacement:	201 - 250cc;	Body Type:	Open;
Delivery Detail:	30 working days;	Model Number:	LJ250ZH;
Use For:	Cargo;	Size:	3680X1350X1580mm;
Supply Ability:	500 Unit/Units per Week;	Certification:	CCC;
Packaging Detail:	CKD packing;	Payment Terms:	L/C,T/T;
Driving Type:	Motorized;	Brand Name:	LUOJIA;

General Features

Reverse gear device, easily used in the transport tricycle
Front and rear disk brake, more effective and safe tricycle
Shaft drive transmission improve the efficient power transfer
2.5mm thickness steel plate for rear compartment
8 pcs steel plate as supporting suspension
Patented hydraulic device in the self discharging
Special truck used suspension rear axle, enhance loading capability
Wide double seat and agricultural tyres, convenient for farm use
Forced air-cooled engine, speedily heat dissipation, strong output power
Between the frame and engine, use mechanical spring suspension system
Automobile beam steel and used in the frame, total integrated frame have big carrying capacity

Specification

1. Engine: 250cc, Single cylinder, air-cooled, 4-stroke

2. Suspension: Φ43 front shock absorber

3. Cargo carrier: 1350*2000MM flat steel plate cargo box

4. Max power:8.5kW/8000(r/min)

5. Max torque:11.0Nm/5500rpm

6. Starting mode: Electric & kick

7. Gearshift type: 5-gear front and 1 gear reverse

8. Transmission type: shaft drive

9. Max speed: 70km/h

10. Front wheel : 5.00-12

11. Rear wheel: 5.00-12
