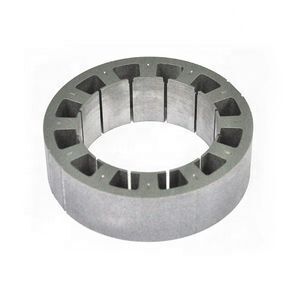

120mm custom brushless dc motor winding stator and rotor assembly with rotor shaft

Product details
Inner diameter of Stator:80mm;Brand Name:Volcano Electric;
Multi strands:1pp, 2pp, 4pp;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Speed:500~5000RPM;Port:Ningbo;
Poles:8 poles or 10 poles;Supply Ability:20000 Piece/Pieces per Month;
Certification:CE,UL,ROHS;Number of slots:12;
Place of Origin:Zhejiang China;Standard:IEC or Custom;
Tooth width:10mm;Power:375W~2000W;
Outer diameter of Stator:119mm;Model Number:VOL-WSRS120;
Product Display



Type

VOL-WSRS120

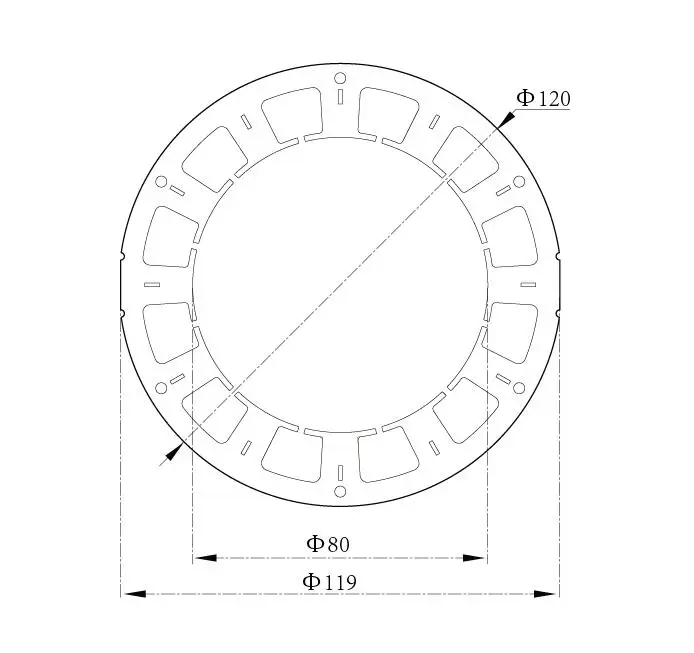

Outer diameter of stator

119mm

Inner diameter of stator

80mm

Tooth width

10mm

Number of slots

12

Poles

8 poles or 10 poles

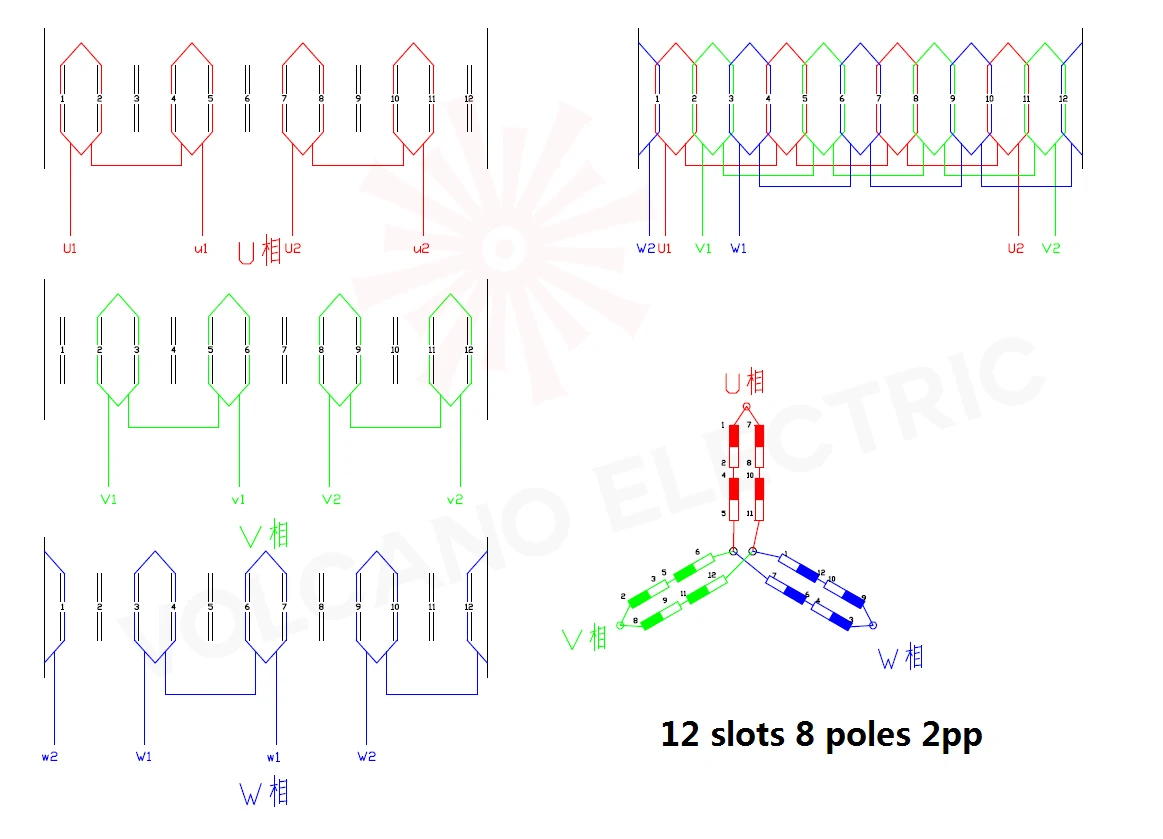

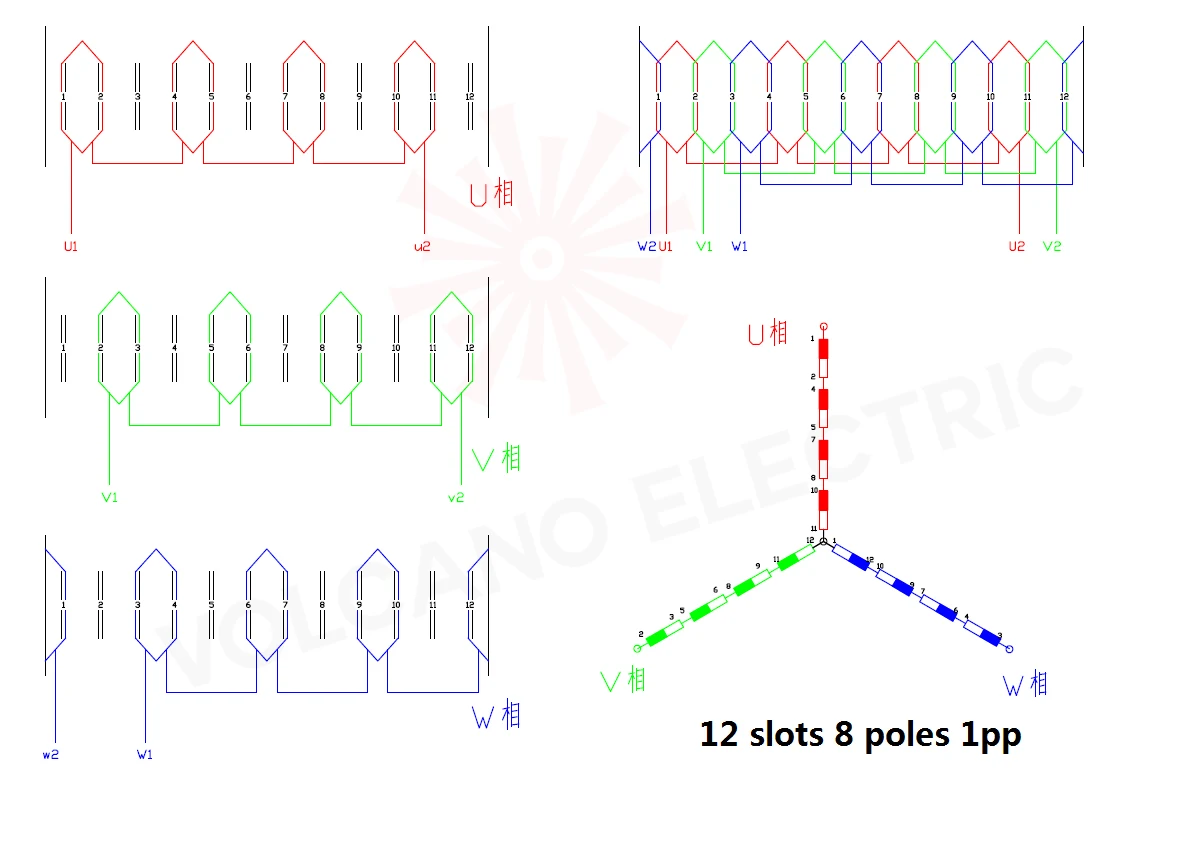

Multi-strands

1pp or 2pp or 4pp

Power

375W ~ 2000W

Speed

500~5000RPM



+
TypeOuter diameter of statorInner diameter of statorTooth widthNumber of slotsPolesMulti-strandsPowerSpeed
mmmmmmppwrpm
VOL-WSRS1201198010128 or 101 or 2 or 4375-2000500-5000
VOL-WSRS250215.2136.2161812 or 24 or 361 or 2 or 62000-60000500-5000
VOL-WSRS220200120.119128 or 101 or 2 or 42000-30000500-5000
VOL-WSRS180167.211015128 or 101 or 2 or 41000-15000500-5000
VOL-WSRS130 M1228012.5128 or 101 or 2 or 4375-3000500-5000
VOL-WSRS130 S1228011.5128 or 101 or 2 or 4375-3000500-5000
VOL-WSRS1009044.66.5128 or 101 or 2 or 4375-2000500-6000
VOL-WSRS80 9S76.444.67.2961 or 3200-1000500-6000
VOL-WSRS80 12S7740.57.2128 or 101 or 2 or 4200-1000500-5000
VOL-WSRS-60 9S56.129.76961 or 3150-600500-6000
VOL-WSRS-60 12S57.830.55.5128 or 101 or 2 or 4150-600500-5000
