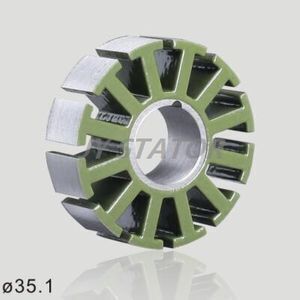

BLDC Motor stator stamping for Drones and RC UAV BLDC Motors

Product details
Temperature Class:H Class;Height:Customized;
OD:Customized;Type:Laminated Cores;
Port:Shenzhen or Guangzhou;Supply Ability:20000 Piece/Pieces per Day;
Place of Origin:China;Material:0.2mm--20JNEH1200;
Slots No.:Customized;Payment Terms:L/C,D/A,T/T,Western Union;
ID:Customized;Packaging Detail:VCI Paper to against rust during transportation;
Model Number:JY-001;Brand Name:YITIE;
Delivery Detail:7 Days;Coating:0.25-0.35mm;
Product Description

 We are ISO9001, ISO14001, TS16949 Certificated stator core manufacturer to provide high quality and high performance BLDC stator core products.

Product Detail:

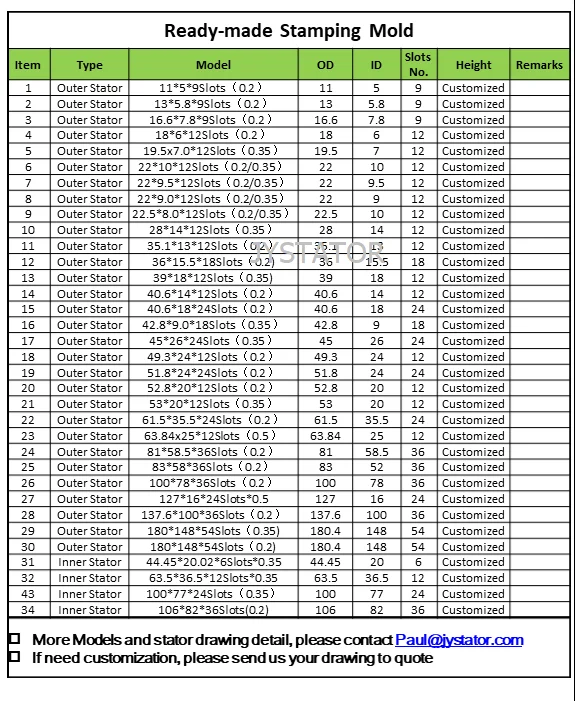

Ready-Made Stamping Mold: If this models can be used by your project and products,you do not need to pay stamping mold to save your cost and it is much benefit especially for prototype sample stages

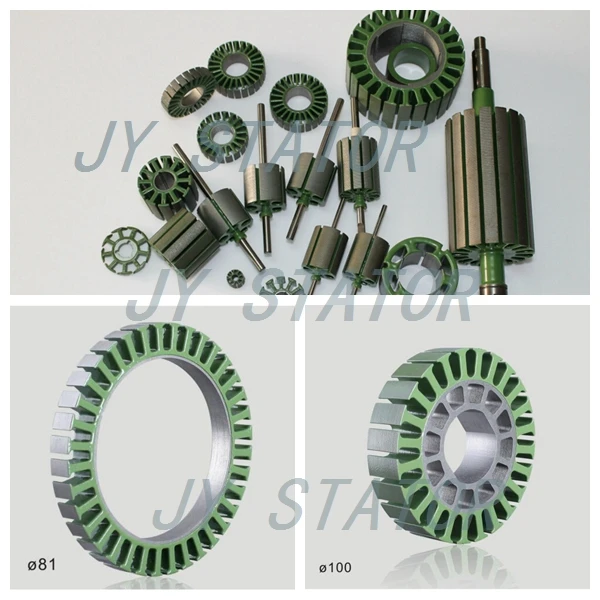

Customs BLDC Motor stator stacks: please send us your technical drawing to get quotation for your customs stators

Specification:

Silicon steel thickness:0.1mm/0.15mm/ 0.2mm/0.35mm/0.5mm

Stator thickness: 2-200mm (can be customized)

Stator Outer Diameter: 8-300mm (can be customized)

Stator Inner Diameter: 2-300mm (can be customized)

Epoxy Coating color: Green/blue

Coating temperatue Class: B,F,H Class

Mold Type: Progressive stamping for stator rotor, single mold for stator rotor

Technology: Interlock self-rivet point, Welding, Loose lamination, bonding;

More details for us is: www#.jystator.#com (delete #)

Material in storage and common use, more material can be assigned by customer:

Stamping & Lamination

Stator Insulation Powder Coating

Thickness

Silicon steel model





0.1mm

ST-100(Japan)

F Class(155 ℃)

3M266/3M860

0.15mm

ST-150(Japan)

H Class (180 ℃)

3M260/3M555

0.2mm

20JNEH1200/1500(Japan)





0.35mm

35JNE230/250(Japan)





0.5mm

B50A470/50WW600 (China)





Our Services

Our services:

u  High Quality Customs Stator core stamping and lamination with 0.1mm, 0.15mm, 0.2mm, 0.35mm and 0.5mm;

u  Stable Motor stator core epoxy insulation powder coating(electrostatic powder coating). B, F, H Temperature Class

u  Stator core stamping mold Design and manufacturing

u  Stator coil winding services: Manual winding for prototype samples and machine winding for production;

u  Electrical car Busbar stamping and insulation coating

Our advantage:

u More than 50 set of ready-made punching mold for selection to save your cost during your prototype sample stage and meet the needs of customer who needs small qty. order

u 20 years of manufacturing experience in the motor field;

u Multiple kinds of punching die machine and testing equipment;

u ISO9001:2016, ISO 14001:2016, TS16949:2015 Quality certificated;

u Complete quality control system;

u"Loose Lamination"  Our Stator stack core has the best performance since lamination can be without any wielding and riveting point

Application:

u  High Performance Brushless DC (BLDC) Motor;

u  Servo motor;

u  Various Electric motor;

u  High speed slotless motors

u  Drones, UAV and RC model motors;

u  High accuracy automatic equipment;

u  RC cars motors, RC boats motors, electrical bicycle motors.

Company Information



Your Perfect Partner for  High Performance Brushless Motor Stators!

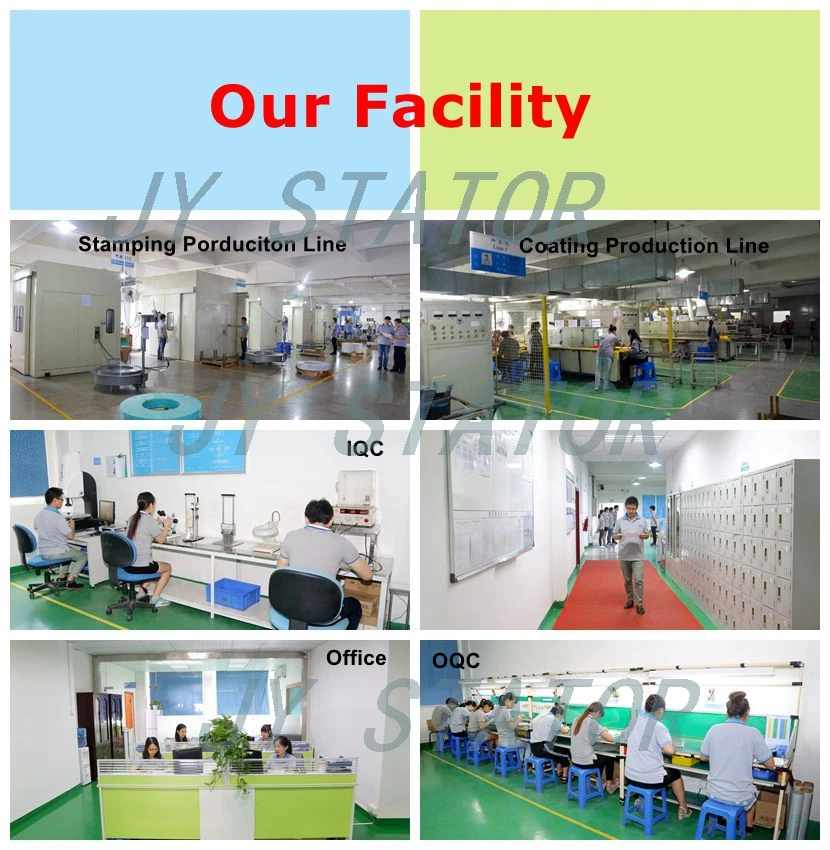

     Shenzhen Jiaye Industrial Equipment Co. Ltd. is founded in 2008,  located in Tang Xia Town, Dongguan City.Factory floor area is about 9000 square meters, the building area is about 7000 square meters.

    As qualified supplier of high performance electric motor laminations and stamping, stator electrostatic epoxy insulation powder coating and motor coil winding, electrical car busbar stamping and coating we are certificated with ISO9001:2015, ISO14001:2015 and TS16949:2016 to meet customer quality needs.

    We are the exclusive cooperation partner of the National Institute of Iron Core Research, we are the specified processing partner by famous enterprise at home and abroad, also we are the professional production cooperation partner in high-tech aviation field.

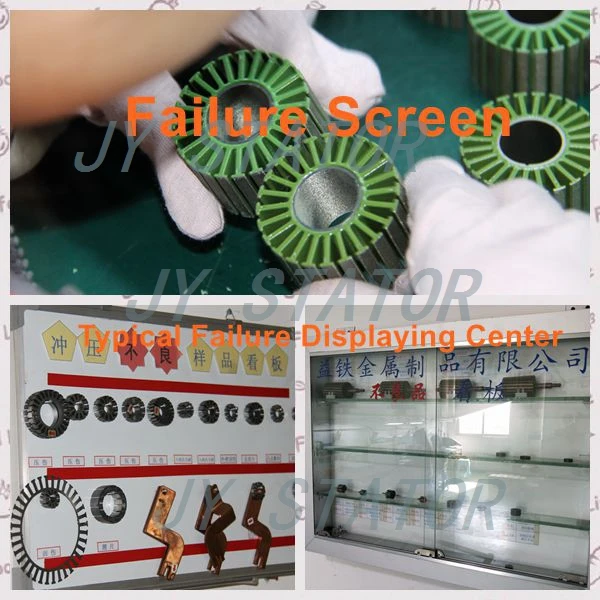

Quality Control



Certifications



Packaging & Shipping





Contact Us

FAQ

Q1: What is the lead time of stators lamination and epoxy powder coating?

A1: : Normally the lead time of stator core is Within 7 Days, wire cutting samples 12 Days, Stamping mold design and manufacturing lead time 45 days

Q2: How to customize stators?

A2: Send us your stator stack drawing and we will do engineering evaluaiton, after that we quote to start the manufacturing.

Q3: How JIAYE control the quality?

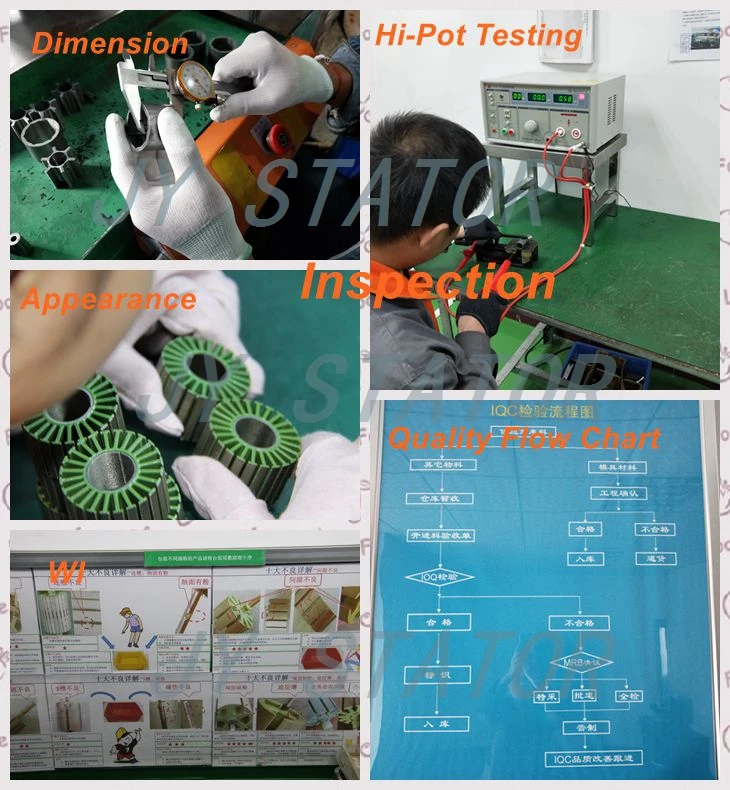

A3: We are ISO9001, 14001, TS16949 Certificated manufacturer with whole quality control flow chart and system. all products will be 100% inspection for apperance and typical random inspection for dimension

Q4: Why we select JIAYE as stator manufacturing partner? how you convince us?

A4: What we provide is not only the stators, but the commitment behind the cash. We have our technology to produce high-quality and high performance stators with reasonable prices which are difficult to be provided by other suppliers. if you are seeking for high quality manufacturers with long term partnership, then we will be your best choice.

Q5: What kind of coating color can you provide:

 A5: Normally the color is Blue or Green, also we can produce black, R.ed, White color
