Top Quality Insulated Cord End Terminal Copper Wire bootless Terminal lug
-
Supplier: Yueqing Hoored Electric Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Cinderella Lee -
Price: $0.16 / >=500 bags -
Min. Order: 500 bags
| Type: | Crimp Terminal; | Model Number: | E0508; |
| Plating: | Electro Tin Plated; | Packaging Detail: | Standard Export to 3 Layer corrugate,then put into pallet; |
| Port: | Ningbo; | Product name: | Insulated Cord end terminal; |
| Insulation Material: | PVC Insulated Pin Terminals; | ctn size: | 61*42*20cm; |
| Supply Ability: | 200 Carton/Cartons per Day copper insuated bootless terminal lug; | Certificate: | CE ROHS SGS; |
| Color: | Red White; | Brand Name: | Hoored; |
| Terminal Material: | copper; | Packing: | 100pcs/bag or 1000pcs/bag; |
| Payment Terms: | L/C,D/P,T/T,Western Union,MoneyGram; | Place of Origin: | Zhejiang China (Mainland); |
Factory High Quality Insulated Cord End Terminlal Copper E0508 crimp terminal Factory High Quality Insulated Cord End Terminlal Copper E0508 crimp terminal
Product Description

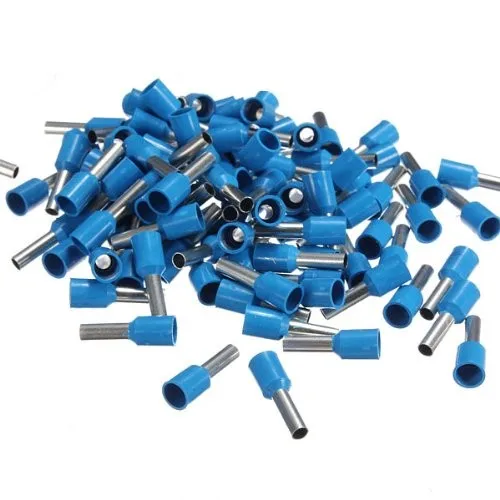

Factory High Quality Insulated Cord End Terminlal Copper E0508 crimp terminal
Factory High Quality Insulated Cord End Terminlal Copper E0508 crimp terminal

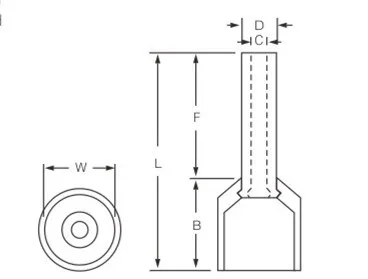

| ITEM NO | Dimension (mm) | Cable Size (mm²) | Insulating tuble color (1)German (2)French | |||||
| F | L | W | D | C | A.W.G | |||
| E0506 | 6.0 | 12.0 | 2.6 | 1.3 | 1.0 | #22 | 0.5 | (1)orange (2)white |
| E0508 | 8.0 | 14.0 | ||||||
| E0510 | 10.0 | 16.0 | ||||||
| E0512 | 12.0 | 18.0 | ||||||
| E7506 | 6.0 | 12.4 | 2.8 | 1.6 | 1.3 | #20 | 0.75 | (1)white (2)bule |
| E7508 | 8.0 | 14.6 | ||||||
| E7510 | 10.0 | 16.4 | ||||||
| E7512 | 12.0 | 18.4 | ||||||
| E1006 | 6.0 | 12.4 | 3.0 | 1.8 | 1.5 | #18 | 1.0 | (1)yellow (2)red |
| E1008 | 8.0 | 14.6 | ||||||
| E1010 | 10.0 | 16.4 | ||||||
| E1012 | 12.0 | 18.4 | ||||||
| E1508 | 8.0 | 14.6 | 3.5 | 2.1 | 1.8 | #16 | 1.5 | (1)red (2)black |
| E1510 | 10.0 | 16.4 | ||||||
| E1512 | 12.0 | 18.4 | ||||||
| E1518 | 18.0 | 24.4 | ||||||
| E2508 | 8.0 | 15.2 | 4.0 | 2.6 | 2.3 | #14 | 2.5 | (1)blue (2)gray |
| E2510 | 10.0 | 17.2 | ||||||
| E2512 | 12.0 | 19.2 | ||||||
| E2518 | 18.0 | 25.2 | ||||||
| E4009 | 9.0 | 16.5 | 4.4 | 3.2 | 2.8 | #12 | 4.0 | (1)gray (2)orange |
| E4012 | 12.0 | 19.5 | ||||||
| E4018 | 18.0 | 25.5 | ||||||
| E6010 | 10.0 | 18.0 | 6.3 | 3.9 | 3.5 | #10 | 6.0 | (1)black (2)green |
| E6012 | 12.0 | 20.0 | ||||||
| E6018 | 18.0 | 26.0 | ||||||
| E10-12 | 12.0 | 21.5 | 7.6 | 4.9 | 4.5 | #7 | 10.0 | (1)milk (2)brown |
| E10-18 | 18.0 | 27.5 | ||||||
| E16-12 | 12.0 | 22.2 | 8.8 | 6.2 | 5.8 | #5 | 16.0 | (1)green (2)milk |
| E16-18 | 18.0 | 28.2 | ||||||
| E25-16 | 16.0 | 29.0 | 11.2 | 7.9 | 7.5 | #4 | 25.0 | (1)brown (2)black |
| E25-22 | 22.0 | 35.0 | ||||||
| E35-16 | 16.0 | 30.0 | 12.7 | 8.7 | 8.3 | #2 | 35.0 | gray |
| E35-25 | 25.0 | 39.0 | ||||||
| E50-20 | 20.0 | 36.0 | 15.3 | 10.9 | 10.3 | #1 | 50.0 | olive |
Factory High Quality Insulated Cord End Terminlal Copper E0508 crimp terminal
Product Show
Packing
Factory High Quality Insulated Cord End Terminlal Copper E0508 crimp terminal
Shipping
If small quantity, usually send by courier (DHL,FEDEX,TNT and so on) . If big quantity, we advice ship by air or by sea. this will use longer time ,but cheaper fees. We are near NINGBO and SHANGHAI port.

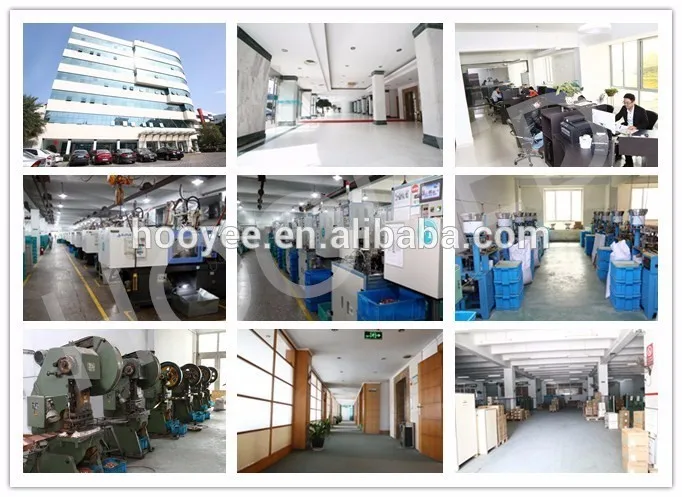

Company Information
YUEQING HOOYEE ELECTRIC CO.,LTD. is a professional manufacturer of cable accessories ( Cable Tie, Cable Gland, Insulated Terminal, Cable Lug and so on). With a wide range, good quality, reasonable prices and stylish designs Our company provides the high-quality matched products and excellent services for various industries, such as electricity, communications, machinery, construction, petroleum, chemical, aviation, transportation, railway transportation, automobile manufacturing, household appliances, electrical installations etc.
Our company is committed to provide electrical products with the quality of "Safe, Reliable, Suitable and Steady", observes the commitment of "Leader in science and technology, Honest operation, Quality and Customer first", provides highest quality and the most sincere services for the new and old, domestic and foreign customers.
Certifications
Related Products
FAQ
1.Which shipping method do you provide?
Ans:Normally, if the quantity is few, the goods will be sent by express when the payment is clear.
Also,we can transprort the goods by air or by sea,just according to you.
2.How can we get the samples?
Ans: We offer free samples by express, but you need pay the express charge.
3.Which express do we accept?
Ans: We accept DHL,Fedex,TNT ,Aramex,China Post Air Mailand forwarder...
4.How about the price?
Ans: Our company is manufacturer and have a competitive price.
5.How about the quality?
Ans:High quality,high cost-performance.
6. If I order a large quantity, what time do you deliver?
Ans: We will as far as possible to speed up production.
Please let me know if you have any questions,thank you!!
Whatsapp/Wechat: 0086-15036017351
Skype: Irene qin720
QQ: 3353226924
