Certification: | CE; | Selling Units: | Single item; |
delivery: | 7-10days after the deposit usually; | Weight: | 100kg; |
original place: | Guangdong.China; | Power(W): | 20K; |
Automatic Grade: | Automatic; | min order: | 1 set,we can provide you a discount if the number gets large; |
Voltage: | 110V/220V/380V/Customize; | Single gross weight: | 60 KG; |
Package Preview: | https://sc02.alicdn.com/kf/H4ce096843f2149a6b7b13fbd6552eb91x.jpg_640x640.jpg; | Single package size: | 12X6X12 cm; |
service: | perfect service for every customer all the time; | After-sales Service Provided: | Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service; |
Dimension(L*W*H): | Customize; | model: | CH-100S; |
Max Sewing Thickness: | Customize; | brand: | CHENGHAO; |
Place of Origin: | Guangdong China; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; |
customize: | accept; | certification: | CE,ISO9001; |
Package Type: | Ultrasonic Lace Sewing Machine; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Condition: | New; | Brand Name: | CHENGHAO; |

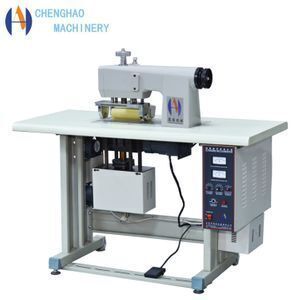

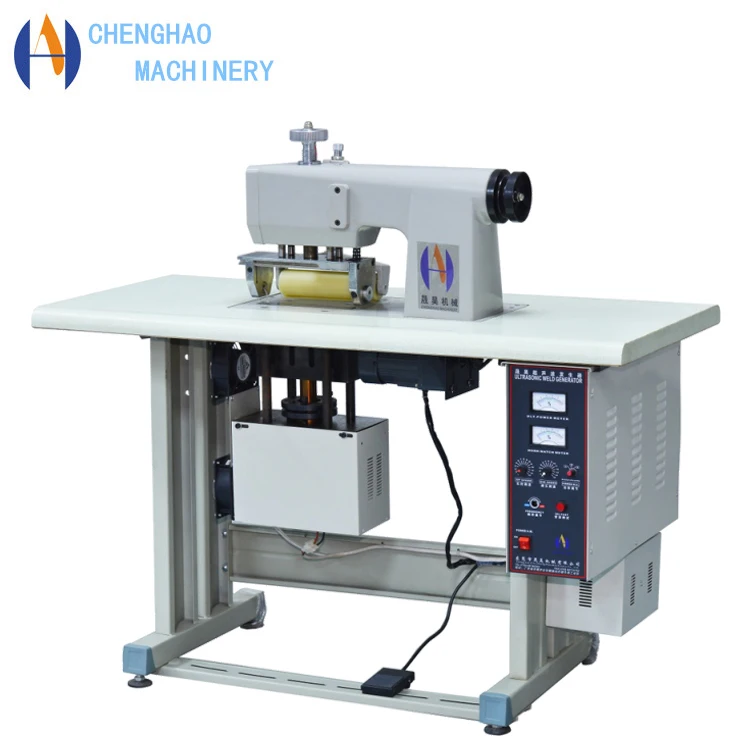

product name: | High Quality Ultrasonic Lace Sewing Machine; | Warranty: | 2 Year; |
Parameter:
model | CH-65S | CH-100 | CH-200 | CH-280 |
voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
frequency | 20KHz | 15KHz | 15KHz | 15KHz |
output power | 1200w | 1500w | 2600w | 15KHz 2600w |
working speed | 0-16m/min | 0-16m/min | 0-12m/min | 0-12m/min |
the model | 50-65mm | 100mm | 180-200mm | 280mm |
Lace width | 50-65mm | 100mm | 180-200mm | 280mm |
A.Characteristics:
1. Horn fixed suspension structure;
2. Double-motors speed adjustment system;
3. Pneumatic roller lifting system;

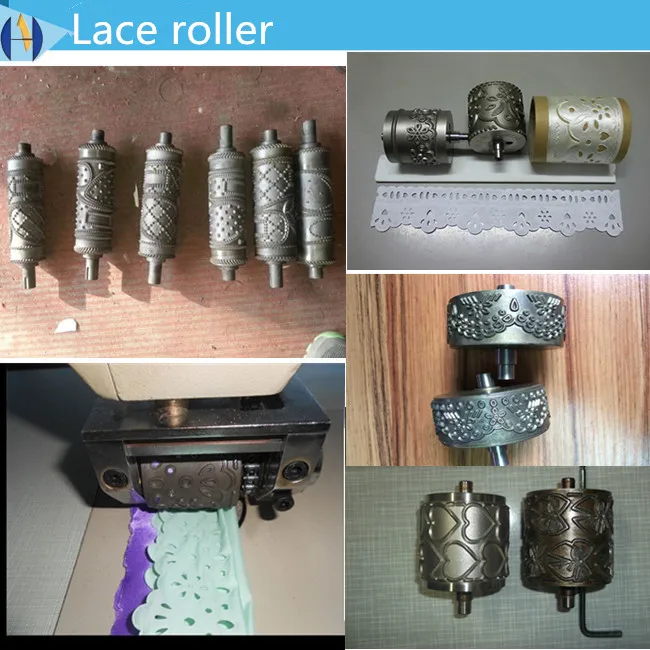

4. Variety of roller patterns, other roller designs available according to customer requirements;
5. Four times faster than sewing machines, minimal operator training required.
B.Functions:
1. Trimming: Straight or curvilinear edge cutting and edge treatment for melting,so smooth, no rough edges;
2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;
3. Hole making: Cut out the various patterns of holes, and treatment of side melting;
4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;
5. Forming: Simultaneous cutting,sealing and embossing to make production in one time.
C.Suitable material:
All kinds of artificial leather and fabric, nonwoven fabric, spun-bonded cotton, thermoplastic film, chemical plastic piece. such as nylon, polyster, PVC,PC, PU,TPU, PE, PP, PS, etc.
D.Application:
Apply to lace clothing, ribbon,trim,Filter, Lacing and quilting,decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric bags and so on.
