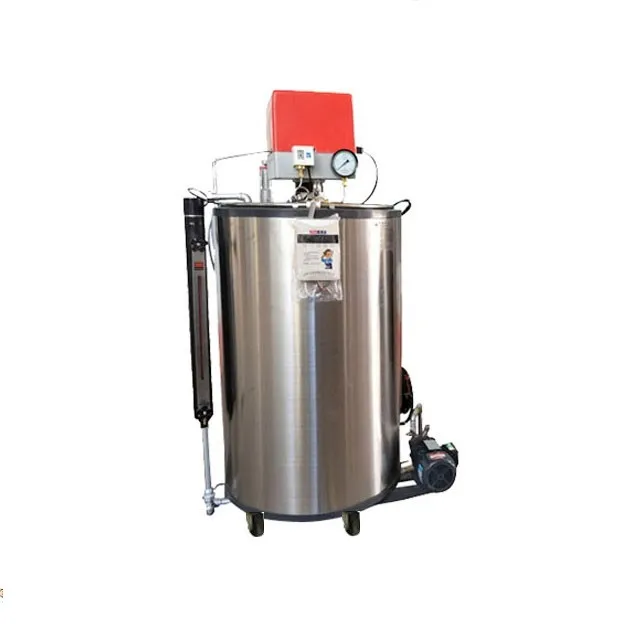

Automatic LPG Steam Generator for Brewery

Product details
Single gross weight:400 KG;Weight:400kg;
Structure:Water Tube;Certification:ISO9001:2015, CE;
After-sales Service Provided:Engineers available to service machinery overseas;Single package size:95X81X154 cm;
Type:Once Through;Pressure:High Pressure;
Showroom Location:Philippines,Australia;Fuel:Gas-fired;
Key Selling Points:dry & stable steam;Customers in Europe:Germany, Holland, Georgia, Hungary, Estonia,Lithuania, Spain;
Place of Origin:Shanghai China;Package Preview:https://sc01.alicdn.com/kf/H3a98ca4477be47c68f1079885773e4bdE.jpg_640x640.jpg;
Condition:New;Customers in America:Mexico,Nicaragua,Peru,Paraguay,Argentina,Chile;

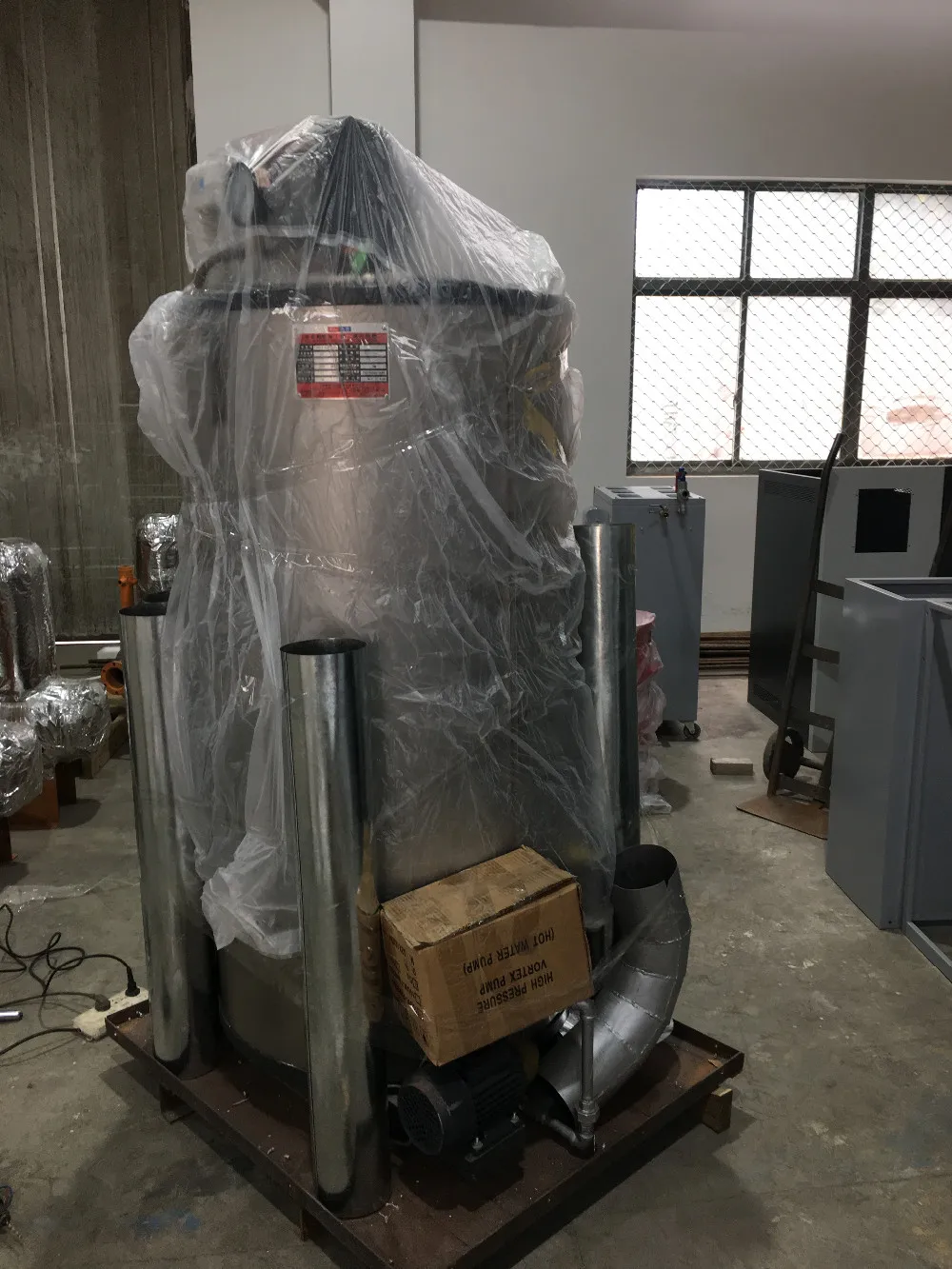

Package Type:Plywood case with steel pallet;Usage:Industrial;
Style:Vertical;Type:steam generator for brewery;
Output:Steam;Customers in Asia:Philippines,Singapore,Malaysia,Indonesia,Mongolia,Lebanon;
Brand Name:T-Sun;Applicable Industries:Hotels,Food & Beverage Factory,Farms,Restaurant;
Dimension(L*W*H):95*81*154;Warranty:2 years;
Condition:New;Customer in Oceania:Australia;
Local Service Location:Philippines,Malaysia,Australia;Customers in Africa:South Africa,Congo Brazzaville, Nigeria, Botswana, Swaziland;
Selling Units:Single item;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;





Company Information

Wanna see our factory in Shanghai?

Google/ Youtube / Facebook / LinkedIn / Twitter "Lixia Boiler Shanghai" !!







FEATURES:



The water tube type, burner on top design minimizes carryover and produces dry 99+% saturated steam in 5 minutes or less from a cold start. Faster start-up means less fuel used, greater savings, and more responsible use of precious natural resources.



Ultra Compact Design Saves Space and Costs



LSS boilers occupy 33% less floor space than LWS boilers, and do not require tube pull space. Compact design means much smaller radiation losses and larger fuel savings.





Full Steam Output Within Five Minutes



Floating headers mean fast start-up. T·SUN LSS boilers produce fast steam in 5 minutes or less from a cold start-up. LWS boilers require from 1 to 1.5 hour start-up times. T·SUN’s unique design yields significant time and fuel savings.





Dry Steam



The T·SUN LSS design minimizes carryover and produces dry 99+% saturated steam through a 3-stage process:

  1. Initial separation in the tubes
  2. Second separation in the upper header and baffle plate
  3. Final separation in the cyclone separator.

POPULAR ALL OVER THE WORLD:

Customers in China: DUPONT, VEOLIA, MILLIPORE, Panasonic, TCL, CGET, LONHON, SEA-LION, etc





Customers in 113 countries & regions:



Europe: U.K., Germany, Belgium, Holland, Sweden, Norway, Spain, Russia, Hungary, Romania, Bulgaria, Lithuania, Estonia, Slovenia, Slovakia, Ukraine, Georgia



America: U.S.A., Canada, Mexico, El Salvador, Costa Rica, Nicaragua, Jamaica, Colombia, Brazil, Argentina, Ecuador, Chile, Paraguay, Saint Lucia, Netherlands Antilles, Peru



Africa: South Africa, Egypt, Algeria, Niger, Nigeria, Senegal, D.R.Congo, Congo Brazzaville, Ghana, Tunisia, Botswana, Swaziland, Uganda, Zimbabwe, Sudan, Ethiopia, Zambia, Tanzania, Kenya, Angola, Gabon, Mozambique, Madagascar, Lesotho



Asia: China, Japan, Singapore, Malaysia, Philippines, Indonesia, Thailand, Myanmar, Vietnam, North Korea, South Korea, Mongolia, India, Sri Lanka, Maldives, Pakistan, Turkmenistan, Kyrgyzstan, Uzbekistan, Kazakhstan, U.A.E. , Saudi Arabia, Kuwait, Qatar, Iraq, Israel, Lebanon, Turkey, Jordan



Oceania: Australia, New Zealand, Papua New Guinea





FACTORY ASSURANCE:

  1. One year parts warranty
  2. Spare parts available at ex-factory price
  3. Different voltage available
  4. 100% tested before delivery
  5. Minimum installation on site, electrical hook up, water pipe connection, steam pipe connection and drain only
  6. Skid-mounted complete system available
  7. Complete system in container available

SPECIFICATIONS:



Model

Items

LSS0.03-0.4-Y/Q

LSS0.05-0.7-Y/Q

LSS0.1-0.7-Y/Q

LSS0.2-0.7-Y/Q

LSS0.3-0.7-Y/Q

Boiler horsepower

1.9 HP

3.2 HP

6.4 HP

12.8 HP

19 HP

Rated steam output

30 KG/HOUR

50 KG/HOUR

100 KG/HOUR

200 KG/HOUR

300 KG/HOUR

Maximum working pressure

(manual reset)

<0.4MPa / 58PSI

<0.7MPa / 102PSI

<0.7MPa / 102PSI

<0.7MPa / 102PSI

<0.7MPa / 102PSI

Saturated steam temperature

<140°C

<172°C

<172°C

<172°C

<172°C

Material of main body

20# carbon steel

20# carbon steel

20# carbon steel

20# carbon steel

20# carbon steel

Thickness of main body

6mm

8mm

8mm

10mm

10mm

Thermal efficiency

>89%

>89%

>89%

>89%

>89%

Fuel consumption

0# diesel

2kg/h

3.4kg/h

6.8kg/h

13.6kg/h

20.2kg/h

Natural gas

2.4Nm3/h

4Nm3/h

8Nm3/h

16Nm3/h

24Nm3/h

LPG

1.6kg/h

2.7kg/h

5.4kg/h

10.8kg/h

16kg/h

Dimensions after installation

Φ

780mm

820mm

980mm

1050mm

1050mm

H

1150mm

1290mm

1810mm

1990mm

1990mm

Packing dimensions

L

650mm

900mm

890mm

950mm

950mm

W

850mm

770mm

1050mm

1050mm

1050mm

H

1150mm

1300mm

1700mm

1940mm

1940mm





PICTURES:

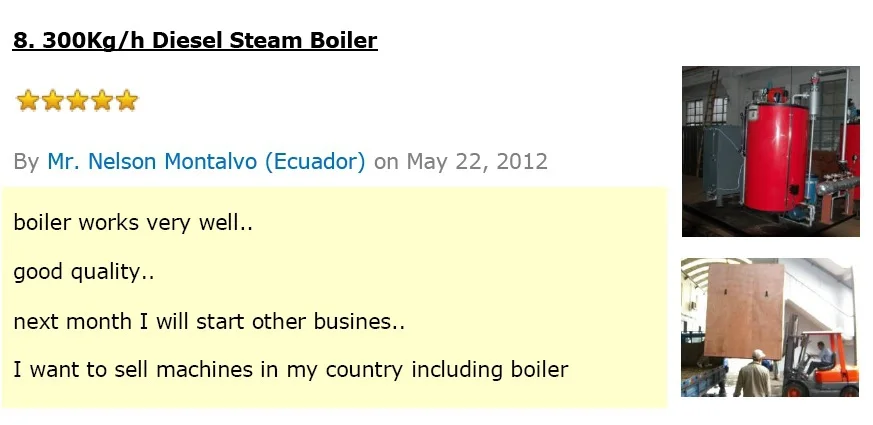

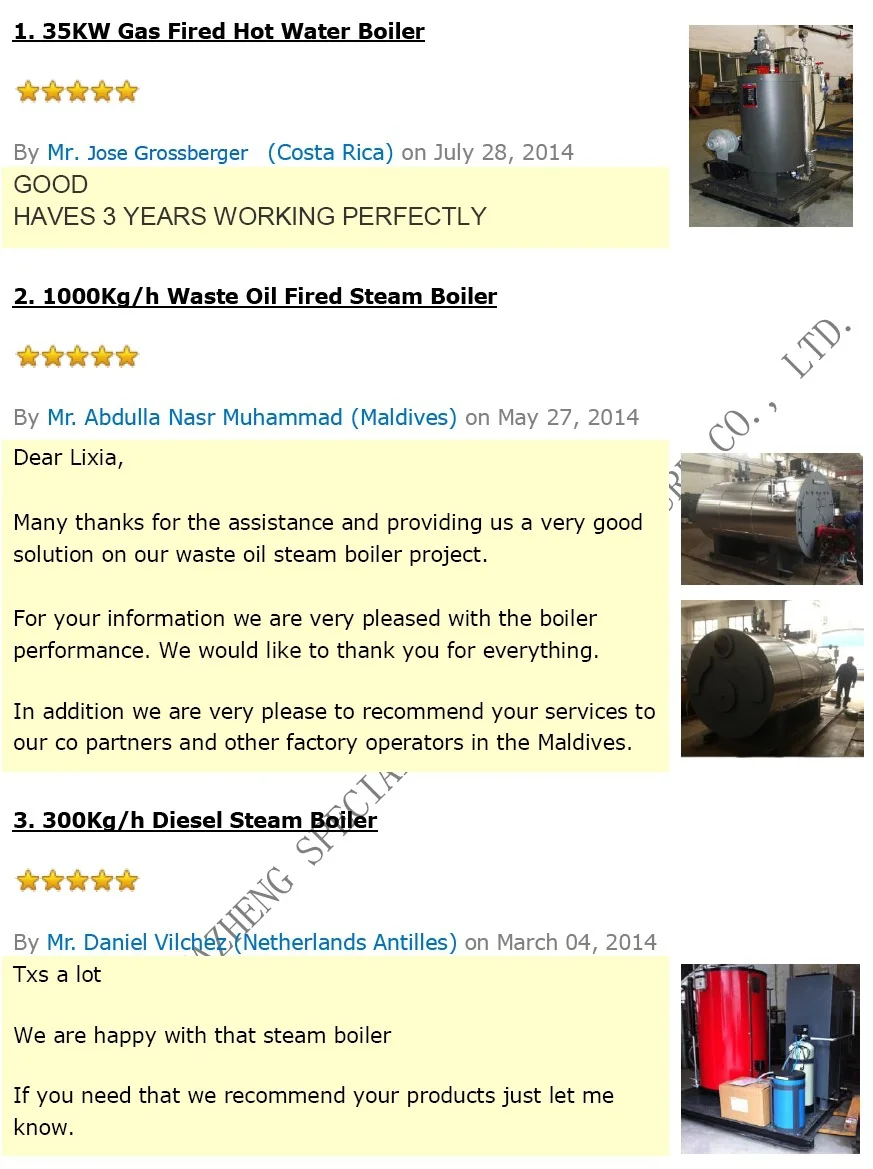

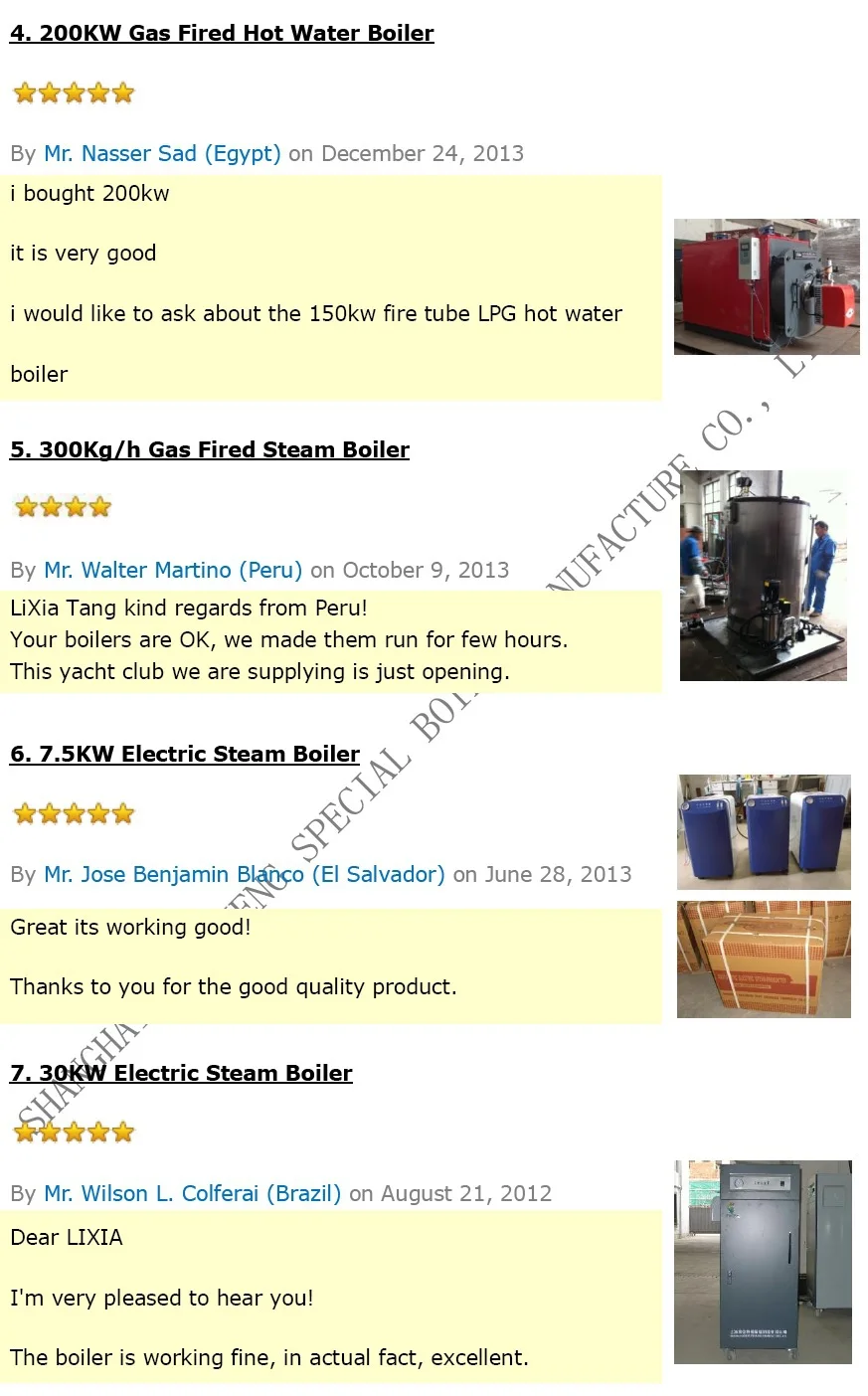

Customer's comment



Our Services
On-site commissioning service 2018:
July 2 ~ 4, in Taiwan;

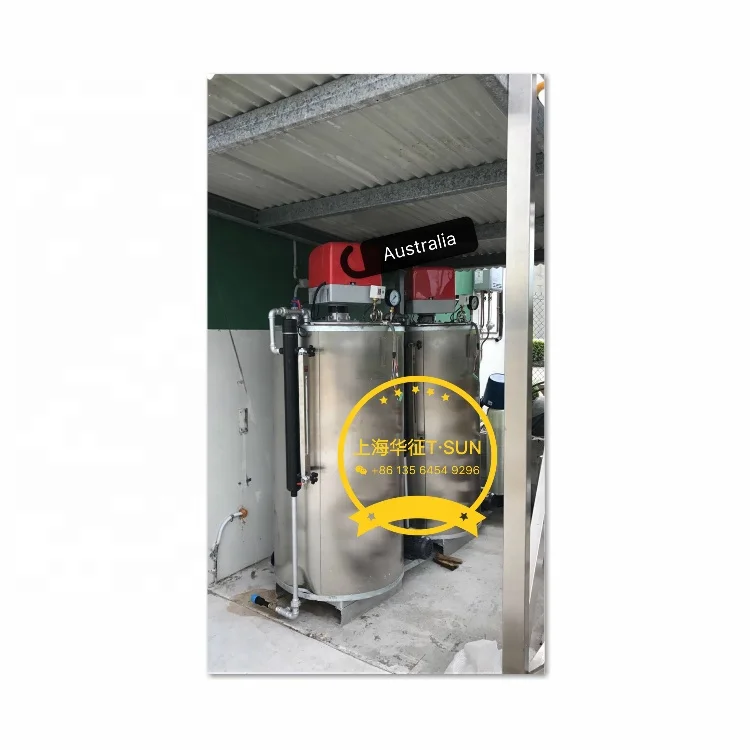

May 14 ~ 19, in Australia;
March 18 ~ 22, in Saipan
