Configuration: | Stationary; | Cooling method: | Air Cooling/Water Cooling; |
Condition: | New; | Capacity: | 13.0-25.9m3/min; |

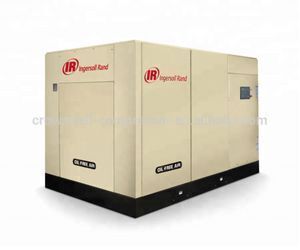

Supply Ability: | 300 Set/Sets per Month Ingersoll Rand Sierra Oil Free Screw Air Compressor; | Product name: | Oil Free Screw Air Compressor; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Mute: | No; |
Type: | Screw; | Lubrication Style: | Oil-free; |
Certification: | ISO9001 CE; | Place of Origin: | Jiangsu China (Mainland); |
Voltage: | Customer's Requirement); | Packaging Detail: | Wooden Case; |
Weight: | 3275kg; | Brand Name: | Ingersoll Rand; |
Warranty: | 1 Year; | Port: | Shanghai; |
Payment Terms: | L/C,T/T; | Pressure: | 7bar 8.5bar 10bar; |
Dimension(L*W*H): | 2692*1588*2362; | Motor power: | 90KW 110KW 132KW 150KW; |
Power Source: | AC Power; |
90-160kW/125-250hp 50hz 60hz
37-300 kW (50-400 hp)
50 Hz Specifications | |||||||
50 Hz (37 – 300 kW) | |||||||
Nominal kW | Model SL FAD (m3/min) at 7.0 bar g | Model SM FAD (m3/min) at 8.5 bar g | Model SH FAD (m3/min) at 10.0 bar g |
Width mm |
Length mm |
Height mm |
Weight kg |
37 | 6.0 | 5.1 | N/A | 1,372 | 2,248 | 1,914 | 2,387/2,410* |
45 | 7.7 | 6.5 | N/A | 1,372 | 2,248 | 1,914 | 2,497/2,520* |
55 | 9.6 | 8.8 | 7.8 | 1,372 | 2,248 | 1,914 | 2,577/2,600* |
75 | 12.7 | 11.6 | 10.8 | 1,372 | 2,248 | 1,914 | 2,682/2,705* |
90 | 16.1 | 13.6 | 13.0 | 1,588 | 2,692 | 2,362/1,84* | 3,040/3,195* |
110 | 19.4 | 18.0 | 15.4 | 1,588 | 2,692 | 2,362/1,84* | 3,095/3,250* |
132 | 22.8 | 21.4 | 18.8 | 1,588 | 2,692 | 2,362/1,84* | 3,274/3,429* |
150 | 25.9 | 24.6 | 22.1 | 1,588 | 2,692 | 2,362/1,84* | 3,275/3,430* |
200 | 35.0 | 32.6 | 28.5 | 1,930 | 3,048 | 2,438/2,032* | 4,186 |
250 | 45.2 | 41.5 | 36.0 | 1,930 | 3,048 | 2,438/2,032* | 4,306 |
300 | 48.8 | 48.0 | 43.3 | 1,930 | 3,048 | 2,438/2,032* | 4,366 |
Crownwell Compressor (China) Co., Ltd.
Shanghai Crownwell Import & Export Co., Ltd.
No.8, Lane 800 Yanghui Rd., Shanghai 201314 China
C: 86.15900769420 www.crownwell-compressor.com Wechat: Crownwell-Shanghai
Crownwell is a professional company of industrial air compressors, air treatment, air compressor spare parts, Drilling machine and related spare parts. Crownwell has two business divisions, one is Crownwell own brand products, the other brands are Atlas Copco, Ingersoll Rand and Hanwha products.
Crownwell has been marketing industrial compressed air equipment to global market since 2006 and the main assembling plant covers more than 50,000 square meters and 320 employees. By the end of year 2017, Crownwell has supplied total 26000 compressors to over 82 countries. The scope of supply starts from the smallest compressors used by individuals to very large compressors used in heavy industrial applications.
Crownwell Shanghai started the business as a close partner of Atlas Copco and Ingersoll Rand since 2006, our sales team can provide you competitive price with high quality products, our customer supporting team will get all your orders fulfilled on time and provide you excellent aftersales service.
Our product range represents the most comprehensive portfolio of compressed air equipment offered for thousands of applications in the Oil, Textile, Food, Marine and many other industries. Our products consist of medium and high pressure reciprocating compressors, oil-injected screw compressors, oil free screw compressors, vane compressors, centrifugal compressors, portable compressors and drilling rigs.
Our mission is to bring China assembled compressors of good quality and service, with attractive price for all the customers all over the world. You are welcomed to be developed with Crownwell together for a fruitful future.
